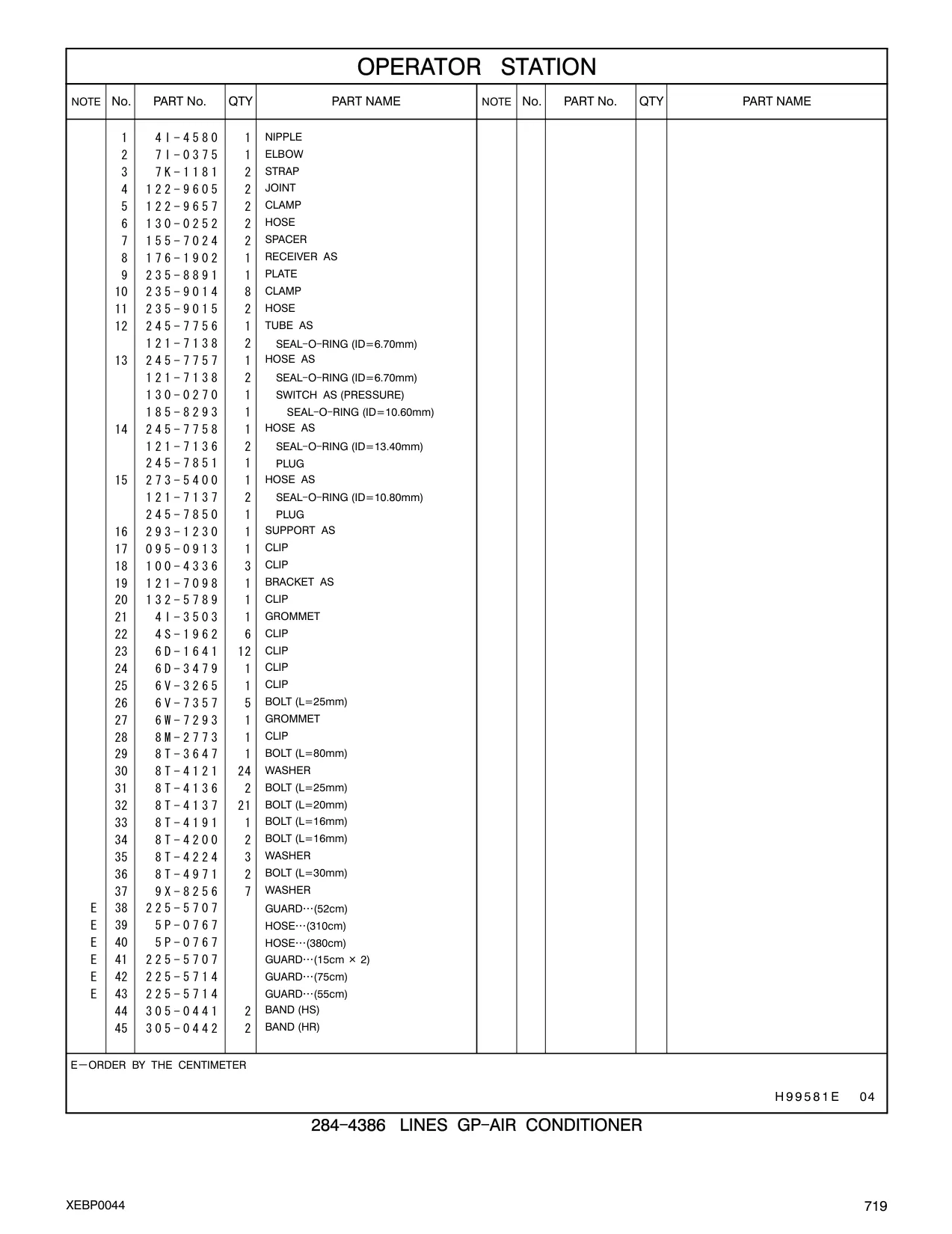

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4I-4580 |
NIPPLE
|
1 | 803 |
| 7I-0375 |
ELBOW
|
1 | 803 |
| 7K-1181 |
STRAP
|
2 | 803 |
| 122-9605 |
JOINT
|
2 | 803 |
| 122-9657 |
CLAMP
|
2 | 803 |
| 130-0252 |
HOSE
|
2 | 803 |
| 155-7024 |
SPACER
|
2 | 803 |
| 176-1902 |
RECEIVER AS
|
1 | 803 |
| 235-8891 |
PLATE
|
1 | 803 |
| 235-9014 |
CLAMP
|
8 | 803 |
| 235-9015 |
HOSE
|
2 | 803 |
| 245-7756 |
TUBE AS
|
1 | 803 |
| 121-7138 |
SEAL - O - RING (ID=6.70mm)
|
2 | 803 |
| 245-7757 |
HOSE AS
|
1 | 803 |
| 121-7138 |
SEAL - O - RING (ID=6.70mm)
|
2 | 803 |
| 130-0270 |
SWITCH AS (PRESSURE)
|
1 | 803 |
| 185-8293 |
SEAL - O - RING (ID=10.60mm)
|
1 | 803 |
| 245-7758 |
HOSE AS
|
1 | 803 |
| 121-7136 |
SEAL - O - RING (ID=13.40mm)
|
2 | 803 |
| 245-7851 |
PLUG
|
1 | 803 |
| 273-5400 |
HOSE AS
|
1 | 803 |
| 121-7137 |
SEAL - O - RING (ID=10.80mm)
|
2 | 803 |
| 245-7850 |
PLUG
|
1 | 803 |
| 293-1230 |
SUPPORT AS
|
1 | 803 |
| 095-0913 |
CLIP
|
1 | 803 |
| 100-4336 |
CLIP
|
3 | 803 |
| 121-7098 |
BRACKET AS
|
1 | 803 |
| 132-5789 |
CLIP
|
1 | 803 |
| 4I-3503 |
GROMMET
|
1 | 803 |
| 4S-1962 |
CLIP
|
6 | 803 |
| 6D-1641 |
CLIP
|
12 | 803 |
| 6D-3479 |
CLIP
|
1 | 803 |
| 6V-3265 |
CLIP
|
1 | 803 |
| 6V-7357 |
BOLT (L=25mm)
|
5 | 803 |
| 6W-7293 |
GROMMET
|
1 | 803 |
| 8T-3647 |
BOLT (L=80mm)
|
1 | 803 |
| 8T-4121 |
WASHER
|
24 | 803 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 803 |
| 8T-4137 |
BOLT (L=20mm)
|
21 | 803 |
| 8T-4191 |
BOLT (L=16mm)
|
1 | 803 |
| 8T-4200 |
BOLT (L=16mm)
|
2 | 803 |
| 8T-4224 |
WASHER
|
3 | 803 |
| 8T-4971 |
BOLT (L=30mm)
|
2 | 803 |
| 9X-8256 |
WASHER
|
7 | 803 |
| 225-5707 |
GUARD (52cm)
|
1 | 803 |
| 5P-0767 |
HOSE (310cm)
|
1 | 803 |
| 5P-0767 |
HOSE (380cm)
|
1 | 803 |
| 225-5707 |
GUARD (15cm 2)
|
1 | 803 |
| 225-5714 |
GUARD (75cm)
|
1 | 803 |
| 225-5714 |
GUARD (55cm)
|
1 | 803 |
