| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 0S-1588 |
BOLT
|
2 | 787 |
| 0S-1594 |
BOLT
|
1 | 787 |
| 6B-5072 |
BUSHING-TERMINAL
|
1 | 787 |
| 4K-8864 |
CLIP (14.2MM ID)
|
4 | 787 |
| 4L-5885 |
COVER-ELBOW
|
1 | 787 |
| 2P-7216 |
ELBOW
|
2 | 787 |
| 5J-7303 |
ELBOW (FLARED)
|
2 | 787 |
| 3S-1099 |
ELBOW-FLARED
|
2 | 787 |
| 3F-6166 |
EXTENSION
|
1 | 787 |
| 114-2396 |
FILM-GAUGE IDENTIFICATION
|
1 | 787 |
| 1A-9066 |
GASKET
|
1 | 787 |
| 6I-2118 |
GAUGE GP
|
1 | 787 |
| 2T-1590 |
HOSE AS
|
1 | 787 |
| 119-8891 |
HOSE AS
|
2 | 787 |
| 2G-7049 |
HOSE AS
|
1 | 787 |
| 5B-3254 |
NUT (7/16-20 THD)
|
2 | 787 |
| 9S-8752 |
NUT-FULL (3/8-16 THD)
|
2 | 787 |
| 3S-2093 |
STRAP-CABLE (1.75IN DIA)
|
5 | 787 |
| 5M-2894 |
WASHER (2.5MM THK)
|
5 | 787 |

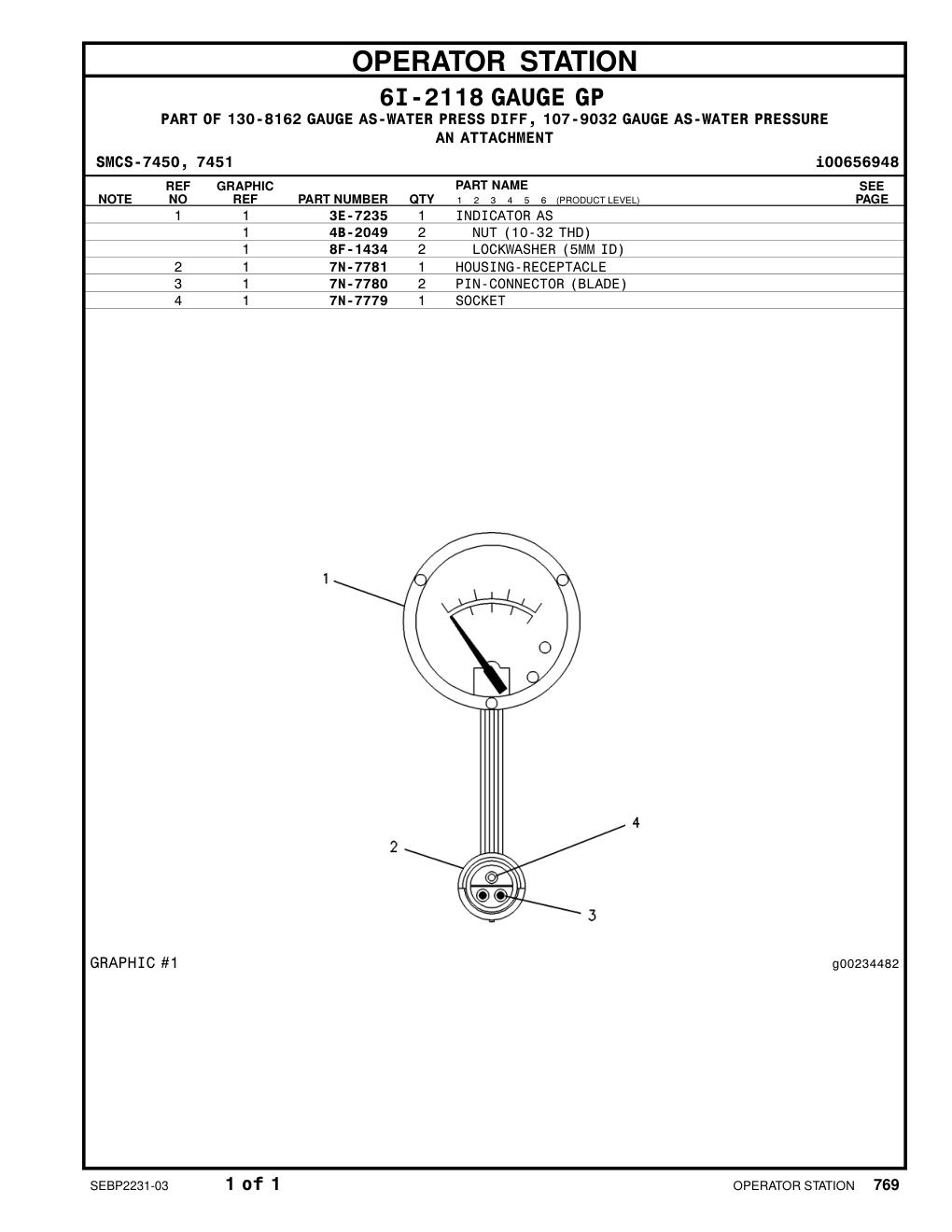

| 4B-2049 |
NUT (10-32 THD)
|
2 | 790 |
| 8F-1434 |
LOCKWASHER (5MM ID)
|
2 | 790 |
| 7N-7781 |
HOUSING-RECEPTACLE
|
1 | 790 |
| 7N-7780 |
PIN-CONNECTOR (BLADE)
|
2 | 790 |
| 7N-7779 |
SOCKET
|
1 | 790 |
