| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 9X-0262 |
ADAPTER
|
1 | 452 |
| 197-8391 |
SENSOR GP-TEMPERATURE (AIR INLET MANIFOLD)
|
1 | 452 |
| 197-8392 |
SENSOR GP-TEMPERATURE (COOLANT, WATER)
|
1 | 452 |
| 197-8393 |
SENSOR GP-PRESSURE (ATMOSPHERIC AIR)
|
1 | 452 |
| 197-8394 |
SENSOR GP-PRESSURE (ENGINE OIL)
|
1 | 452 |

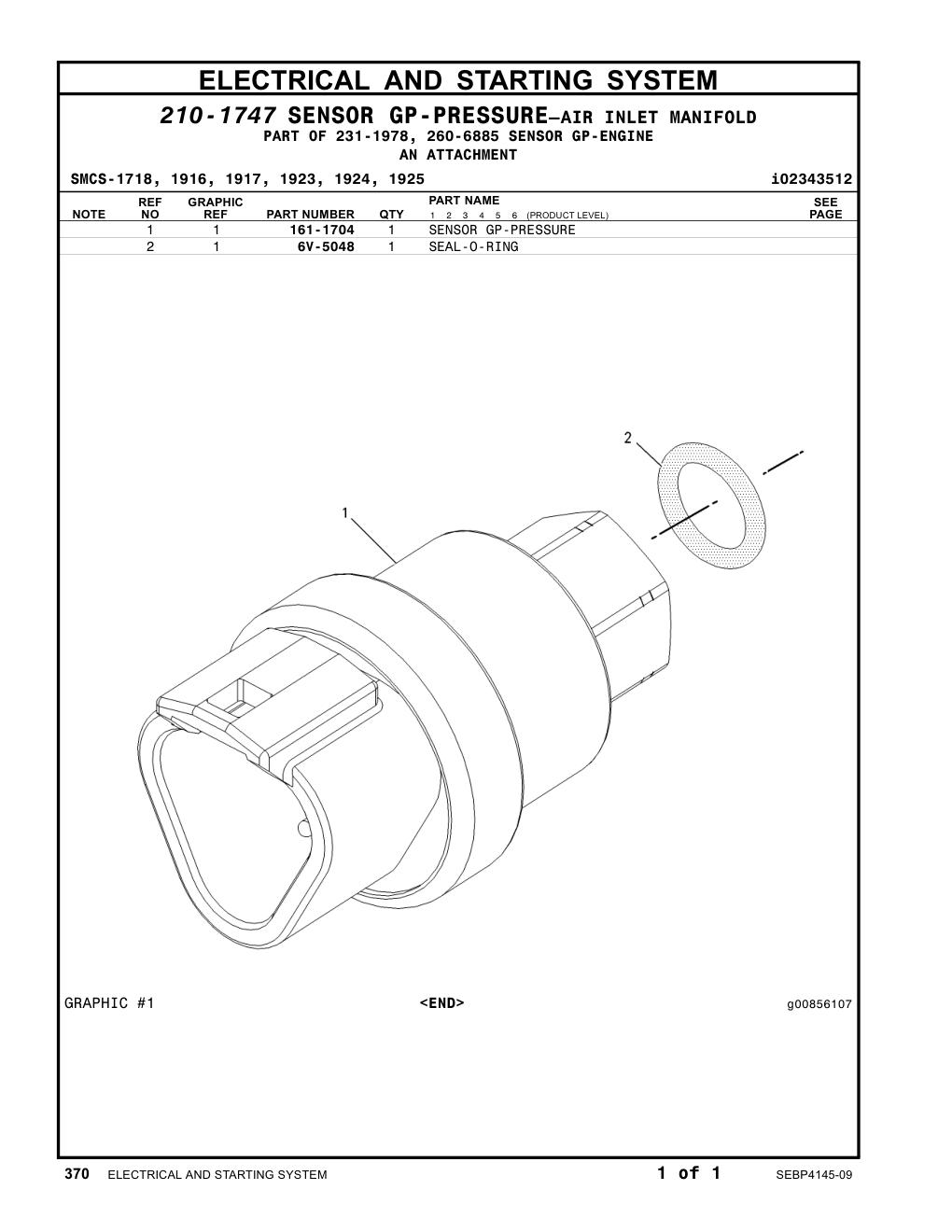

| 210-1747 |
SENSOR GP-PRESSURE (AIR INLET MANIFOLD)
|
1 | 452 |
| 236-6220 |
SENSOR GP-PRESSURE (INJECTION ACTUATION)
|
1 | 452 |
| 236-6221 |
SENSOR GP-SPEED (ENGINE SPEED, TIMING)
|
1 | 452 |
| 3E-4352 |
WASHER-HARD (8.8X20.5X2.5-MM THK)
|
1 | 452 |
| 6V-3940 |
BOLT (M8X1.25X25-MM)
|
1 | 452 |
| 6V-5048 |
SEAL-O-RING
|
1 | 452 |
| 6V-5049 |
SEAL-O-RING
|
1 | 452 |
| 9X-0261 |
ADAPTER
|
1 | 452 |
| 161-1703 |
SENSOR GP-PRESSURE
|
1 | 457 |
| 6V-5049 |
SEAL-O-RING
|
1 | 457 |
| 161-1705 |
SENSOR AS-PRESSURE
|
1 | 458 |
| 6V-5048 |
SEAL-O-RING
|
1 | 458 |
| 6V-5048 |
SEAL-O-RING
|
1 | 459 |
| 214-7567 |
SEAL-O-RING
|
1 | 461 |
| 224-4536 |
SENSOR GP-PRESSURE
|
1 | 461 |
| 203-3940 |
SEAL-O-RING
|
2 | 463 |
| 245-4630 |
SENSOR GP-SPEED
|
1 | 463 |
| 130-9811 |
SENSOR GP-TEMPERATURE (2-PIN)
|
1 | 465 |
| 8L-2786 |
SEAL-O-RING
|
1 | 465 |
| 130-9811 |
SENSOR GP-TEMPERATURE (2-PIN)
|
1 | 466 |
| 6V-6609 |
SEAL-O-RING
|
1 | 466 |
