| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

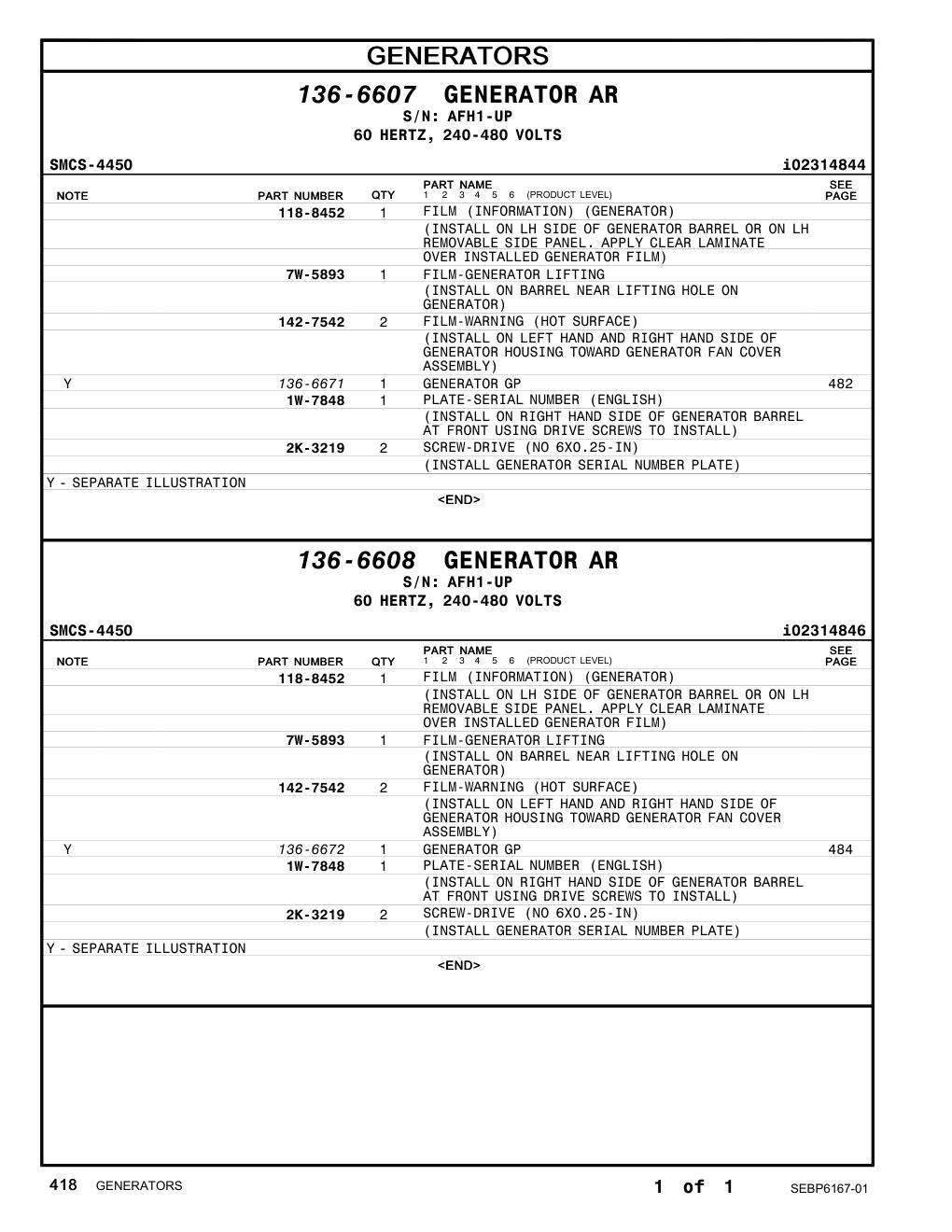

| 118-8452 |
FILM (INFORMATION) (GENERATOR) (INSTALL ON LH SIDE OF GENERATOR BARREL OR ON LH REMOVABLE SIDE PANEL. APPLY CLEAR LAMINATE OVER INSTALLED GENERATOR FILM)
|
1 | 440 |
| 7W-5893 |
FILM-GENERATOR LIFTING (INSTALL ON BARREL NEAR LIFTING HOLE ON GENERATOR)
|
1 | 440 |
| 142-7542 |
FILM-WARNING (HOT SURFACE) (INSTALL ON LEFT HAND AND RIGHT HAND SIDE OF GENERATOR HOUSING TOWARD GENERATOR FAN COVER ASSEMBLY)
|
2 | 440 |
| 1W-7848 |
PLATE-SERIAL NUMBER (ENGLISH) (INSTALL ON RIGHT HAND SIDE OF GENERATOR BARREL AT FRONT USING DRIVE SCREWS TO INSTALL)
|
1 | 440 |
| 2K-3219 |
SCREW-DRIVE (NO 6X0.25-IN) (INSTALL GENERATOR SERIAL NUMBER PLATE)
|
2 | 440 |
| 153-3179 |
STATOR AS
|
1 | 504 |
| 153-3189 |
ROTOR AS
|
1 | 504 |
| 2N-2030 |
FAN-VENT
|
1 | 504 |
| 4P-1798 |
DEFLECTOR-UPPER
|
1 | 504 |
| 4P-4532 |
DEFLECTOR-LOWER
|
1 | 504 |
| 7E-9592 |
COVER-DRIP
|
1 | 504 |
| 5P-0059 |
BOLT (5/16-18X6-IN)
|
4 | 504 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK) SPACER (9.25X13.72X50.8-MM THK)
|
17 | 504 |
| 5L-2087 |
5L-2087
|
4 | 504 |
| 4B-3388 |
BOLT (5/16-18X1.125-IN) SPACER (8.3X11.9X16.1-MM THK)
|
5 | 504 |
| 7E-3030 |
7E-3030
|
1 | 504 |
| 108-6950 |
ROTOR-EXCITER
|
1 | 504 |
| 108-6949 |
STATOR-EXCITER
|
1 | 504 |
| 4P-1775 |
BRACKET-BEARING
|
1 | 504 |
| 108-7822 |
RETAINER
|
2 | 504 |
| 5P-2955 |
BOLT (5/16-18X2.5-IN) WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 504 |
| 5P-0537 |
5P-0537
|
4 | 504 |
| 1B-2713 |
BOLT (1/4-20X1.75-IN) SPACER (20.6X77X27.8-MM THK)
|
4 | 504 |
| 4P-3153 |
4P-3153
|
1 | 504 |
| 290-5564 |
HEAT SINK AS
|
1 | 504 |
| 4P-1792 |
COVER AS-EXCITER
|
1 | 504 |
| 4M-5282 |
BOLT (1/4-20X1.5-IN)
|
4 | 504 |
| 108-8265 |
SCREEN AS BOLT (5/16-18X1.56-IN)
|
2 | 504 |
| 1B-9575 |
1B-9575
|
4 | 504 |
| 5M-6214 |
PLUG-PIPE
|
2 | 504 |
| 108-1468 |
PLATE-COUPLING
|
1 | 504 |
| 7L-5452 |
SHIM (0.8-MM THK) BOLT (7/8-9X2.5-IN)
|
2 | 504 |
| 8T-9400 |
8T-9400
|
8 | 504 |
| 5P-8249 |
WASHER-HARD (24X41.5X4-MM THK)
|
8 | 504 |
| 108-4396 |
STATOR AS-MAGNET
|
1 | 504 |
| 7E-8266 |
HOLDER AS-FUSE FUSE-CERAMIC (10-AMPERE)
|
2 | 504 |
| 9Y-6027 |
9Y-6027
|
2 | 504 |
| 108-5748 |
SLEEVE-SHAFT
|
1 | 504 |
| 108-5749 |
ROTOR (MAGNETIC)
|
1 | 504 |
