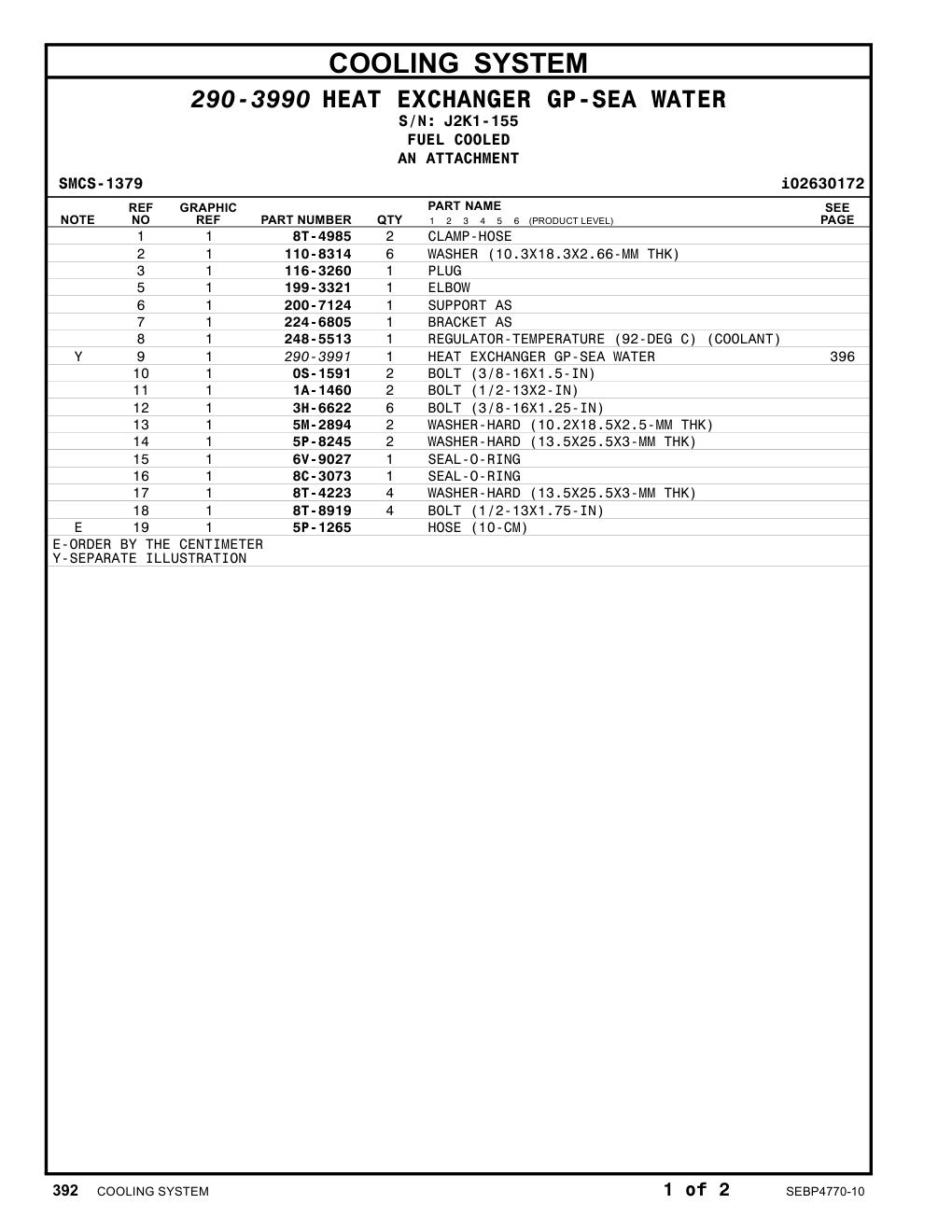

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 8T-4985 |
CLAMP-HOSE
|
2 | 422 |
| 110-8314 |
WASHER (10.3X18.3X2.66-MM THK)
|
6 | 422 |
| 116-3260 |
PLUG
|
1 | 422 |
| 199-3321 |
ELBOW
|
1 | 422 |
| 200-7124 |
SUPPORT AS
|
1 | 422 |
| 224-6805 |
BRACKET AS
|
1 | 422 |
| 248-5513 |
REGULATOR-TEMPERATURE (92-DEG C) (COOLANT)
|
1 | 422 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
2 | 422 |
| 1A-1460 |
BOLT (1/2-13X2-IN)
|
2 | 422 |
| 3H-6622 |
BOLT (3/8-16X1.25-IN)
|
6 | 422 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 422 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
2 | 422 |
| 6V-9027 |
SEAL-O-RING
|
1 | 422 |
| 8C-3073 |
SEAL-O-RING
|
1 | 422 |
| 8T-4223 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
4 | 422 |
| 8T-8919 |
BOLT (1/2-13X1.75-IN)
|
4 | 422 |
| 5P-1265 |
HOSE (10-CM)
|
1 | 422 |
| 2R-1005 |
STUD
|
1 | 424 |
| 101-3120 |
SPACER (10.5X25X20-MM THK)
|
2 | 424 |
| 199-3321 |
ELBOW
|
1 | 424 |
| 248-5513 |
REGULATOR-TEMPERATURE (92-DEG C) (COOLANT)
|
1 | 424 |
| 308-1427 |
BRACKET
|
1 | 424 |
| 308-1428 |
BRACKET (LH)
|
1 | 424 |
| 308-1429 |
SUPPORT
|
1 | 424 |
| 308-1432 |
BRACKET (RH)
|
1 | 424 |
| 308-9502 |
PLATE-SEAL
|
1 | 424 |
| 310-5510 |
SPACER (PLATE)
|
1 | 424 |
| 0L-2070 |
BOLT (3/8-16X2.25-IN)
|
2 | 424 |
| 0S-1571 |
BOLT (3/8-16X1.75-IN)
|
5 | 424 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
3 | 424 |
| 318-2946 |
PLUG AS
|
1 | 424 |
| 6V-9027 |
SEAL-O-RING
|
1 | 424 |
| 9S-4182 |
PLUG-O-RING
|
1 | 424 |
| 1A-1460 |
BOLT (1/2-13X2-IN)
|
1 | 424 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
1 | 424 |
| 3B-1915 |
BOLT (3/8-16X1.375-IN)
|
4 | 424 |
| 5F-4899 |
BOLT (3/8-16X5.5-IN)
|
2 | 424 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
11 | 424 |
| 5P-1076 |
WASHER-HARD (13.5X30X4-MM THK)
|
4 | 424 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
3 | 424 |
| 8C-3073 |
SEAL-O-RING
|
2 | 424 |
| 8T-4835 |
BOLT (1/2-13X2-IN)
|
4 | 424 |
| 8T-4985 |
CLAMP-HOSE
|
2 | 424 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
3 | 424 |
| 9X-6458 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
9 | 424 |
| 9X-8873 |
BOLT (1/2-13X2.25-IN)
|
2 | 424 |
| 5P-1265 |
HOSE (12-CM)
|
1 | 424 |
| 8T-2173 |
CONNECTOR-HOSE
|
1 | 426 |
| 116-3260 |
PLUG
|
1 | 426 |
| 125-5274 |
CAP-RADIATOR (SEA WATER HEAT EXCHANGER)
|
1 | 426 |
