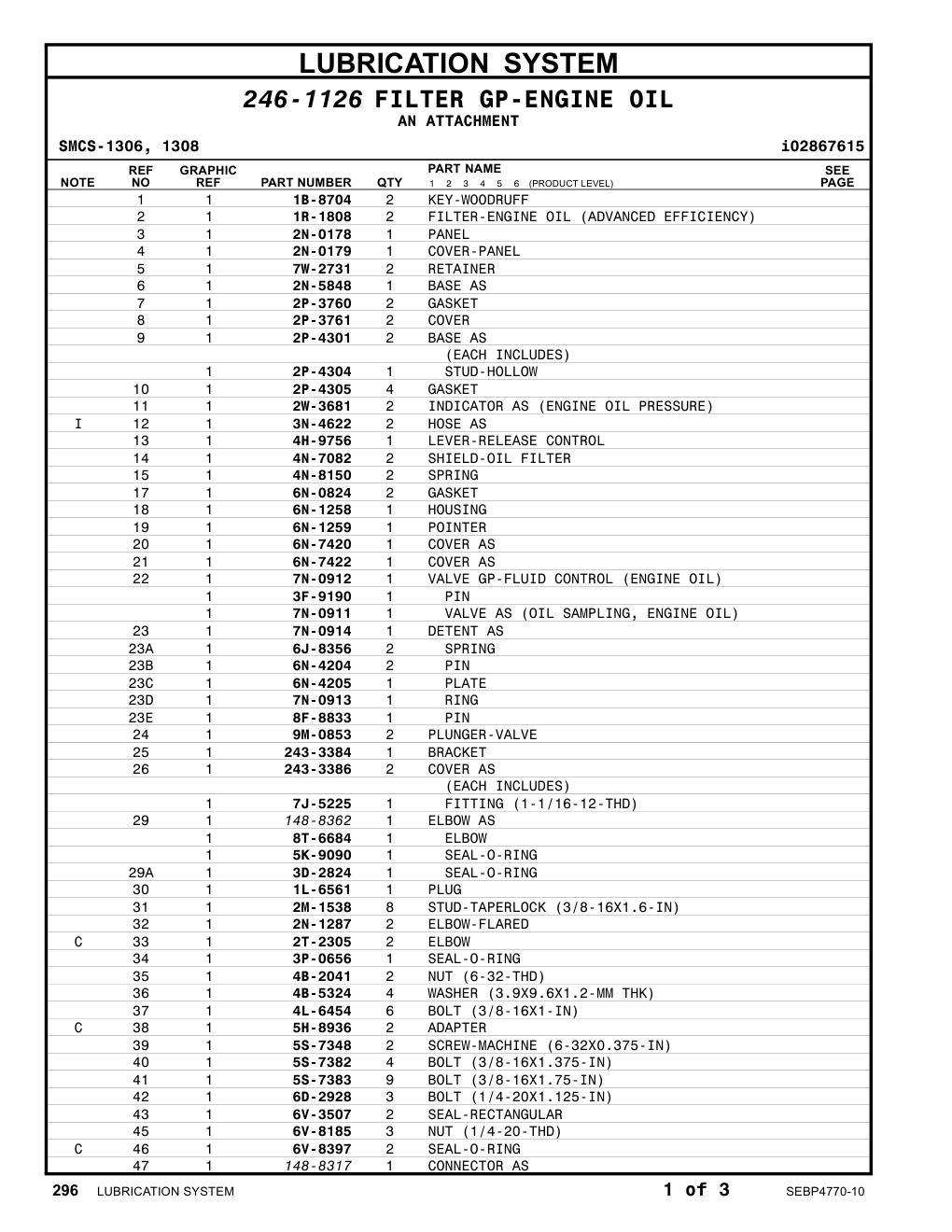

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1B-8704 |
KEY-WOODRUFF
|
2 | 326 |
| 1R-1808 |
FILTER-ENGINE OIL (ADVANCED EFFICIENCY)
|
2 | 326 |
| 2N-0178 |
PANEL
|
1 | 326 |
| 2N-0179 |
COVER-PANEL
|
1 | 326 |
| 7W-2731 |
RETAINER
|
2 | 326 |
| 2N-5848 |
BASE AS
|
1 | 326 |
| 2P-3760 |
GASKET
|
2 | 326 |
| 2P-3761 |
COVER
|
2 | 326 |
| 2P-4301 |
BASE AS (EACH INCLUDES)
|
2 | 326 |
| 2P-4304 |
STUD-HOLLOW
|
1 | 326 |
| 2P-4305 |
GASKET
|
4 | 326 |
| 2W-3681 |
INDICATOR AS (ENGINE OIL PRESSURE)
|
2 | 326 |
| 3N-4622 |
HOSE AS
|
2 | 326 |
| 4H-9756 |
LEVER-RELEASE CONTROL
|
1 | 326 |
| 4N-7082 |
SHIELD-OIL FILTER
|
2 | 326 |
| 4N-8150 |
SPRING
|
2 | 326 |
| 6N-0824 |
GASKET
|
2 | 326 |
| 6N-1258 |
HOUSING
|
1 | 326 |
| 6N-1259 |
POINTER
|
1 | 326 |
| 6N-7420 |
COVER AS
|
1 | 326 |
| 6N-7422 |
COVER AS
|
1 | 326 |
| 7N-0912 |
VALVE GP-FLUID CONTROL (ENGINE OIL)
|
1 | 326 |
| 3F-9190 |
PIN
|
1 | 326 |
| 7N-0911 |
VALVE AS (OIL SAMPLING, ENGINE OIL)
|
1 | 326 |
| 7N-0914 |
DETENT AS
|
1 | 326 |
| 6J-8356 |
SPRING
|
2 | 326 |
| 6N-4204 |
PIN
|
2 | 326 |
| 6N-4205 |
PLATE
|
1 | 326 |
| 7N-0913 |
RING
|
1 | 326 |
| 8F-8833 |
PIN
|
1 | 326 |
| 9M-0853 |
PLUNGER-VALVE
|
2 | 326 |
| 243-3384 |
BRACKET
|
1 | 326 |
| 243-3386 |
COVER AS (EACH INCLUDES)
|
2 | 326 |
| 7J-5225 |
FITTING (1-1/16-12-THD)
|
1 | 326 |
| 148-8362 |
ELBOW AS
|
1 | 326 |
| 8T-6684 |
ELBOW
|
1 | 326 |
| 5K-9090 |
SEAL-O-RING
|
1 | 326 |
| 3D-2824 |
SEAL-O-RING
|
1 | 326 |
| 1L-6561 |
PLUG
|
1 | 326 |
| 2M-1538 |
STUD-TAPERLOCK (3/8-16X1.6-IN)
|
8 | 326 |
| 2N-1287 |
ELBOW-FLARED
|
2 | 326 |
| 2T-2305 |
ELBOW
|
2 | 326 |
| 3P-0656 |
SEAL-O-RING
|
1 | 326 |
| 4B-2041 |
NUT (6-32-THD)
|
2 | 326 |
| 4B-5324 |
WASHER (3.9X9.6X1.2-MM THK)
|
4 | 326 |
| 4L-6454 |
BOLT (3/8-16X1-IN)
|
6 | 326 |
| 5H-8936 |
ADAPTER
|
2 | 326 |
| 5S-7348 |
SCREW-MACHINE (6-32X0.375-IN)
|
2 | 326 |
| 5S-7382 |
BOLT (3/8-16X1.375-IN)
|
4 | 326 |
| 5S-7383 |
BOLT (3/8-16X1.75-IN)
|
9 | 326 |
