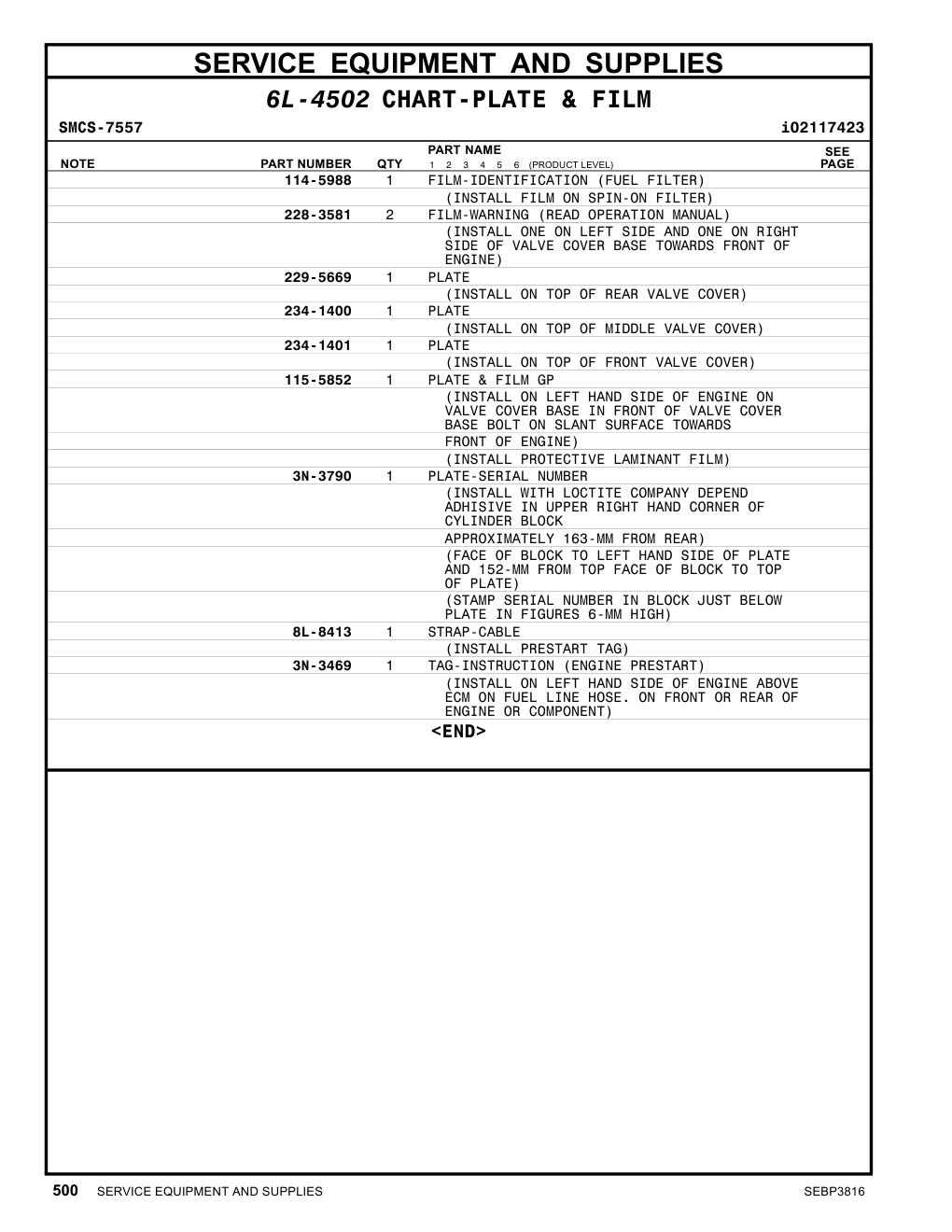

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 228-3581 |
FILM-WARNING (READ OPERATION MANUAL) (INSTALL ONE ON LEFT SIDE AND ONE ON RIGHT SIDE OF VALVE COVER BASE TOWARDS FRONT OF ENGINE)
|
2 | 601 |
| 229-5669 |
PLATE (INSTALL ON TOP OF REAR VALVE COVER)
|
1 | 601 |
| 234-1400 |
PLATE (INSTALL ON TOP OF MIDDLE VALVE COVER)
|
1 | 601 |
| 234-1401 |
PLATE (INSTALL ON TOP OF FRONT VALVE COVER)
|
1 | 601 |
| 115-5852 |
PLATE & FILM GP (INSTALL ON LEFT HAND SIDE OF ENGINE ON VALVE COVER BASE IN FRONT OF VALVE COVER BASE BOLT ON SLANT SURFACE TOWARDS FRONT OF ENGINE) (INSTALL PROTECTIVE LAMINANT FILM)
|
1 | 601 |
| 3N-3790 |
PLATE-SERIAL NUMBER (INSTALL WITH LOCTITE COMPANY DEPEND ADHISIVE IN UPPER RIGHT HAND CORNER OF CYLINDER BLOCK APPROXIMATELY 163-MM FROM REAR) (FACE OF BLOCK TO LEFT HAND SIDE OF PLATE AND 152-MM FROM TOP FACE OF BLOCK TO TOP OF PLATE) (STAMP SERIAL NUMBE
|
1 | 601 |
| 8L-8413 |
STRAP-CABLE (INSTALL PRESTART TAG)
|
1 | 601 |
| 3N-3469 |
TAG-INSTRUCTION (ENGINE PRESTART) (INSTALL ON LEFT HAND SIDE OF ENGINE ABOVE ECM ON FUEL LINE HOSE. ON FRONT OR REAR OF ENGINE OR COMPONENT)
|
1 | 601 |
