| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 356-2194 |
ENGINE AR-CORE
|
1 | 22 |
| 343-1942 |
PLATE & FILM GP
|
1 | 22 |
| 257-3199 |
ELECTRONICS GP-ENGINE RATINGS
|
1 | 22 |
| 285-0823 |
COVER
|
1 | 43 |
| 307-2671 |
PLUG AS
|
1 | 43 |
| 9S-8002 |
PLUG-O-RING
|
1 | 43 |
| 214-7566 |
SEAL-O-RING
|
1 | 43 |
| 1F-7958 |
NUT-FULL (1/2-13-THD)
|
3 | 43 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
3 | 43 |
| 353-5126 |
PLUG AS
|
1 | 43 |
| 6V-6609 |
SEAL-O-RING
|
1 | 43 |
| 9S-8005 |
PLUG-O-RING
|
1 | 43 |
| 117-8801 |
SEAL-O-RING
|
1 | 43 |
| 307-2673 |
PLUG AS
|
1 | 43 |
| 238-5080 |
SEAL-O-RING
|
1 | 43 |
| 126-4935 |
SEAL-INTEGRAL
|
1 | 44 |
| 160-7037 |
SEAL-INTEGRAL
|
1 | 44 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
4 | 44 |
| 145-3849 |
COVER
|
1 | 44 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
2 | 44 |
| 4W-9890 |
COVER
|
1 | 44 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
6 | 44 |
| 160-7037 |
SEAL-INTEGRAL
|
1 | 45 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
2 | 45 |
| 4W-9890 |
COVER
|
1 | 45 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 45 |
| 9Y-6089 |
GASKET
|
1 | 46 |
| 0S-1589 |
BOLT (5/8-11X1.75-IN)
|
3 | 46 |
| 4D-3704 |
WASHER-HARD (17X30X5-MM THK)
|
3 | 46 |
| 4N-1114 |
COVER
|
1 | 46 |
| 297-1813 |
SCREW-HEAD
|
12 | 47 |
| 175-1367 |
SPACER (8.8X16X10-MM THK) (MARKED X)
|
2 | 47 |
| 209-3569 |
COVER GP-FRONT HOUSING
|
1 | 47 |
| 160-7271 |
SEAL
|
1 | 47 |
| 031-4155 |
LOCKNUT (5/16-18-THD) (MARKED X)
|
2 | 47 |
| 175-1366 |
STUD (MARKED X)
|
2 | 47 |
| 163-4565 |
SEAL-O-RING (MARKED X)
|
2 | 47 |
| 237-4332 |
COVER AS
|
1 | 48 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
3 | 48 |
| 0T-0055 |
BOLT (3/8-16X4.25-IN)
|
3 | 48 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
2 | 48 |
| 1A-5964 |
BOLT (3/8-16X4.5-IN)
|
2 | 48 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
4 | 48 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
1 | 48 |
| 9X-6458 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
7 | 48 |

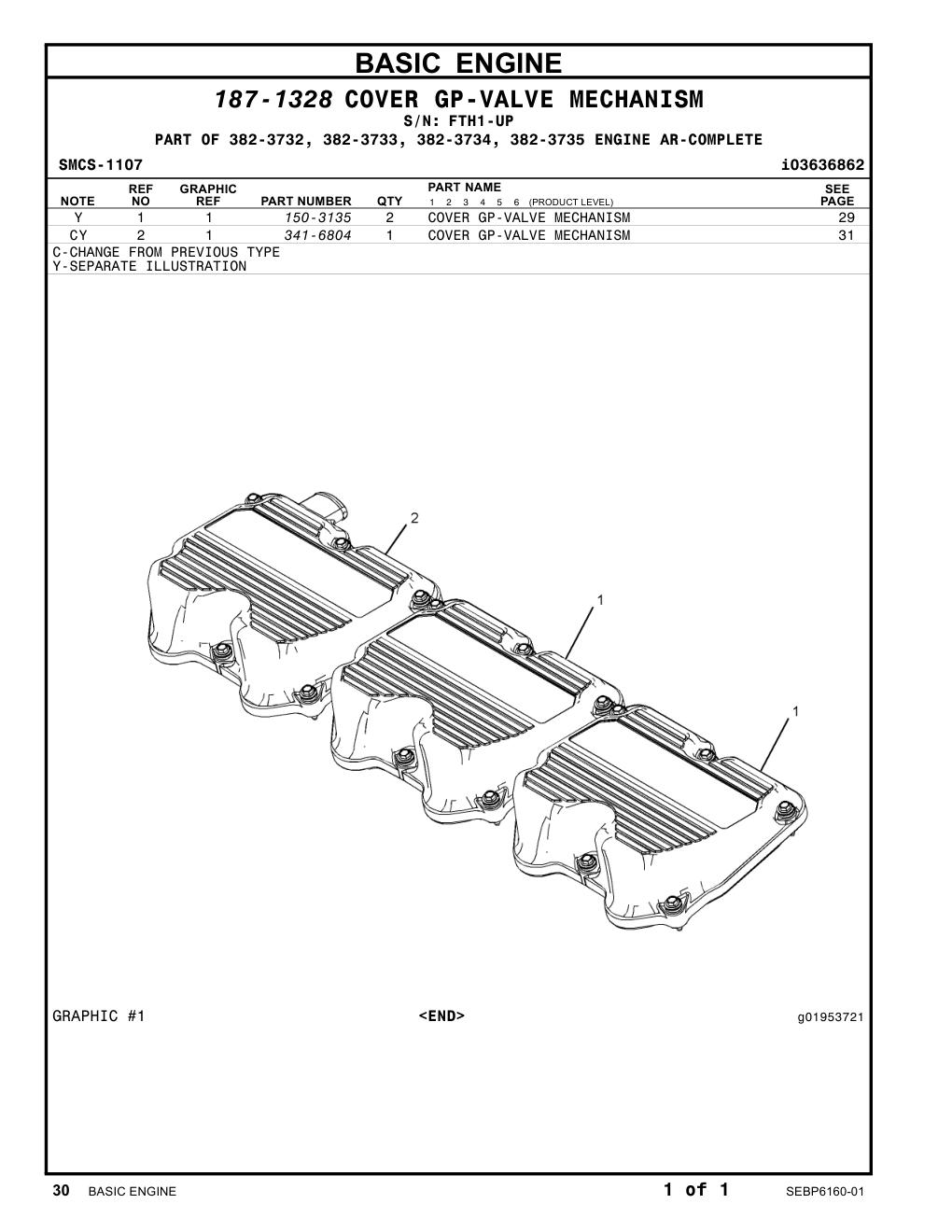

| 150-3135 |
COVER GP-VALVE MECHANISM
|
2 | 50 |
| 6N-7378 |
PULLEY-CRANKSHAFT (4-GROOVE)
|
1 | 62 |
| 213-3199 |
DAMPER AS
|
1 | 62 |
| 232-6560 |
ADAPTER
|
1 | 62 |
| 148-2871 |
BOLT (5/8-18X9-IN)
|
6 | 62 |
