| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 248-4841 |
CLAMP-BAND
|
1 | 483 |
| 250-8346 |
COVER
|
1 | 483 |

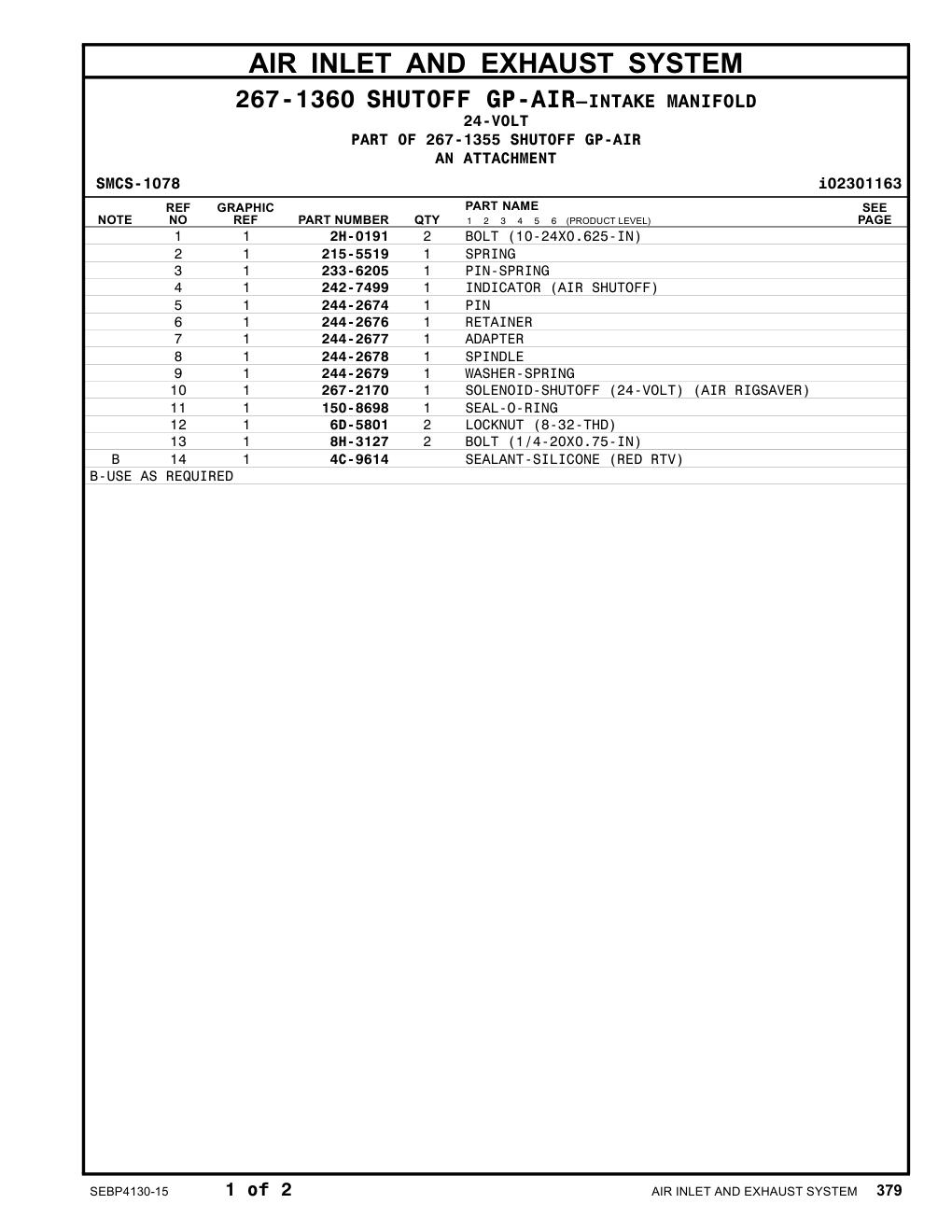

| 267-1360 |
SHUTOFF GP-AIR
|
1 | 483 |
| 6V-6353 |
SEAL-O-RING
|
1 | 483 |
| 2H-0191 |
BOLT (10-24X0.625-IN)
|
2 | 484 |
| 215-5519 |
SPRING
|
1 | 484 |
| 233-6205 |
PIN-SPRING
|
1 | 484 |
| 242-7499 |
INDICATOR (AIR SHUTOFF)
|
1 | 484 |
| 244-2674 |
PIN
|
1 | 484 |
| 244-2676 |
RETAINER
|
1 | 484 |
| 244-2677 |
ADAPTER
|
1 | 484 |
| 244-2678 |
SPINDLE
|
1 | 484 |
| 244-2679 |
WASHER-SPRING
|
1 | 484 |
| 150-8698 |
SEAL-O-RING
|
1 | 484 |
| 6D-5801 |
LOCKNUT (8-32-THD)
|
2 | 484 |
| 8H-3127 |
BOLT (1/4-20X0.75-IN)
|
2 | 484 |
| 4C-9614 |
SEALANT-SILICONE (RED RTV)
|
1 | 484 |
