| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1S-9593 |
STRAP-CABLE
|
13 | 211 |
| 2W-1836 |
ADAPTER
|
1 | 211 |
| 2W-7796 |
FILM-GAUGE (ENGINE COOLANT TEMPERATURE)
|
1 | 211 |
| 2W-7811 |
FILM-IDENTIFICATION (ENGINE OIL TEMPERATURE)
|
1 | 211 |
| 2W-9215 |
FILM-GAUGE (MANIFOLD AIR TEMPERATURE)
|
1 | 211 |
| 2W-9216 |
PLATE-AIR RESTRICTION
|
1 | 211 |
| 2W-9217 |
FILM-IDENTIFICATION (FUEL FILTER PRESSURE DIFF)
|
1 | 211 |
| 2W-9219 |
FILM-IDENTIFICATION (MANIFOLD PRESSURE)
|
1 | 211 |
| 3N-5986 |
FILM-IDENTIFICATION (ENGINE OIL PRESSURE)
|
1 | 211 |
| 3N-5988 |
PLATE-FUEL PRESS INFORMATION
|
1 | 211 |
| 3N-5989 |
FILM-INFORMATION (OIL FILTER PRESSURE DIFF)
|
1 | 211 |
| 3S-2093 |
STRAP-CABLE
|
30 | 211 |
| 4W-0506 |
GAUGE-PRESSURE (FUEL)
|
1 | 211 |
| 4B-2049 |
NUT (10-32-THD)
|
2 | 211 |
| 8F-1434 |
LOCKWASHER
|
2 | 211 |
| 4W-0506 |
GAUGE-PRESSURE (ENGINE OIL)
|
1 | 211 |
| 4W-0508 |
GAUGE-DIFFERENTIAL PRESSURE (FUEL FILTER)
|
1 | 211 |
| 4W-0508 |
GAUGE-DIFFERENTIAL PRESSURE (OIL FILTER)
|
1 | 211 |
| 4W-0510 |
GAUGE-PRESSURE (MANIFOLD)
|
1 | 211 |
| 4W-5318 |
INDICATOR AS-VACUUM (AIR PRESSURE RESTRICTION)
|
1 | 211 |
| 5B-3254 |
NUT-JAM (7/16-20-THD)
|
10 | 211 |
| 7C-4061 |
FILM-IDENTIFICATION (ENGINE CRANKCASE PRESSURE)
|
1 | 211 |
| 7C-4945 |
INDICATOR AS-PRESSURE
|
1 | 211 |
| 7W-2353 |
PLUG AS
|
2 | 211 |
| 9L-8493 |
CAP
|
2 | 211 |
| 192-3220 |
HOSE AS
|
4 | 211 |
| 192-3221 |
HOSE AS
|
4 | 211 |
| 192-3222 |
HOSE AS
|
1 | 211 |
| 192-3224 |
INDICATOR AS-TEMPERATURE (ENGINE COOLANT)
|
1 | 211 |
| 192-3224 |
INDICATOR AS-TEMPERATURE (ENGINE OIL)
|
1 | 211 |
| 198-1021 |
ENCLOSURE AS
|
1 | 211 |
| 144-0426 |
PANEL
|
1 | 211 |
| 200-6367 |
FILM
|
1 | 211 |
| 201-7833 |
TIE DOWN
|
1 | 211 |
| 208-7620 |
INDICATOR AS (MANIFOLD AIR)
|
1 | 211 |
| 009-2062 |
SEAL-O-RING
|
10 | 211 |
| 052-0572 |
TEE-SWIVEL
|
1 | 211 |
| 2P-1276 |
UNION (FLARED)
|
10 | 212 |
| 3S-1099 |
ELBOW-FLARED
|
7 | 212 |
| 5D-9231 |
CONNECTOR
|
2 | 212 |
| 6K-6967 |
ADAPTER-PIPE
|
1 | 212 |
| 8L-2786 |
SEAL-O-RING
|
1 | 212 |
| 7W-3055 |

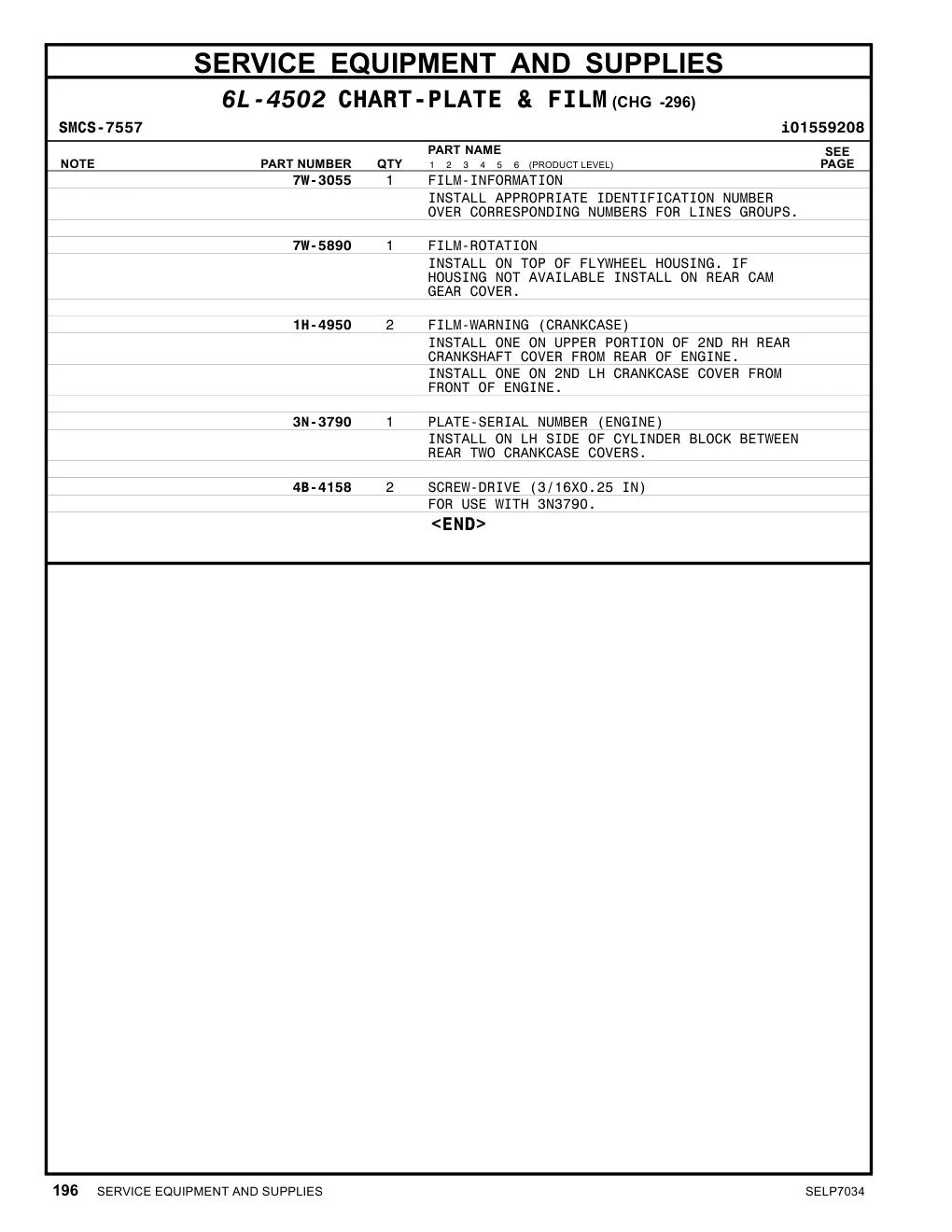

FILM-INFORMATION INSTALL APPROPRIATE IDENTIFICATION NUMBER OVER CORRESPONDING NUMBERS FOR LINES GROUPS.
|
1 | 215 |
| 7W-5890 |
FILM-ROTATION INSTALL ON TOP OF FLYWHEEL HOUSING. IF HOUSING NOT AVAILABLE INSTALL ON REAR CAM GEAR COVER.
|
1 | 215 |
| 3N-3790 |
PLATE-SERIAL NUMBER (ENGINE) INSTALL ON LH SIDE OF CYLINDER BLOCK BETWEEN REAR TWO CRANKCASE COVERS.
|
1 | 215 |
| 4B-4158 |
SCREW-DRIVE (3/16X0.25 IN) FOR USE WITH 3N3790.
|
2 | 215 |
| 6V-7074 |
RING-TOP
|
1 | 216 |
| 6V-7075 |
RING-BOTTOM
|
1 | 216 |
| 6V-7076 |
FOOT
|
2 | 216 |
| 6V-7077 |
LEG-PULLER
|
2 | 216 |
