| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 135-3308 |
BRACKET-MOUNTING
|
6 | 393 |
| 244-9685 |
SUPPORT-BUS
|
1 | 393 |
| 244-9686 |
BAR-BUS
|
3 | 393 |
| 5C-2890 |
NUT (M6X1-THD)
|
18 | 393 |
| 6V-7357 |
BOLT (M6X1X25-MM)
|
18 | 393 |
| 9X-8256 |
WASHER (6.6X12X2-MM THK)
|
36 | 393 |
| 135-3308 |
BRACKET-MOUNTING
|
2 | 394 |
| 244-9686 |
BAR-BUS
|
1 | 394 |
| 244-9694 |
SUPPORT-BUS
|
1 | 394 |
| 5C-2890 |
NUT (M6X1-THD)
|
6 | 394 |
| 6V-7357 |
BOLT (M6X1X25-MM)
|
6 | 394 |
| 9X-8256 |
WASHER (6.6X12X2-MM THK)
|
12 | 394 |

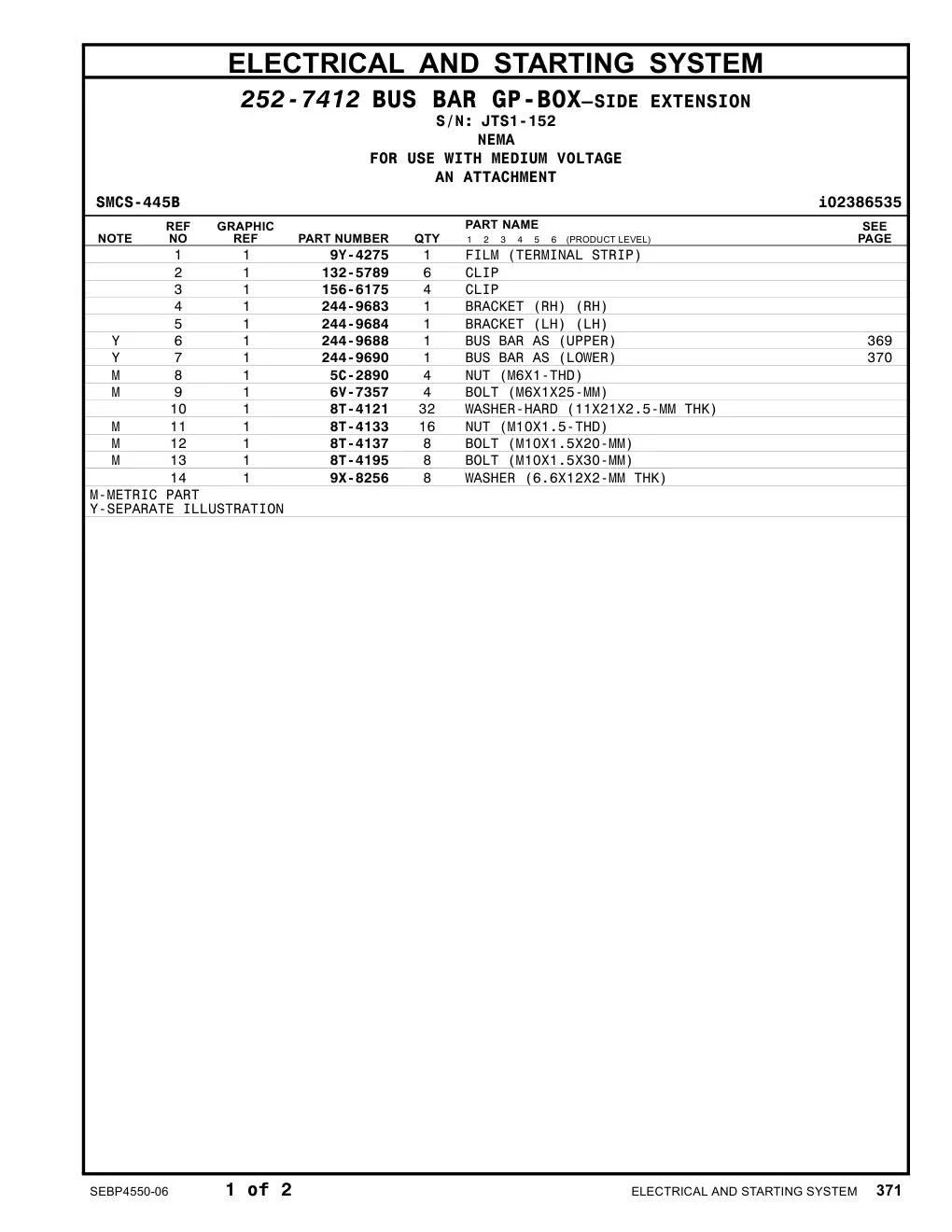

| 9Y-4275 |
FILM (TERMINAL STRIP)
|
1 | 395 |
| 132-5789 |
CLIP
|
6 | 395 |
| 156-6175 |
CLIP
|
4 | 395 |
| 244-9683 |
BRACKET (RH) (RH)
|
1 | 395 |
| 244-9684 |
BRACKET (LH) (LH)
|
1 | 395 |
| 244-9688 |
BUS BAR AS (UPPER)
|
1 | 395 |
| 244-9690 |
BUS BAR AS (LOWER)
|
1 | 395 |
| 5C-2890 |
NUT (M6X1-THD)
|
4 | 395 |
| 6V-7357 |
BOLT (M6X1X25-MM)
|
4 | 395 |
| 8T-4121 |
WASHER-HARD (11X21X2.5-MM THK)
|
32 | 395 |
| 8T-4137 |
BOLT (M10X1.5X20-MM)
|
8 | 395 |
| 8T-4195 |
BOLT (M10X1.5X30-MM)
|
8 | 395 |
| 9X-8256 |
WASHER (6.6X12X2-MM THK)
|
8 | 395 |
| 9Y-4275 |
FILM (TERMINAL STRIP)
|
1 | 397 |
| 132-5789 |
CLIP
|
6 | 397 |
| 135-3308 |
BRACKET-MOUNTING
|
8 | 397 |
| 156-6175 |
CLIP
|
4 | 397 |
| 244-9683 |
BRACKET (RH)
|
1 | 397 |
| 244-9684 |
BRACKET (LH)
|
1 | 397 |
| 244-9685 |
SUPPORT-BUS
|
1 | 397 |
| 244-9686 |
BAR-BUS
|
4 | 397 |
| 244-9694 |
SUPPORT-BUS
|
1 | 397 |
| 5C-2890 |
NUT (M6X1-THD)
|
28 | 397 |
| 6V-7357 |
BOLT (M6X1X25-MM)
|
28 | 397 |
| 8T-4121 |
WASHER-HARD (11X21X2.5-MM THK)
|
32 | 397 |
| 8T-4137 |
BOLT (M10X1.5X20-MM)
|
8 | 397 |
| 8T-4195 |
BOLT (M10X1.5X30-MM)
|
8 | 397 |
| 9X-8256 |
WASHER (6.6X12X2-MM THK)
|
56 | 397 |
