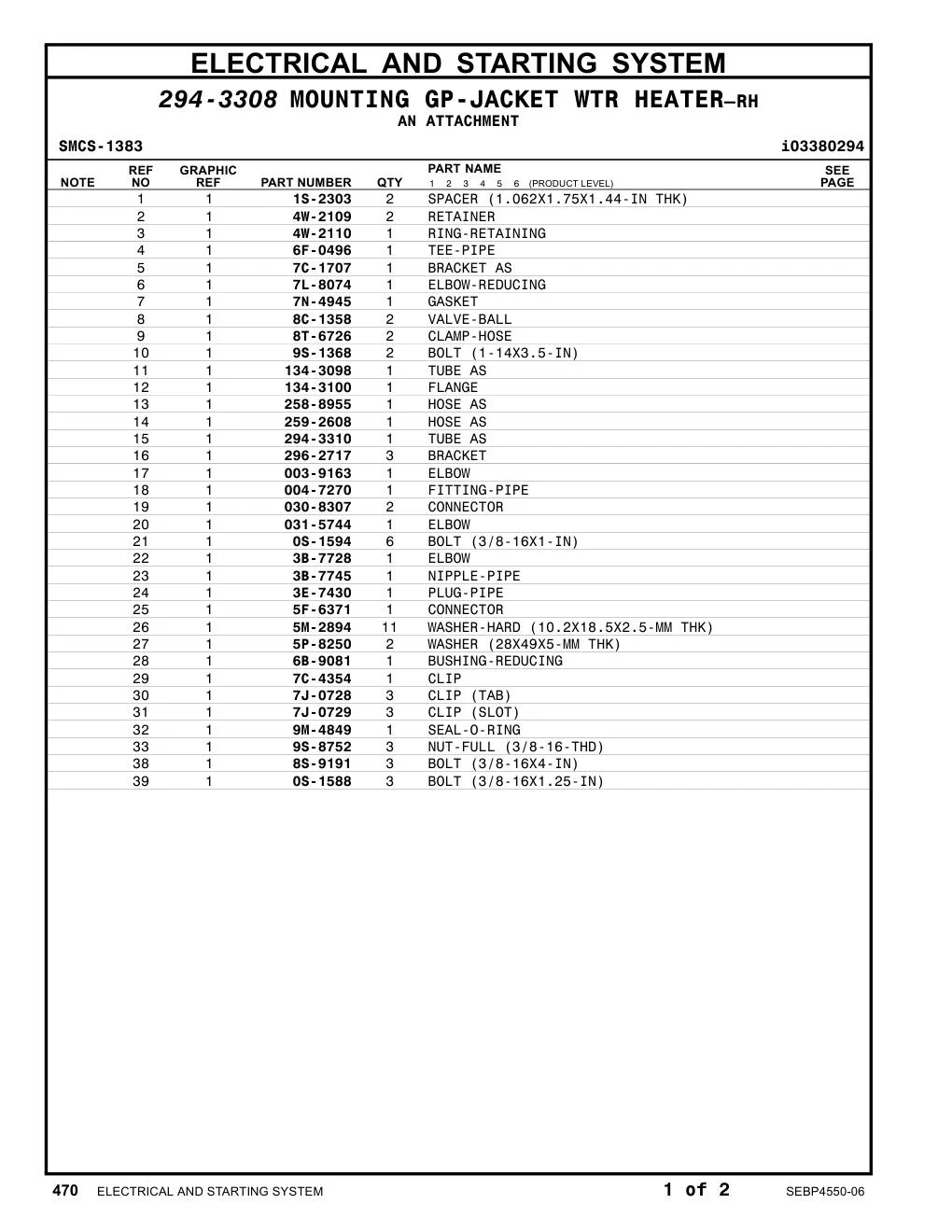

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1S-2303 |
SPACER (1.062X1.75X1.44-IN THK)
|
2 | 494 |
| 4W-2109 |
RETAINER
|
2 | 494 |
| 4W-2110 |
RING-RETAINING
|
1 | 494 |
| 6F-0496 |
TEE-PIPE
|
1 | 494 |
| 7C-1707 |
BRACKET AS
|
1 | 494 |
| 7L-8074 |
ELBOW-REDUCING
|
1 | 494 |
| 7N-4945 |
GASKET
|
1 | 494 |
| 8C-1358 |
VALVE-BALL
|
2 | 494 |
| 8T-6726 |
CLAMP-HOSE
|
2 | 494 |
| 9S-1368 |
BOLT (1-14X3.5-IN)
|
2 | 494 |
| 134-3098 |
TUBE AS
|
1 | 494 |
| 134-3100 |
FLANGE
|
1 | 494 |
| 258-8955 |
HOSE AS
|
1 | 494 |
| 259-2608 |
HOSE AS
|
1 | 494 |
| 296-2717 |
BRACKET
|
3 | 494 |
| 003-9163 |
ELBOW
|
1 | 494 |
| 004-7270 |
FITTING-PIPE
|
1 | 494 |
| 030-8307 |
CONNECTOR
|
2 | 494 |
| 031-5744 |
ELBOW
|
1 | 494 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
6 | 494 |
| 3B-7728 |
ELBOW
|
1 | 494 |
| 3B-7745 |
NIPPLE-PIPE
|
1 | 494 |
| 3E-7430 |
PLUG-PIPE
|
1 | 494 |
| 5F-6371 |
CONNECTOR
|
1 | 494 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
11 | 494 |
| 5P-8250 |
WASHER (28X49X5-MM THK)
|
2 | 494 |
| 6B-9081 |
BUSHING-REDUCING
|
1 | 494 |
| 7C-4354 |
CLIP
|
1 | 494 |
| 7J-0728 |
CLIP (TAB)
|
3 | 494 |
| 7J-0729 |
CLIP (SLOT)
|
3 | 494 |
| 9M-4849 |
SEAL-O-RING
|
1 | 494 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
3 | 494 |
| 8S-9191 |
BOLT (3/8-16X4-IN)
|
3 | 494 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
3 | 494 |
