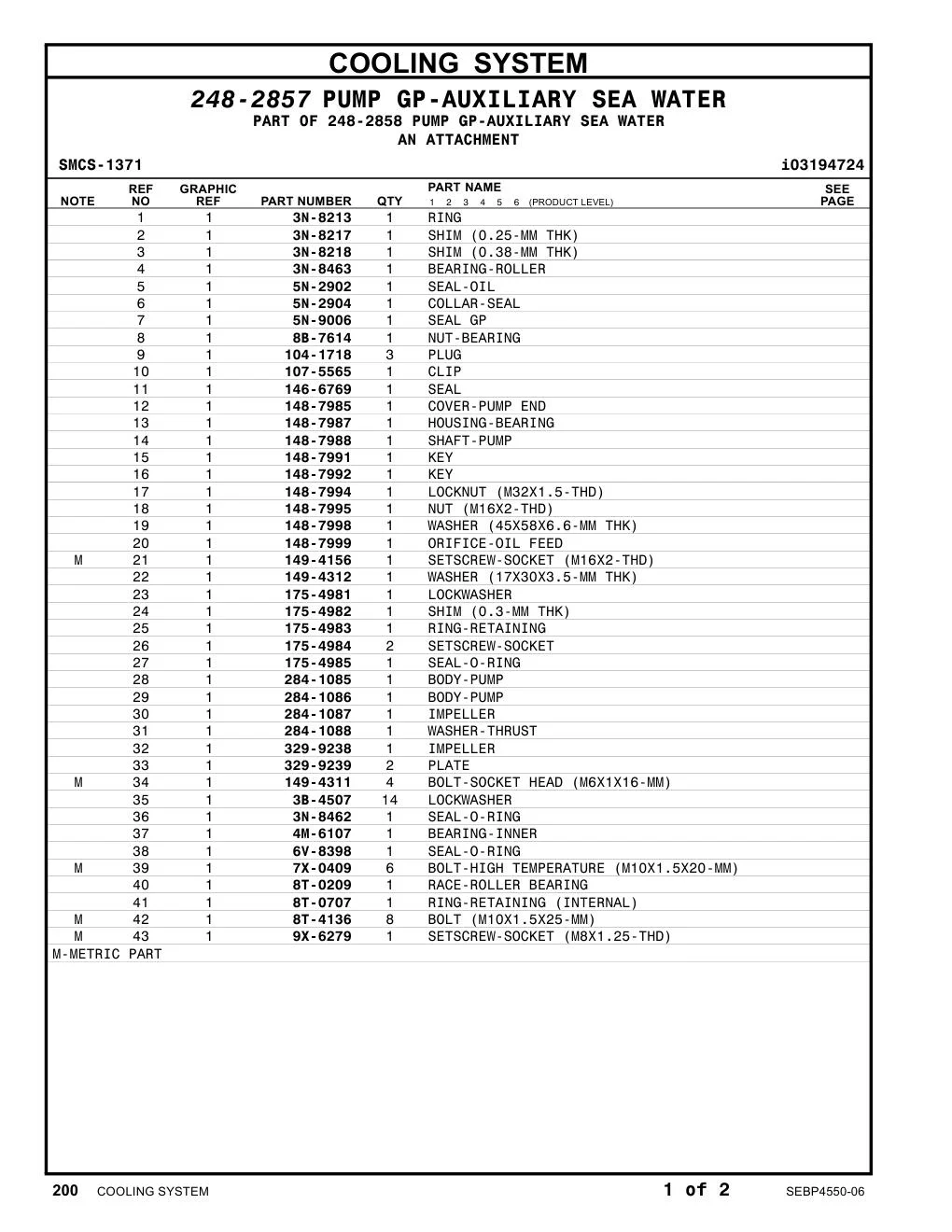

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 3N-8213 |
RING
|
1 | 224 |
| 3N-8217 |
SHIM (0.25-MM THK)
|
1 | 224 |
| 3N-8218 |
SHIM (0.38-MM THK)
|
1 | 224 |
| 3N-8463 |
BEARING-ROLLER
|
1 | 224 |
| 5N-2902 |
SEAL-OIL
|
1 | 224 |
| 5N-2904 |
COLLAR-SEAL
|
1 | 224 |
| 5N-9006 |
SEAL GP
|
1 | 224 |
| 8B-7614 |
NUT-BEARING
|
1 | 224 |
| 104-1718 |
PLUG
|
3 | 224 |
| 107-5565 |
CLIP
|
1 | 224 |
| 146-6769 |
SEAL
|
1 | 224 |
| 148-7985 |
COVER-PUMP END
|
1 | 224 |
| 148-7987 |
HOUSING-BEARING
|
1 | 224 |
| 148-7988 |
SHAFT-PUMP
|
1 | 224 |
| 148-7991 |
KEY
|
1 | 224 |
| 148-7992 |
KEY
|
1 | 224 |
| 148-7994 |
LOCKNUT (M32X1.5-THD)
|
1 | 224 |
| 148-7995 |
NUT (M16X2-THD)
|
1 | 224 |
| 148-7998 |
WASHER (45X58X6.6-MM THK)
|
1 | 224 |
| 148-7999 |
ORIFICE-OIL FEED
|
1 | 224 |
| 149-4156 |
SETSCREW-SOCKET (M16X2-THD)
|
1 | 224 |
| 149-4312 |
WASHER (17X30X3.5-MM THK)
|
1 | 224 |
| 175-4981 |
LOCKWASHER
|
1 | 224 |
| 175-4982 |
SHIM (0.3-MM THK)
|
1 | 224 |
| 175-4983 |
RING-RETAINING
|
1 | 224 |
| 175-4984 |
SETSCREW-SOCKET
|
2 | 224 |
| 175-4985 |
SEAL-O-RING
|
1 | 224 |
| 284-1085 |
BODY-PUMP
|
1 | 224 |
| 284-1086 |
BODY-PUMP
|
1 | 224 |
| 284-1088 |
WASHER-THRUST
|
1 | 224 |
| 329-9238 |
IMPELLER
|
1 | 224 |
| 329-9239 |
PLATE
|
2 | 224 |
| 149-4311 |
BOLT-SOCKET HEAD (M6X1X16-MM)
|
4 | 224 |
| 3B-4507 |
LOCKWASHER
|
14 | 224 |
| 3N-8462 |
SEAL-O-RING
|
1 | 224 |
| 4M-6107 |
BEARING-INNER
|
1 | 224 |
| 6V-8398 |
SEAL-O-RING
|
1 | 224 |
| 7X-0409 |
BOLT-HIGH TEMPERATURE (M10X1.5X20-MM)
|
6 | 224 |
| 8T-0209 |
RACE-ROLLER BEARING
|
1 | 224 |
| 8T-0707 |
RING-RETAINING (INTERNAL)
|
1 | 224 |
| 8T-4136 |
BOLT (M10X1.5X25-MM)
|
8 | 224 |
| 9X-6279 |
SETSCREW-SOCKET (M8X1.25-THD)
|
1 | 224 |
