| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 110-8714 |
END-WIRE (18-GA)
|
100 | 698 |
| 207-5432 |
TERMINAL (14-GA TO 16-GA)
|
8 | 698 |
| 232-0019 |
RECEPTACLE (46-PIN)
|
1 | 698 |
| 5P-2321 |
TERMINAL (14-GA TO 16-GA, NO. 6 SCREW)
|
3 | 698 |
| 2L-8075 |
TERMINAL (14-GA TO 16-GA, NO. 8 SCREW)
|
30 | 698 |
| 133-0970 |
RECEPTACLE AS (TEE)
|
1 | 698 |
| 134-2540 |
RECEPTACLE AS (3-PIN)
|
1 | 698 |
| 155-2255 |
KIT-CONNECTING PLUG (12-PIN) (INCLUDES PLUG AS AND WEDGE)
|
1 | 698 |
| 174-0503 |
KIT-CONNECTING PLUG (3-PIN) (EACH INCLUDES PLUG AS AND WEDGE)
|
4 | 698 |
| 233-9226 |
PIN-CONNECTOR (20-GA TO 16-GA)
|
41 | 698 |
| 8T-8737 |
PLUG-SEAL
|
2 | 698 |
| 233-9228 |
PLUG-SEAL
|
5 | 698 |
| 186-3736 |
SOCKET-CONNECTOR (16-GA TO 18-GA)
|
21 | 698 |
| 9W-0844 |
SOCKET-CONNECTOR (14-GA)
|
1 | 698 |
| 8L-8413 |
STRAP-CABLE
|
60 | 698 |
| 125-7874 |
TUBE-HEAT SHRINK (5.72-MM DIA) (105-CM)
|
1 | 698 |
| 119-3662 |
TUBE-HEAT SHRINK (10.85-MM DIA) (20-CM)
|
1 | 698 |
| 125-7875 |
TUBE-HEAT SHRINK (7.44-MM DIA) (5-CM)
|
1 | 698 |
| 155-2258 |
WEDGE-PLUG LOCK (12-PIN)
|
1 | 698 |
| 153-2707 |
CABLE-ELECTRICAL (19-GA)
|
1 | 698 |
| 6T-3631 |
NUT-HEX (15/32-32-THD)
|
2 | 842 |
| 6T-3632 |
LOCKWASHER
|
1 | 842 |
| 6T-3633 |
RING-LOCKING
|
1 | 842 |
| 6V-8374 |
SCREW-MACHINE (6-32X0.25-IN)
|
2 | 842 |
| 3L-8187 |
LOCKWASHER
|
2 | 842 |

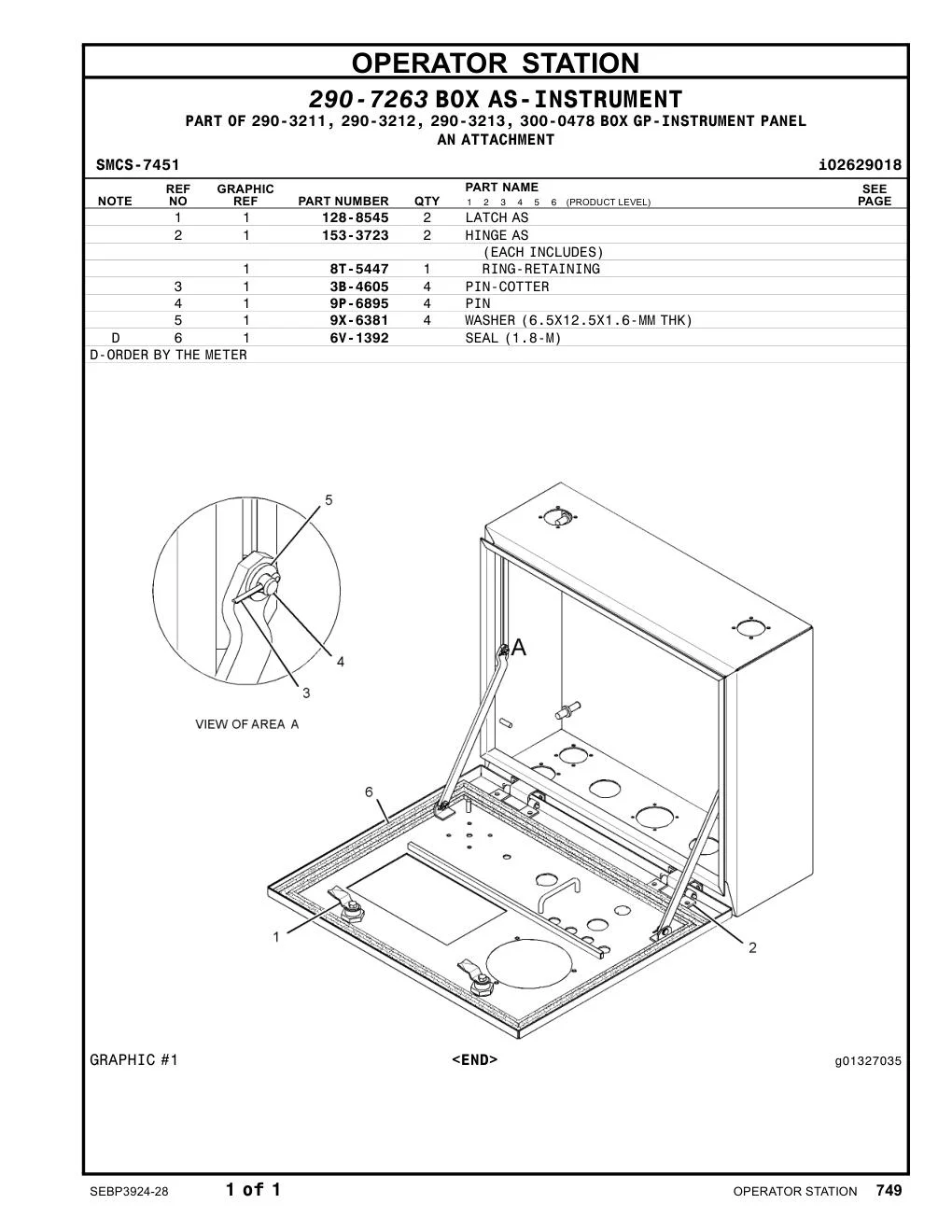

| 128-8545 |
LATCH AS
|
2 | 890 |
| 153-3723 |
HINGE AS (EACH INCLUDES)
|
2 | 890 |
| 8T-5447 |
RING-RETAINING
|
1 | 890 |
| 3B-4605 |
PIN-COTTER
|
4 | 890 |
| 9P-6895 |
PIN
|
4 | 890 |
| 9X-6381 |
WASHER (6.5X12.5X1.6-MM THK)
|
4 | 890 |
| 1H-4393 |
LOCKWASHER
|
2 | 932 |
| 3E-0357 |
DIODE AS
|
11 | 932 |
| 6D-5801 |
LOCKNUT (8-32 THD)
|
24 | 932 |
| 9X-9675 |
BRACKET-END
|
2 | 932 |
| 107-2482 |
GASKET
|
6 | 932 |
| 109-6507 |
SWITCH AS-PUSH BUTTON (EMERGENCY STOP)
|
1 | 932 |
| 110-8909 |
MOUNT-FLEXIBLE
|
6 | 932 |
| 111-1323 |
BLOCK-CONTACT
|
1 | 932 |
| 120-9079 |
TERMINAL
|
2 | 932 |
| 123-9694 |
HORN
|
1 | 932 |
| 124-3176 |
COVER
|
1 | 932 |
| 125-9941 |
BASE-LAMP
|
4 | 932 |
| 125-9942 |
LENS (AMBER)
|
1 | 932 |
| 125-9943 |
LENS (RED)
|
2 | 932 |
| 125-9944 |
LENS (GREEN)
|
1 | 932 |
| 125-9955 |
LAMP-LED (24-VOLT, RED)
|
1 | 932 |
| 125-9956 |
LAMP-LED (24-VOLT, AMBER)
|
1 | 932 |
| 125-9957 |
LAMP-LED (24-VOLT, GREEN)
|
1 | 932 |
| 127-2331 |
SWITCH AS-ROTARY (ENGINE CONTROL)
|
1 | 932 |
