| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 134-3530 |
HEAT EXCHANGER GP-SEA WATER –OR–
|
1 | 366 |
| 134-3533 |
HEAT EXCHANGER GP-SEA WATER
|
1 | 366 |
| 6L-2284 |
ROD-ZINC (HEAT EXCHANGER)
|
3 | 367 |
| 6L-2286 |
PLUG-PIPE
|
3 | 367 |
| 8L-9767 |
SHIM (0.015-IN THK)
|
32 | 367 |
| 155-2590 |
GASKET
|
1 | 367 |
| 155-2591 |
GASKET
|
1 | 367 |
| 155-2592 |
SEAL
|
1 | 367 |
| 155-2596 |
BRACKET AS
|
2 | 367 |
| 1H-1200 |
PIN-SPRING
|
1 | 367 |
| 3N-9606 |
U-BOLT
|
2 | 367 |
| 6V-8182 |
NUT (3/4-10-THD)
|
16 | 367 |
| 6V-8801 |
NUT (3/8-16-THD)
|
4 | 367 |
| 7X-0370 |
BOLT (3/4-10X3.5-IN)
|
8 | 367 |
| 8C-6857 |
BOLT (3/4-10X2.75-IN)
|
8 | 367 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
4 | 367 |
| 8T-4994 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
16 | 367 |
| 9B-0887 |
PLUG-PIPE
|
3 | 367 |
| 8T-8924 |
BOLT (3/4-10X2.5-IN)
|
16 | 370 |
| 8T-6871 |
BOLT (5/8-11X2.5-IN)
|
8 | 370 |
| 101-8679 |
FLANGE (8-HOLE)
|
2 | 370 |
| 101-8678 |
FLANGE (4-HOLE)
|
2 | 370 |
| 107-1727 |
GASKET (4-HOLE)
|
2 | 370 |
| 8F-2347 |
GASKET (8-HOLE)
|
2 | 370 |

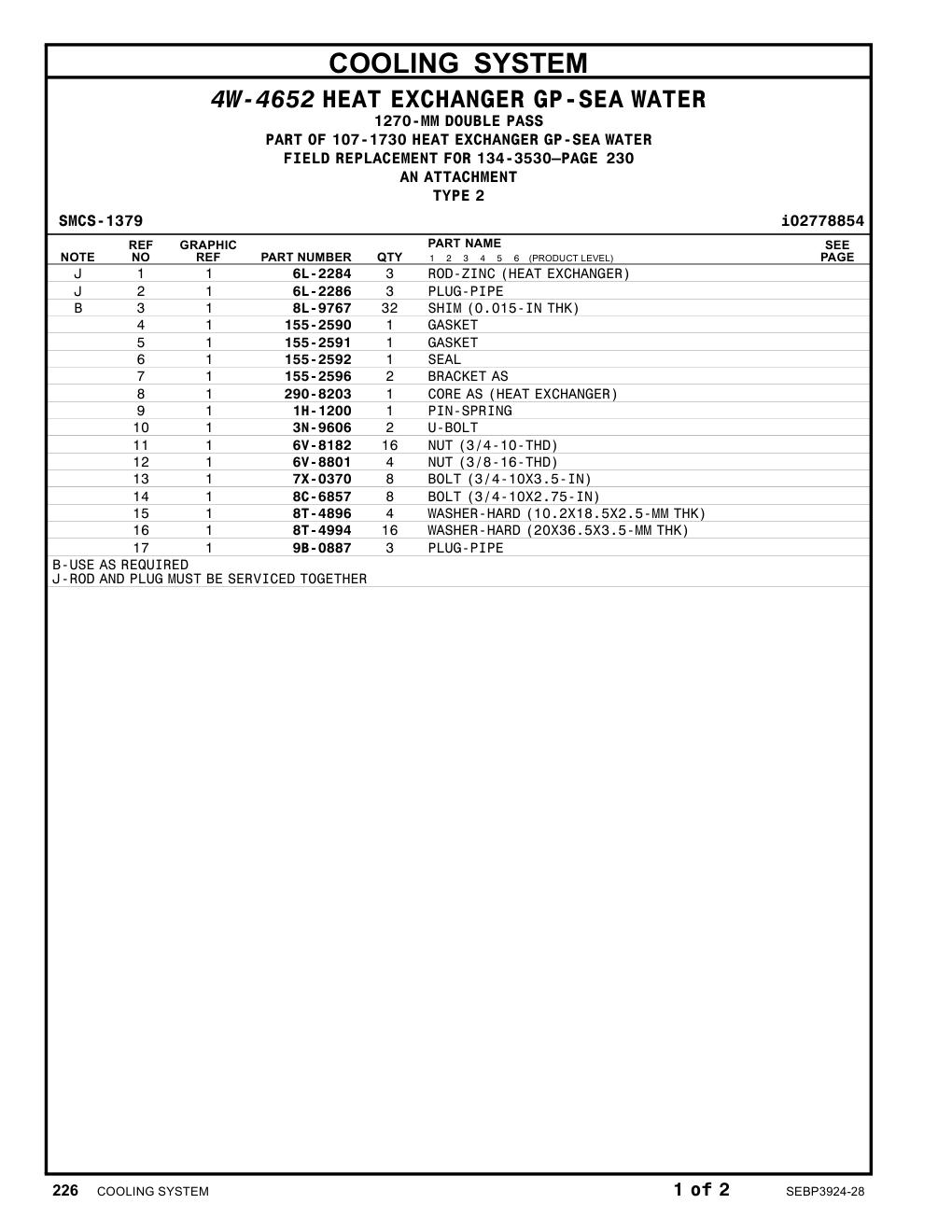

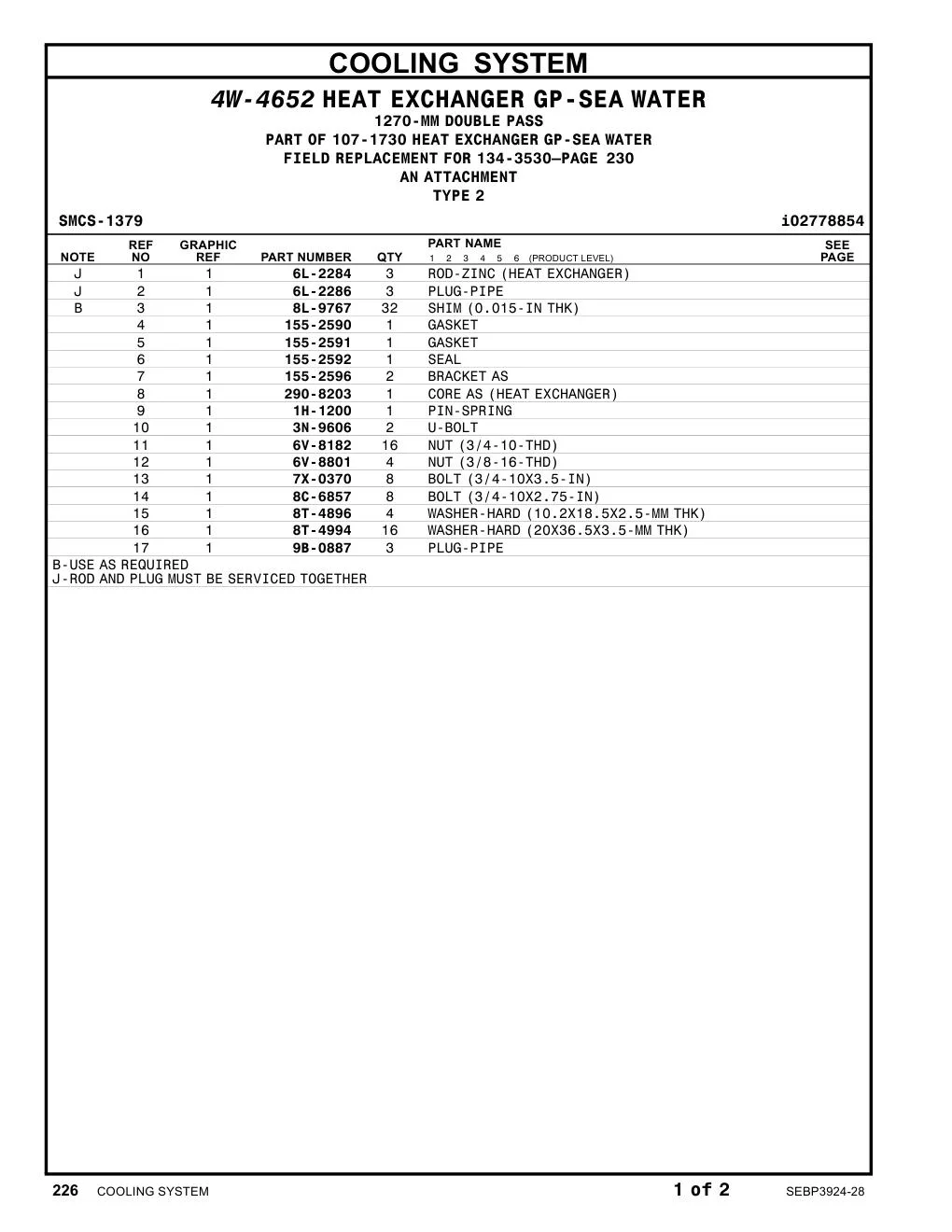

| 4W-4652 |
HEAT EXCHANGER GP-SEA WATER
|
1 | 370 |
| 7X-0448 |
NUT (5/8-11-THD)
|
8 | 370 |
| 6V-8182 |
NUT (3/4-10-THD)
|
16 | 370 |
| 8T-4994 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
32 | 370 |
| 8T-4122 |
WASHER-HARD (17X32X3.5-MM THK)
|
16 | 370 |
