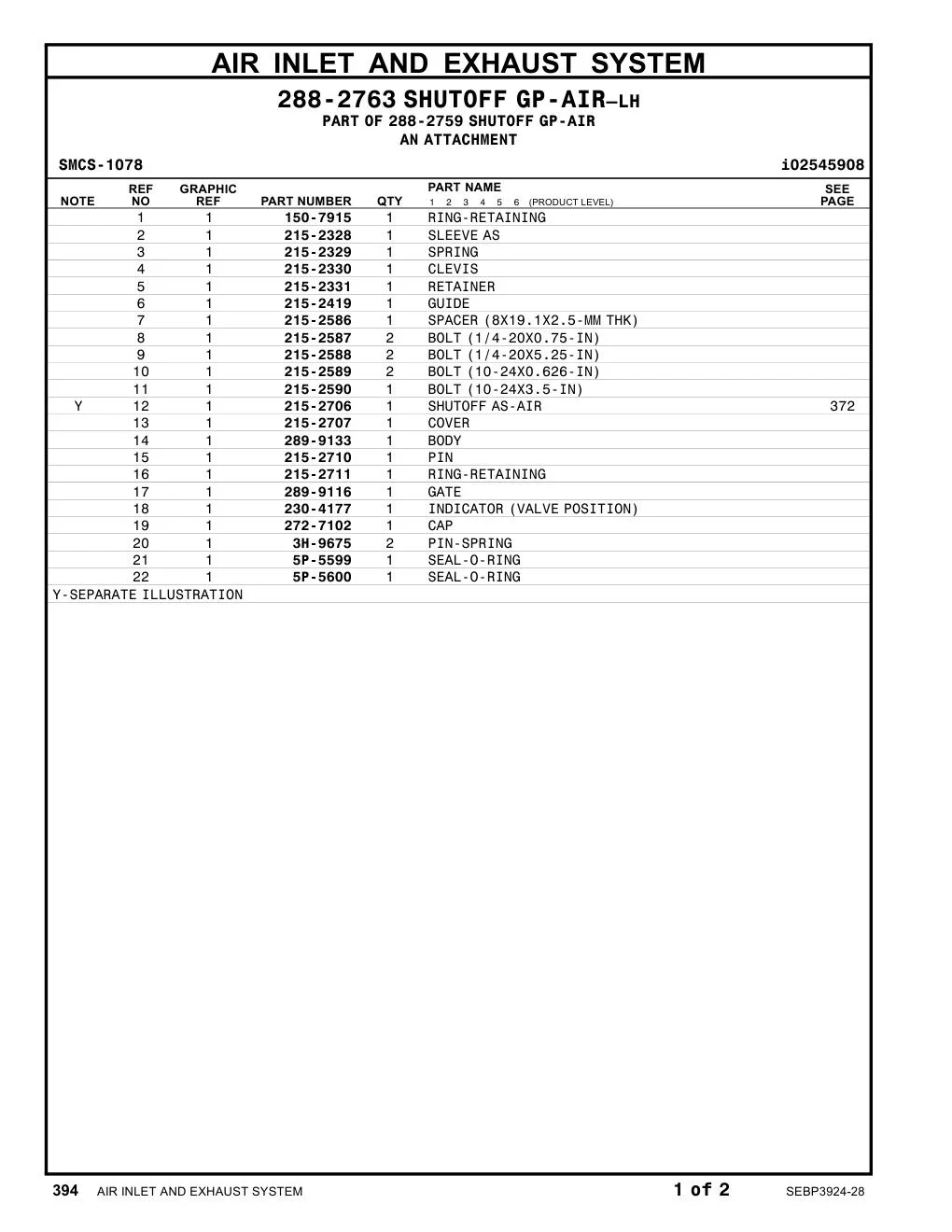

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 6V-5049 |
SEAL-O-RING
|
1 | 475 |
| 9S-8004 |
PLUG-O-RING PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY
|
1 | 475 |
| 150-7915 |
RING-RETAINING
|
1 | 535 |
| 215-2328 |
SLEEVE AS
|
1 | 535 |
| 215-2329 |
SPRING
|
1 | 535 |
| 215-2330 |
CLEVIS
|
1 | 535 |
| 215-2331 |
RETAINER
|
1 | 535 |
| 215-2419 |
GUIDE
|
1 | 535 |
| 215-2586 |
SPACER (8X19.1X2.5-MM THK)
|
1 | 535 |
| 215-2587 |
BOLT (1/4-20X0.75-IN)
|
2 | 535 |
| 215-2588 |
BOLT (1/4-20X5.25-IN)
|
2 | 535 |
| 215-2589 |
BOLT (10-24X0.626-IN)
|
2 | 535 |
| 215-2590 |
BOLT (10-24X3.5-IN)
|
1 | 535 |
| 215-2706 |
SHUTOFF AS-AIR
|
1 | 535 |
| 215-2707 |
COVER
|
1 | 535 |
| 289-9133 |
BODY
|
1 | 535 |
| 215-2710 |
PIN
|
1 | 535 |
| 215-2711 |
RING-RETAINING
|
1 | 535 |
| 230-4177 |
INDICATOR (VALVE POSITION)
|
1 | 535 |
| 272-7102 |
CAP
|
1 | 535 |
| 3H-9675 |
PIN-SPRING
|
2 | 535 |
| 5P-5599 |
SEAL-O-RING
|
1 | 535 |
| 5P-5600 |
SEAL-O-RING
|
1 | 535 |
