| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 148-8005 |
VALVE GP-CHECK
|
1 | 441 |
| 148-7996 |
GASKET
|
1 | 441 |
| 148-7997 |
HOSE AS
|
1 | 441 |
| 8T-4244 |
NUT (M12X1.75-THD)
|
4 | 441 |
| 148-8006 |
ROD
|
4 | 441 |
| 7X-0584 |
WASHER-HARD (13.5X20.5X2-MM THK)
|
4 | 441 |
| 143-9208 |
ELBOW
|
2 | 442 |
| 0S-1566 |
BOLT (5/8-11X1.5-IN)
|
4 | 442 |
| 5P-8247 |
WASHER-HARD (17X32X3.5-MM THK)
|
4 | 442 |

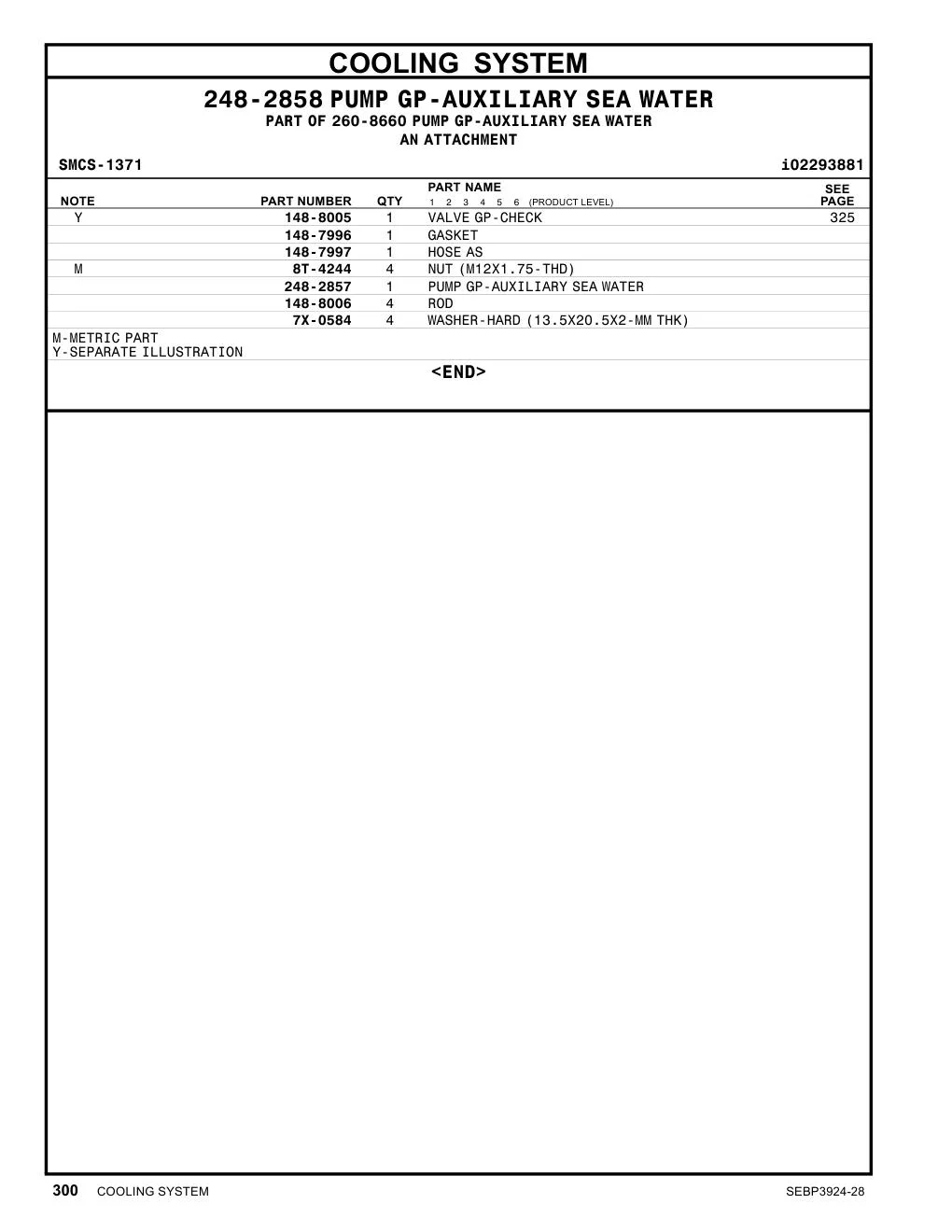

| 248-2858 |
PUMP GP-AUXILIARY SEA WATER
|
1 | 442 |
| 9X-7371 |
SEAL-O-RING
|
1 | 442 |
| 8T-6766 |
PLUG-PIPE
|
2 | 442 |
| 144-6074 |
GASKET
|
1 | 442 |
| 144-6076 |
GASKET
|
1 | 442 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
16 | 442 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
8 | 442 |
| 0S-1571 |
BOLT (3/8-16X1.75-IN)
|
8 | 442 |
| 5N-1845 |
FLANGE
|
2 | 442 |
| 3P-6061 |
GASKET
|
4 | 442 |
| 6L-2280 |
ROD-ZINC (AUXILIARY SEA WATER PUMP)
|
1 | 442 |
| 233-8525 |
PLUG-PIPE
|
1 | 442 |
| 8T-4192 |
BOLT (M12X1.75X25-MM)
|
4 | 442 |
| 7X-0584 |
WASHER-HARD (13.5X20.5X2-MM THK)
|
8 | 442 |
| 5L-5879 |
ADAPTER (EACH INCLUDES)
|
2 | 442 |
| 3F-1357 |
PLUG-DRAIN (AUXILIARY SEA WATER PUMP)
|
1 | 442 |
| 5B-3265 |
GASKET
|
2 | 442 |
| 9B-0887 |
PLUG-PIPE
|
1 | 442 |
