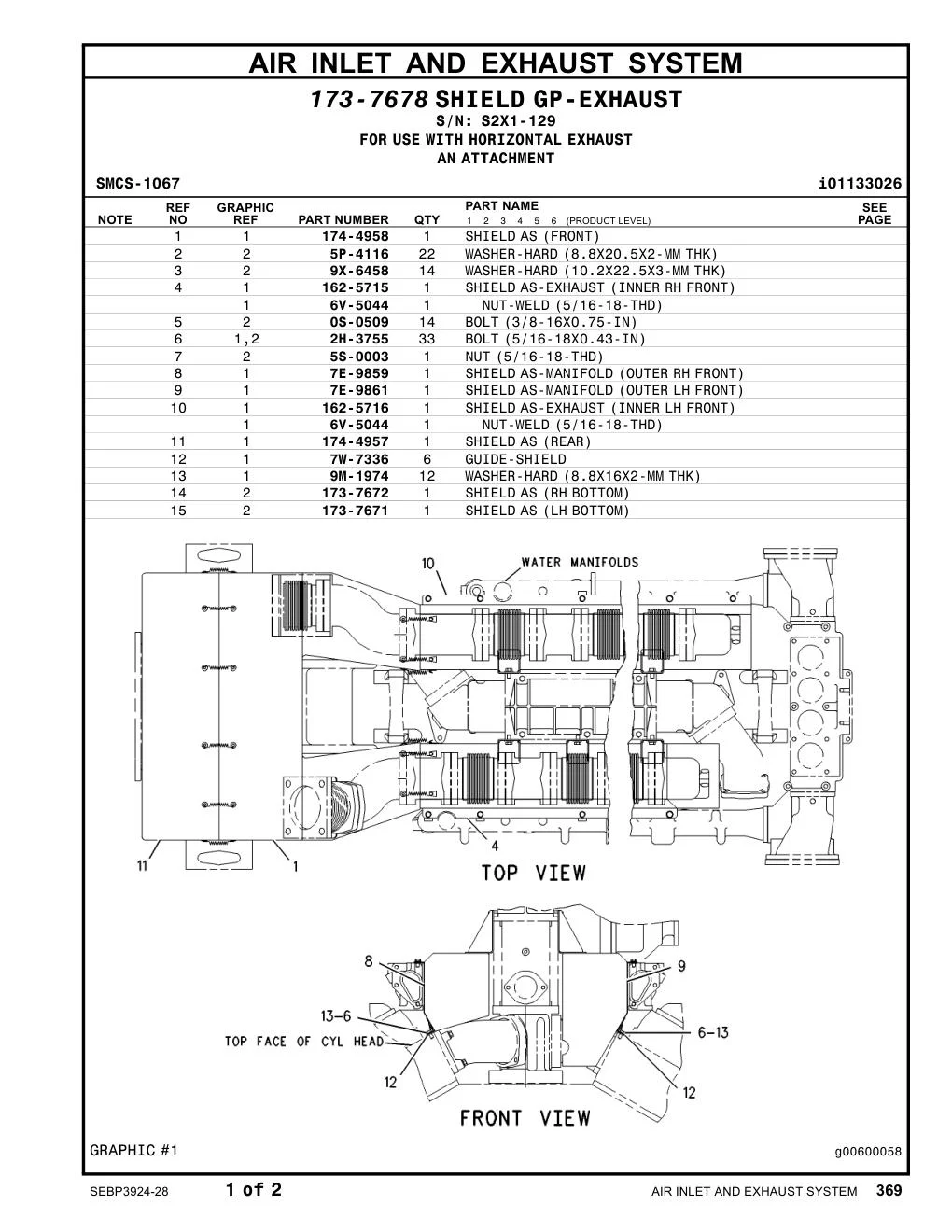

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 174-4958 |
SHIELD AS (FRONT)
|
1 | 510 |
| 5P-4116 |
WASHER-HARD (8.8X20.5X2-MM THK)
|
22 | 510 |
| 9X-6458 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
14 | 510 |
| 162-5715 |
SHIELD AS-EXHAUST (INNER RH FRONT)
|
1 | 510 |
| 6V-5044 |
NUT-WELD (5/16-18-THD)
|
1 | 510 |
| 0S-0509 |
BOLT (3/8-16X0.75-IN)
|
14 | 510 |
| 2H-3755 |
BOLT (5/16-18X0.43-IN)
|
33 | 510 |
| 5S-0003 |
NUT (5/16-18-THD)
|
1 | 510 |
| 7E-9859 |
SHIELD AS-MANIFOLD (OUTER RH FRONT)
|
1 | 510 |
| 7E-9861 |
SHIELD AS-MANIFOLD (OUTER LH FRONT)
|
1 | 510 |
| 162-5716 |
SHIELD AS-EXHAUST (INNER LH FRONT)
|
1 | 510 |
| 174-4957 |
SHIELD AS (REAR)
|
1 | 510 |
| 7W-7336 |
GUIDE-SHIELD
|
6 | 510 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
12 | 510 |
| 173-7671 |
SHIELD AS (LH BOTTOM)
|
1 | 510 |
| 7E-9859 |
SHIELD AS-MANIFOLD
|
1 | 512 |
| 7E-9861 |
SHIELD AS-MANIFOLD
|
1 | 512 |
| 7W-7336 |
GUIDE-SHIELD
|
6 | 512 |
| 162-5715 |
SHIELD AS-EXHAUST
|
1 | 512 |
| 6V-5044 |
NUT-WELD (5/16-18-THD)
|
1 | 512 |
| 162-5716 |
SHIELD AS-EXHAUST
|
1 | 512 |
| 255-6904 |
SHIELD AS
|
1 | 512 |
| 255-6905 |
SHIELD AS
|
1 | 512 |
| 0S-0509 |
BOLT (3/8-16X0.75-IN)
|
14 | 512 |
| 2H-3755 |
BOLT (5/16-18X0.43-IN)
|
33 | 512 |
| 5P-4116 |
WASHER-HARD (8.8X20.5X2-MM THK)
|
22 | 512 |
| 5S-0003 |
NUT (5/16-18-THD)
|
1 | 512 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
12 | 512 |
| 9X-6458 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
14 | 512 |
| 286-0285 |
SHIELD
|
2 | 512 |
| 232-4449 |
STRAP
|
2 | 512 |
| 232-4448 |
SHIELD AS-HEAT (TURBOCHARGER)
|
2 | 512 |
