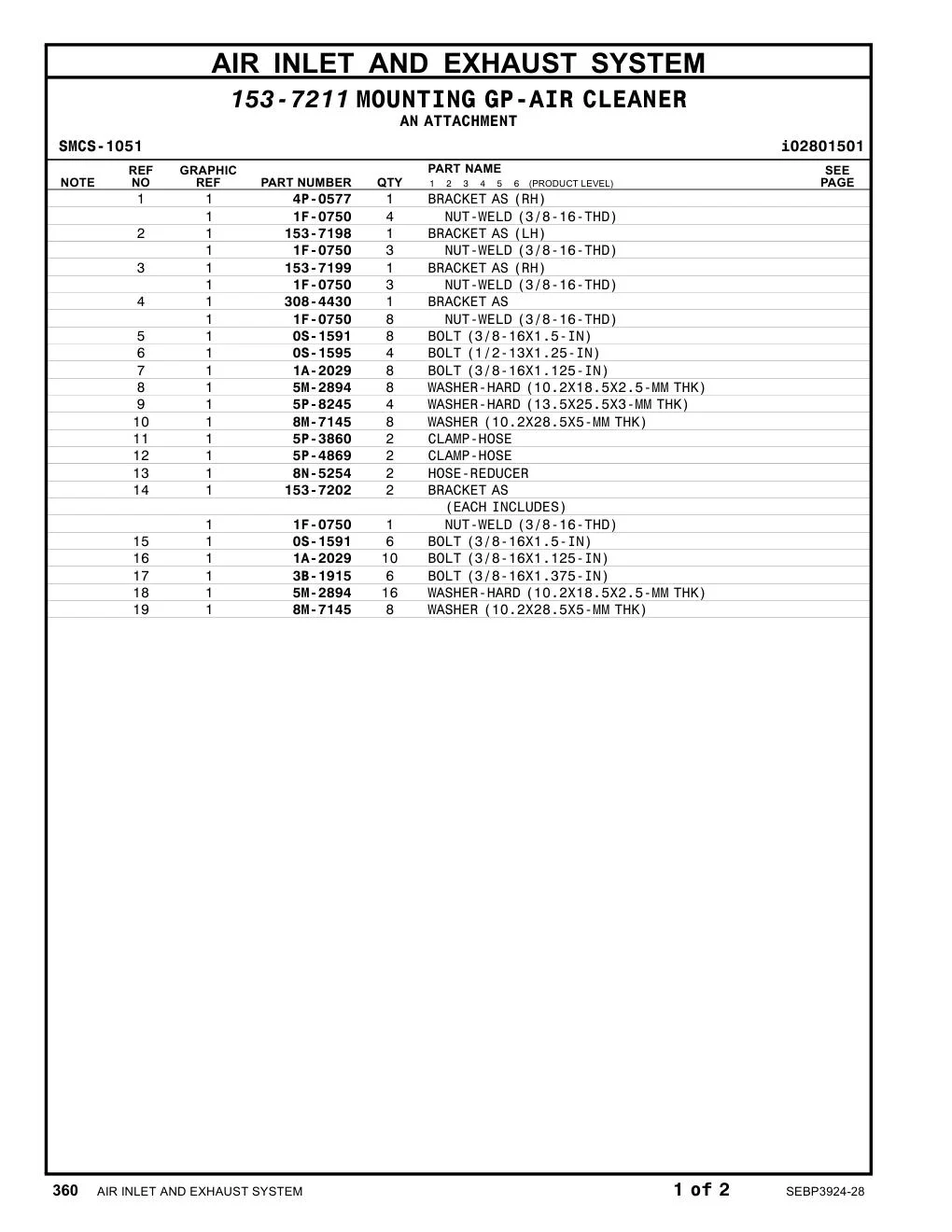

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4P-0577 |
BRACKET AS (RH)
|
1 | 501 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
4 | 501 |
| 153-7198 |
BRACKET AS (LH)
|
1 | 501 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
3 | 501 |
| 153-7199 |
BRACKET AS (RH)
|
1 | 501 |
| 308-4430 |
BRACKET AS
|
1 | 501 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
8 | 501 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
8 | 501 |
| 0S-1595 |
BOLT (1/2-13X1.25-IN)
|
4 | 501 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
8 | 501 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
8 | 501 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
4 | 501 |
| 8M-7145 |
WASHER (10.2X28.5X5-MM THK)
|
8 | 501 |
| 5P-3860 |
CLAMP-HOSE
|
2 | 501 |
| 5P-4869 |
CLAMP-HOSE
|
2 | 501 |
| 8N-5254 |
HOSE-REDUCER
|
2 | 501 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
1 | 501 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
6 | 501 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
10 | 501 |
| 3B-1915 |
BOLT (3/8-16X1.375-IN)
|
6 | 501 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
16 | 501 |
