| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4P-0692 |
CLAMP AS (EACH INCLUDES)
|
4 | 391 |
| 108-1434 |
GROMMET
|
1 | 391 |
| 4P-0693 |
CLAMP AS (EACH INCLUDES)
|
10 | 391 |
| 108-1434 |
GROMMET
|
2 | 391 |

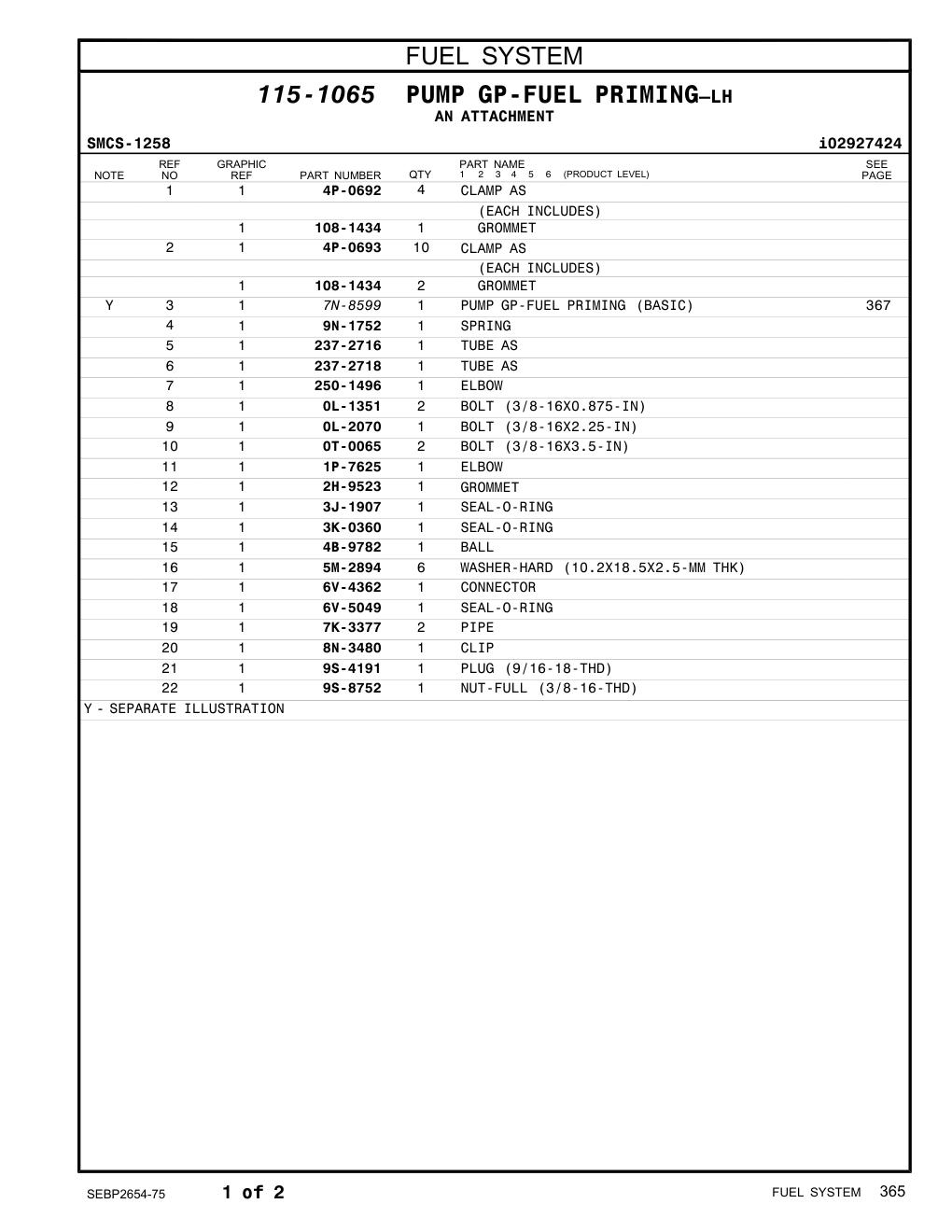

| 7N-8599 |
PUMP GP-FUEL PRIMING (BASIC)
|
1 | 391 |
| 9N-1752 |
SPRING
|
1 | 391 |
| 237-2716 |
TUBE AS
|
1 | 391 |
| 250-1496 |
ELBOW
|
1 | 391 |
| 0L-1351 |
BOLT (3/8-16X0.875-IN)
|
2 | 391 |
| 0L-2070 |
BOLT (3/8-16X2.25-IN)
|
1 | 391 |
| 0T-0065 |
BOLT (3/8-16X3.5-IN)
|
2 | 391 |
| 1P-7625 |
ELBOW
|
1 | 391 |
| 2H-9523 |
GROMMET
|
1 | 391 |
| 3J-1907 |
SEAL-O-RING
|
1 | 391 |
| 3K-0360 |
SEAL-O-RING
|
1 | 391 |
| 4B-9782 |
BALL
|
1 | 391 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
6 | 391 |
| 6V-4362 |
CONNECTOR
|
1 | 391 |
| 6V-5049 |
SEAL-O-RING
|
1 | 391 |
| 7K-3377 |
PIPE
|
2 | 391 |
| 8N-3480 |
CLIP
|
1 | 391 |
| 9S-4191 |
PLUG (9/16-18-THD)
|
1 | 391 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
1 | 391 |
| 2W-2606 |
PUMP AS-FUEL PRIMING
|
1 | 393 |
| 7B-2742 |
BOLT (1/4-20X1.25-IN)
|
1 | 393 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
1 | 393 |
| 9Y-8389 |
GASKET (FUEL PRIMING PUMP)
|
1 | 393 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
1 | 393 |
| 1B-7182 |
BOLT (5/16-18X1.25-IN)
|
1 | 393 |
