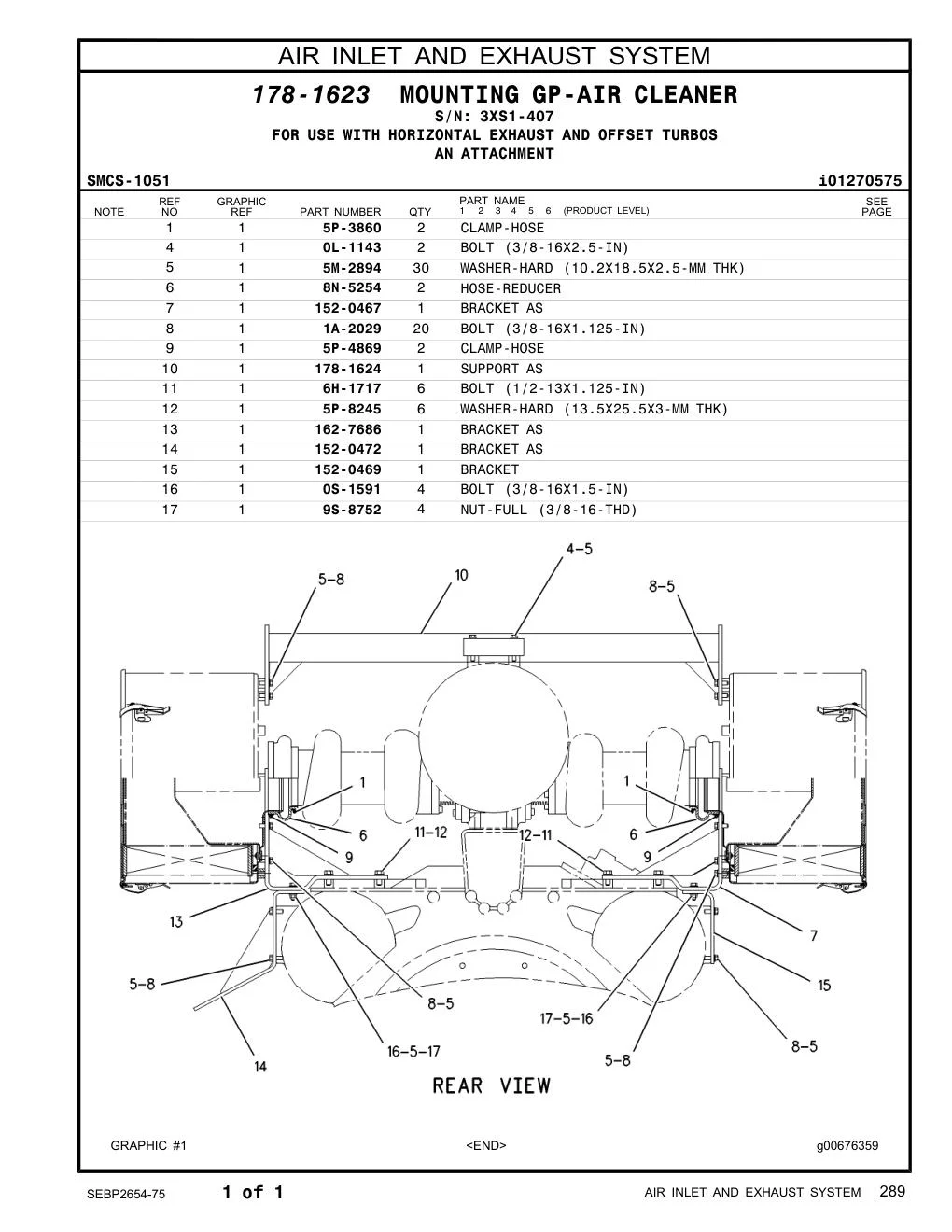

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 5P-3860 |
CLAMP-HOSE
|
2 | 315 |
| 0L-1143 |
BOLT (3/8-16X2.5-IN)
|
2 | 315 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
30 | 315 |
| 8N-5254 |
HOSE-REDUCER
|
2 | 315 |
| 152-0467 |
BRACKET AS
|
1 | 315 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
20 | 315 |
| 5P-4869 |
CLAMP-HOSE
|
2 | 315 |
| 6H-1717 |
BOLT (1/2-13X1.125-IN)
|
6 | 315 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
6 | 315 |
| 162-7686 |
BRACKET AS
|
1 | 315 |
| 152-0472 |
BRACKET AS
|
1 | 315 |
| 152-0469 |
BRACKET
|
1 | 315 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
4 | 315 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
4 | 315 |
| 195-9732 |
BRACKET AS (RH)
|
1 | 316 |
| 195-9738 |
BRACKET AS (LH)
|
1 | 316 |
| 195-9745 |
BRACKET AS (RH)
|
1 | 316 |
| 195-9748 |
BRACKET AS (LH)
|
1 | 316 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
6 | 316 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
10 | 316 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
6 | 316 |
| 6H-1717 |
BOLT (1/2-13X1.125-IN)
|
6 | 316 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
4 | 316 |
| 5P-3860 |
CLAMP-HOSE
|
2 | 316 |
| 5P-4869 |
CLAMP-HOSE
|
2 | 316 |
| 8N-5254 |
HOSE-REDUCER
|
2 | 316 |
| 0L-1143 |
BOLT (3/8-16X2.5-IN)
|
2 | 316 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
12 | 316 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
14 | 316 |
