| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 7N-4756 |
HOUSING AS-PUMP
|
1 | 265 |
| 3D-2824 |
SEAL-O-RING
|
1 | 265 |
| 7G-8478 |
ADAPTER
|
1 | 265 |
| 4N-5834 |
FILTER-FOAM (WATER PUMP HOUSING)
|
2 | 265 |
| 8T-6765 |
PLUG-PIPE (1/4-18-THD)
|
1 | 265 |
| 2W-9723 |
SHAFT AS-PUMP DRIVE
|
1 | 265 |
| 6F-7172 |
DOWEL
|
1 | 265 |
| 0S-1618 |
BOLT (5/16-18X1-IN)
|
2 | 265 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
2 | 265 |
| 7N-4758 |
WASHER-THRUST
|
1 | 265 |
| 8C-5236 |
SEAL-LIP TYPE
|
1 | 265 |
| 166-4376 |
SEAL GP (WATER PUMP)
|
1 | 265 |
| 2W-9727 |
IMPELLER-PUMP
|
1 | 265 |
| 6V-8287 |
LOCKNUT (5/8-18-THD)
|
1 | 265 |
| 5S-0581 |
WASHER-HARD (17X38X8-MM THK)
|
1 | 265 |
| 166-4374 |
RING AS
|
1 | 265 |
| 1L-5316 |
PIN-SPRING AVAILABLE REPAIR KIT(S):
|
1 | 265 |
| 222-5152 |
KIT-WATER PUMP (KIT ALSO INCLUDES STRAIGHT FIT SHAFT & IMPELLER)
|
1 | 265 |

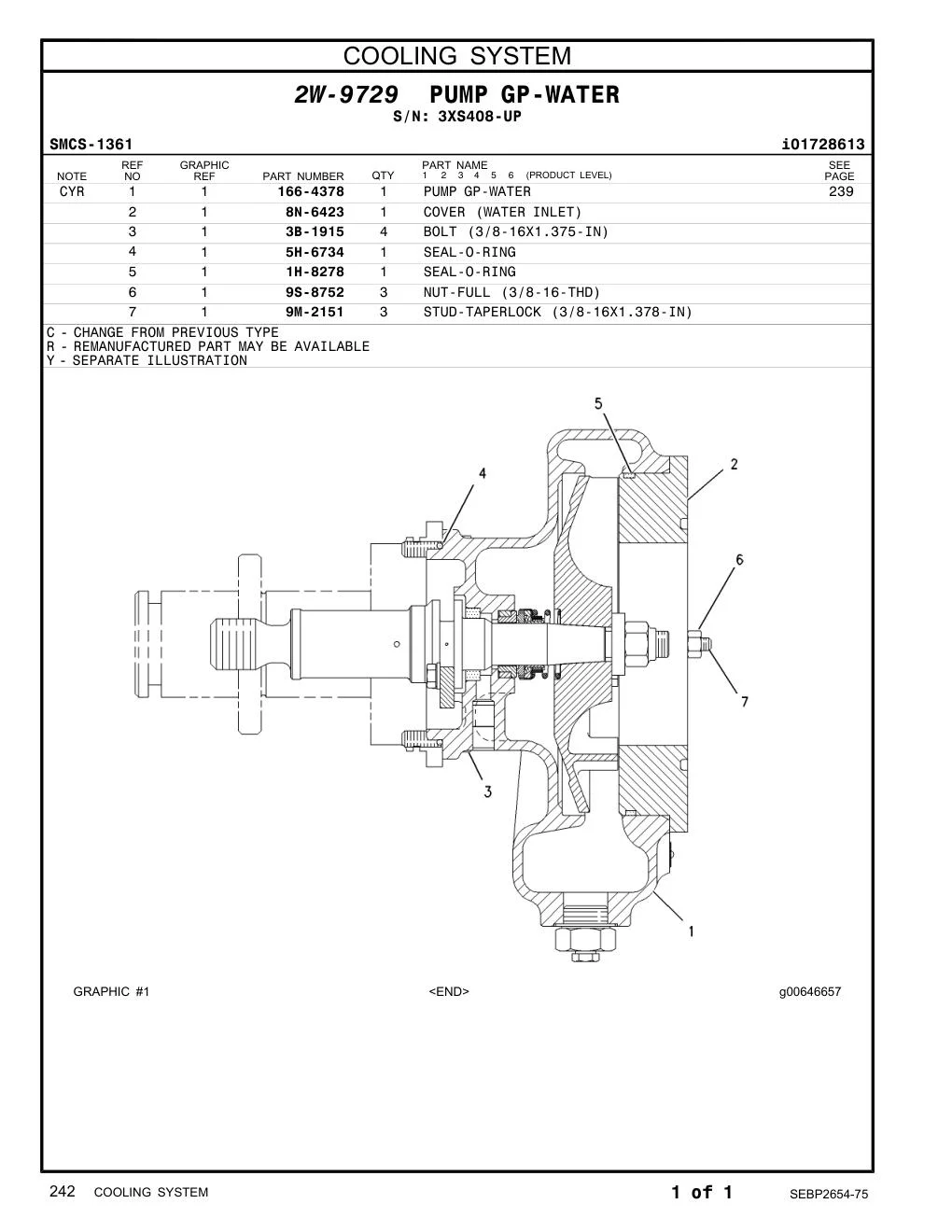

| 8N-6423 |
COVER (WATER INLET)
|
1 | 268 |
| 3B-1915 |
BOLT (3/8-16X1.375-IN)
|
4 | 268 |
| 5H-6734 |
SEAL-O-RING
|
1 | 268 |
| 1H-8278 |
SEAL-O-RING
|
1 | 268 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
3 | 268 |
| 9M-2151 |
STUD-TAPERLOCK (3/8-16X1.378-IN)
|
3 | 268 |
