| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

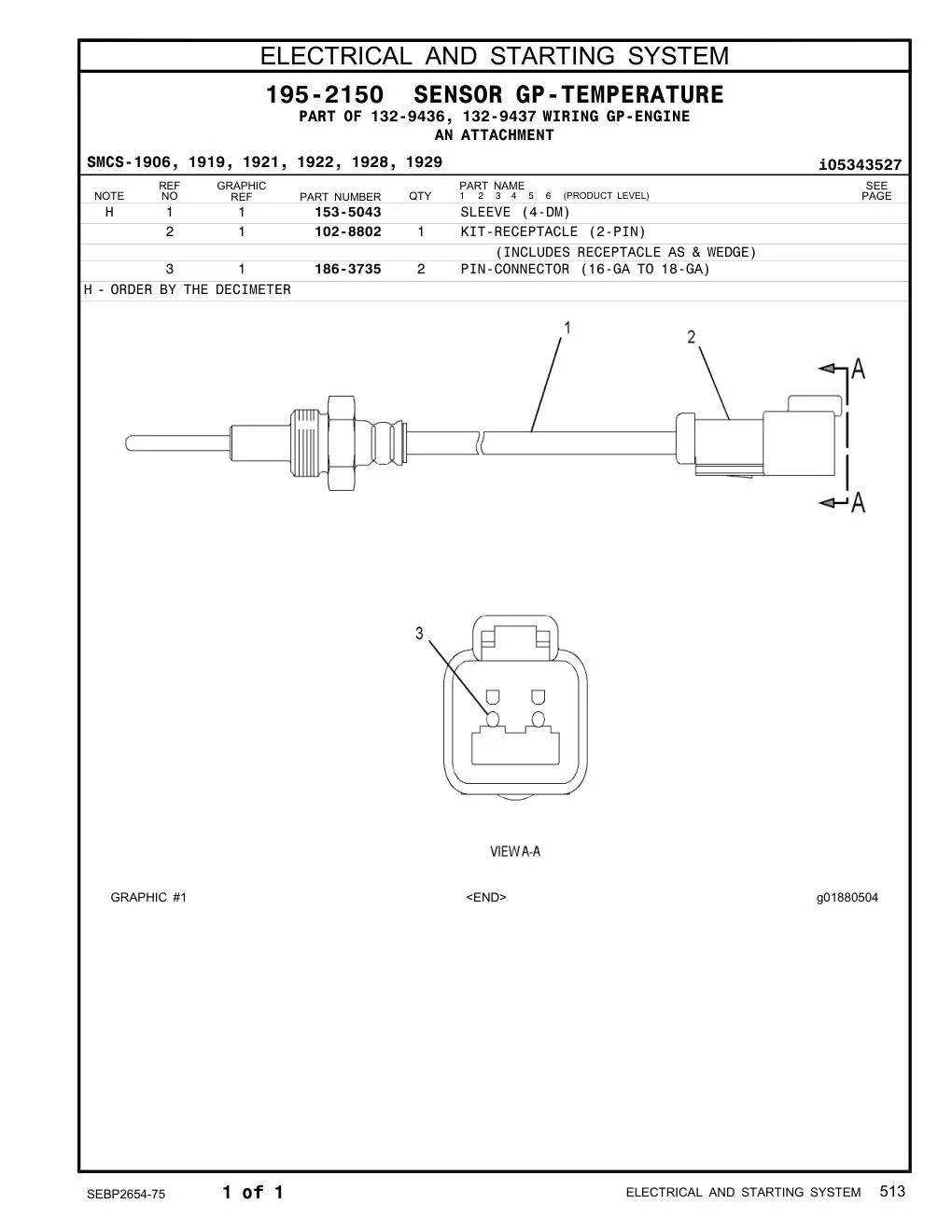

| 102-8802 |
KIT-RECEPTACLE (2-PIN) (INCLUDES RECEPTACLE AS & WEDGE)
|
1 | 539 |
| 186-3735 |
PIN-CONNECTOR (16-GA TO 18-GA)
|
2 | 539 |
| 129-9191 |
SENSOR GP-TEMPERATURE (AIR)
|
1 | 648 |
| 102-8802 |
KIT-RECEPTACLE (2-PIN) (INCLUDES WEDGE & RECEPTACLE AS)
|
1 | 648 |
| 8B-2664 |
BUSHING-REDUCER
|
1 | 648 |
| 4W-9972 |
SENDER AS-TEMPERATURE (12-VOLT) (OIL)
|
1 | 648 |
| 4B-2049 |
NUT (10-32-THD)
|
1 | 648 |
| 8F-1434 |
LOCKWASHER
|
1 | 648 |
| 8T-0328 |
WASHER-HARD (5.5X10X1-MM THK)
|
1 | 648 |
| 3J-1907 |
SEAL-O-RING
|
1 | 648 |
| 5P-1404 |
ADAPTER
|
1 | 648 |
| 6V-4589 |
SEAL-O-RING
|
1 | 648 |
| 132-9434 |
HARNESS AS-SENSOR (AIR/OIL SENSOR)
|
1 | 648 |
| 102-8807 |
KIT-CONNECTING PLUG (2-PIN) (INCLUDES WEDGE & PLUG AS)
|
2 | 648 |
| 9X-6772 |
STRAP-CABLE
|
1 | 648 |
| 129-9191 |
SENSOR GP-TEMPERATURE (AIR)
|
1 | 649 |
| 102-8802 |
KIT-RECEPTACLE (2-PIN) (INCLUDES WEDGE & RECEPTACLE AS)
|
1 | 649 |
| 129-9191 |
SENSOR GP-TEMPERATURE (OIL)
|
1 | 649 |
| 8B-2664 |
BUSHING-REDUCER
|
1 | 649 |
| 5P-4481 |
ADAPTER-O-RING
|
1 | 649 |
| 6V-4589 |
SEAL-O-RING
|
1 | 649 |
| 132-9434 |
HARNESS AS-SENSOR (AIR/OIL SENSOR)
|
1 | 649 |
| 102-8807 |
KIT-CONNECTING PLUG (2-PIN) (INCLUDES PLUG ASSEMBLY & WEDGE)
|
2 | 649 |
| 9X-6772 |
STRAP-CABLE
|
1 | 649 |
| 195-2150 |
SENSOR GP-TEMPERATURE (AIR INLET)
|
1 | 650 |
| 195-2150 |
SENSOR GP-TEMPERATURE (ENGINE OIL)
|
1 | 650 |
| 8B-2664 |
BUSHING-REDUCER
|
1 | 650 |
| 5P-1404 |
ADAPTER
|
1 | 650 |
| 6V-4589 |
SEAL-O-RING
|
1 | 650 |
| 132-9434 |
HARNESS AS-SENSOR (AIR INLET/OIL TEMPERATURE)
|
1 | 650 |
| 102-8807 |
KIT-CONNECTING PLUG (2-PIN) (INCLUDES WEDGE & PLUG AS)
|
2 | 650 |
| 9X-6772 |
STRAP-CABLE
|
1 | 650 |
| 9X-3271 |
ADAPTER (1/2-14-THD)
|
1 | 650 |
| 8T-0151 |
ADAPTER
|
1 | 650 |
| 6V-5049 |
SEAL-O-RING
|
3 | 650 |
