| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 108-9656 |
STRAP-CABLE
|
3 | 660 |
| 4P-7581 |
CLIP (LADDER)
|
3 | 660 |
| 108-9656 |
STRAP-CABLE
|
1 | 660 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
1 | 660 |
| 4P-8134 |
CLIP (LADDER)
|
1 | 660 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
1 | 660 |
| 108-9656 |
STRAP-CABLE (FOR USE WITH DUPLEX FILTERS)
|
1 | 660 |
| 4P-7581 |
CLIP (LADDER) (FOR USE WITH DUPLEX FILTERS)
|
1 | 660 |
| 108-9656 |
STRAP-CABLE (FOR USE WITH STANDARD FILTERS)
|
2 | 660 |
| 0T-0573 |
BOLT (3/8-16X2.75-IN) (FOR USE WITH STANDARD FILTERS)
|
1 | 660 |
| 4P-8134 |
CLIP (LADDER) (FOR USE WITH STANDARD FILTERS)
|
2 | 660 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK) (FOR USE WITH STANDARD FILTERS)
|
2 | 660 |
| 9S-8752 |
NUT-FULL (3/8-16-THD) (FOR USE WITH STANDARD FILTERS)
|
1 | 660 |
| 131-1578 |
STRAP-CABLE
|
29 | 660 |
| 131-1578 |
STRAP-CABLE
|
2 | 660 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
2 | 660 |
| 4P-8134 |
CLIP (LADDER)
|
2 | 660 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
4 | 660 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
2 | 660 |
| 3E-7826 |
SENSOR GP-EXHAUST TEMPERATURE (RH)
|
1 | 660 |
| 3E-7826 |
SENSOR GP-EXHAUST TEMPERATURE (LH)
|
1 | 660 |
| 6W-2928 |
BOSS
|
1 | 660 |
| 9G-5127 |
BREATHER AS
|
1 | 660 |
| 9X-0262 |
ADAPTER
|
6 | 660 |
| 9X-0263 |
ADAPTER
|
2 | 660 |
| 9X-5392 |
SENSOR GP-SPEED (ELECTRONIC SPEED CALIBRATION)
|
1 | 660 |
| 8T-8729 |
PIN-CONNECTOR (16-GA TO 18-GA)
|
2 | 660 |
| 8T-8732 |
RECEPTACLE-CONNECTOR (3-PIN)
|
1 | 660 |
| 8T-8737 |
PLUG-SEAL
|
1 | 660 |
| 9X-1386 |
SLEEVE (14CM)
|
1 | 660 |
| 102-7532 |
SENSOR GP-TEMPERATURE (COOLANT)
|
1 | 660 |
| 8T-8729 |
PIN-CONNECTOR (16-GA TO 18-GA)
|
3 | 660 |
| 9X-1813 |
SLEEVE (31CM)
|
1 | 660 |
| 102-9029 |
SENSOR GP-SPEED (PRIMARY SPEED TIMING)
|
1 | 660 |
| 108-9656 |
STRAP-CABLE
|
32 | 660 |
| 111-3684 |
HOSE AS
|
1 | 660 |
| 111-8800 |
SENSOR GP-PRESSURE (RH TURBO INLET)
|
1 | 660 |
| 111-8800 |
SENSOR GP-PRESSURE (AMBIENT)
|
1 | 660 |
| 111-8800 |
SENSOR GP-PRESSURE (CRANKCASE)
|
1 | 660 |
| 111-8800 |
SENSOR GP-PRESSURE (LH TURBO INLET)
|
1 | 660 |
| 117-0067 |
ELBOW
|
1 | 660 |
| 128-4347 |
SENSOR GP-TEMPERATURE (AFTERCOOLER)
|
1 | 660 |
| 128-5416 |
SENSOR GP-PRESSURE (FILTERED OIL)
|
1 | 660 |
| 128-5416 |
SENSOR GP-PRESSURE (UNFILTERED OIL)
|
1 | 660 |
| 128-5416 |
SENSOR GP-PRESSURE (FILTERED FUEL)
|
1 | 660 |
| 128-5416 |
SENSOR GP-PRESSURE (UNFILTERED FUEL)
|
1 | 661 |
| 152-0493 |

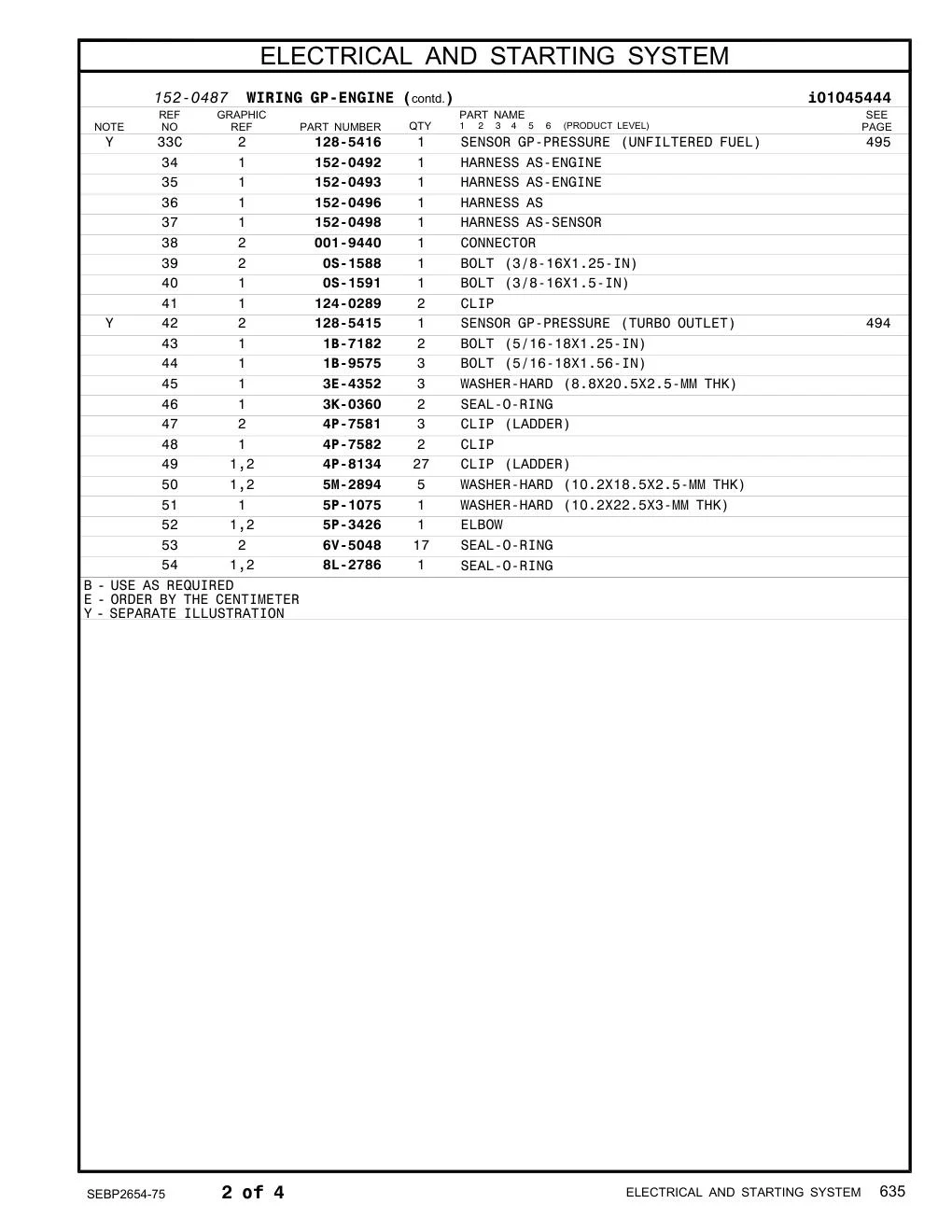

HARNESS AS-ENGINE
|
1 | 661 |
| 152-0496 |
HARNESS AS
|
1 | 661 |
| 152-0498 |
HARNESS AS-SENSOR
|
1 | 661 |
| 001-9440 |
CONNECTOR
|
1 | 661 |
