| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 2A-4429 |
LOCK-RETAINER
|
8 | 73 |
| 137-6856 |
SEAL (VALVE STEM)
|
4 | 73 |
| 133-3814 |
ROTOCOIL AS
|
1 | 73 |
| 7N-1902 |
DOWEL
|
2 | 73 |
| 7N-1903 |
SPRING-VALVE INNER
|
4 | 73 |
| 7N-1904 |
SPRING-VALVE OUTER
|
4 | 73 |
| 8T-6759 |
PLUG-PIPE
|
1 | 73 |
| 7E-4609 |
VALVE-INLET (INTAKE)
|
2 | 73 |
| 121-9839 |
VALVE-EXHAUST
|
2 | 73 |
| 131-0411 |
CYLINDER HEAD AS
|
1 | 73 |
| 133-9306 |
GUIDE-VALVE (STANDARD)
|
4 | 73 |
| 149-1982 |
GUIDE-VALVE (0.508-MM OS)
|
1 | 73 |
| 273-3553 |
GUIDE-VALVE (0.127-MM OS)
|
1 | 73 |
| 273-3554 |
GUIDE-VALVE (0.25-MM OS)
|
1 | 73 |
| 301-9248 |
GUIDE-VALVE (0.38-MM THK)
|
1 | 73 |

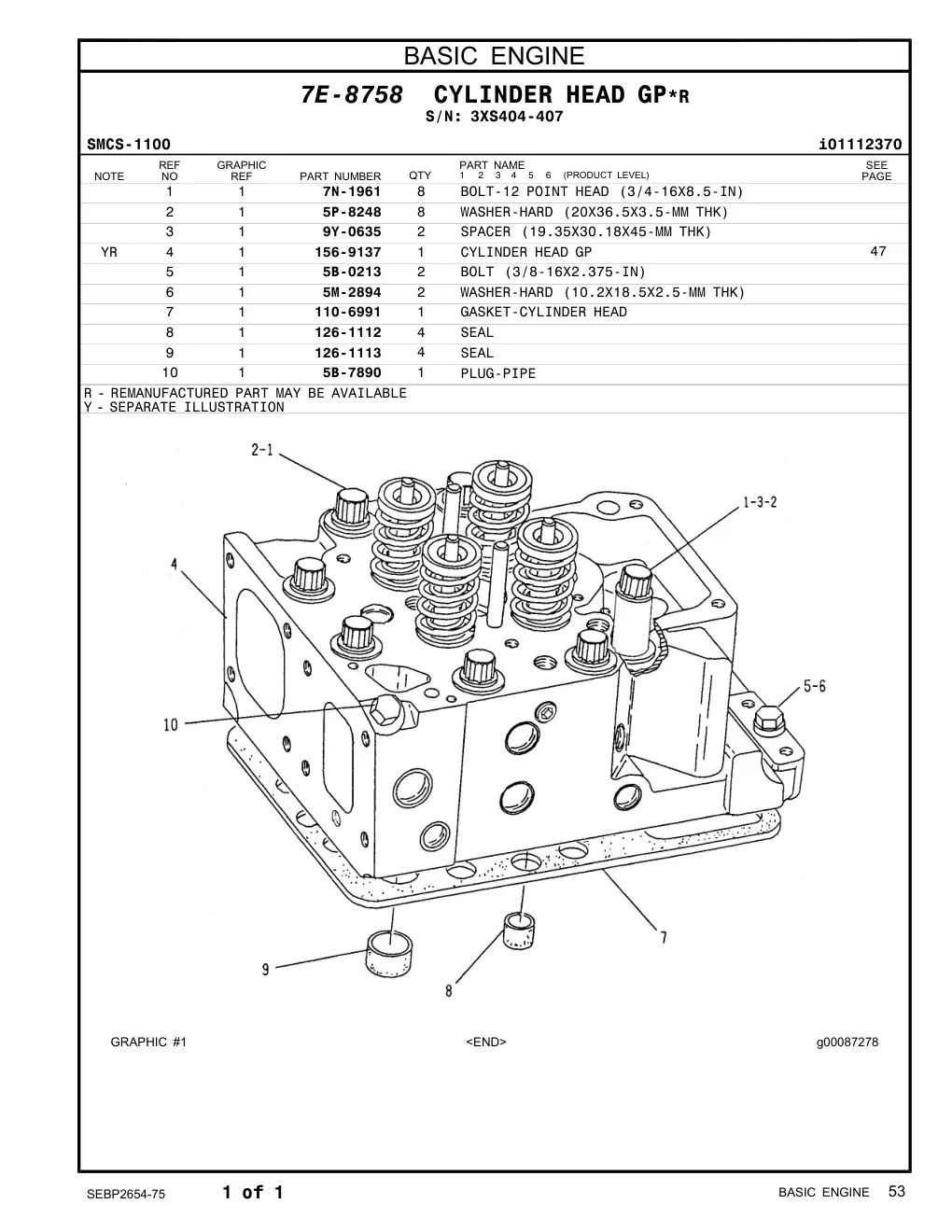

| 7N-1961 |
BOLT-12 POINT HEAD (3/4-16X8.5-IN)
|
8 | 79 |
| 5P-8248 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
8 | 79 |
| 9Y-0635 |
SPACER (19.35X30.18X45-MM THK)
|
2 | 79 |
| 156-9137 |
CYLINDER HEAD GP
|
1 | 79 |
| 5B-0213 |
BOLT (3/8-16X2.375-IN)
|
2 | 79 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 79 |
| 110-6991 |
GASKET-CYLINDER HEAD
|
1 | 79 |
| 126-1113 |
SEAL
|
4 | 79 |
| 5B-7890 |
PLUG-PIPE
|
1 | 79 |
