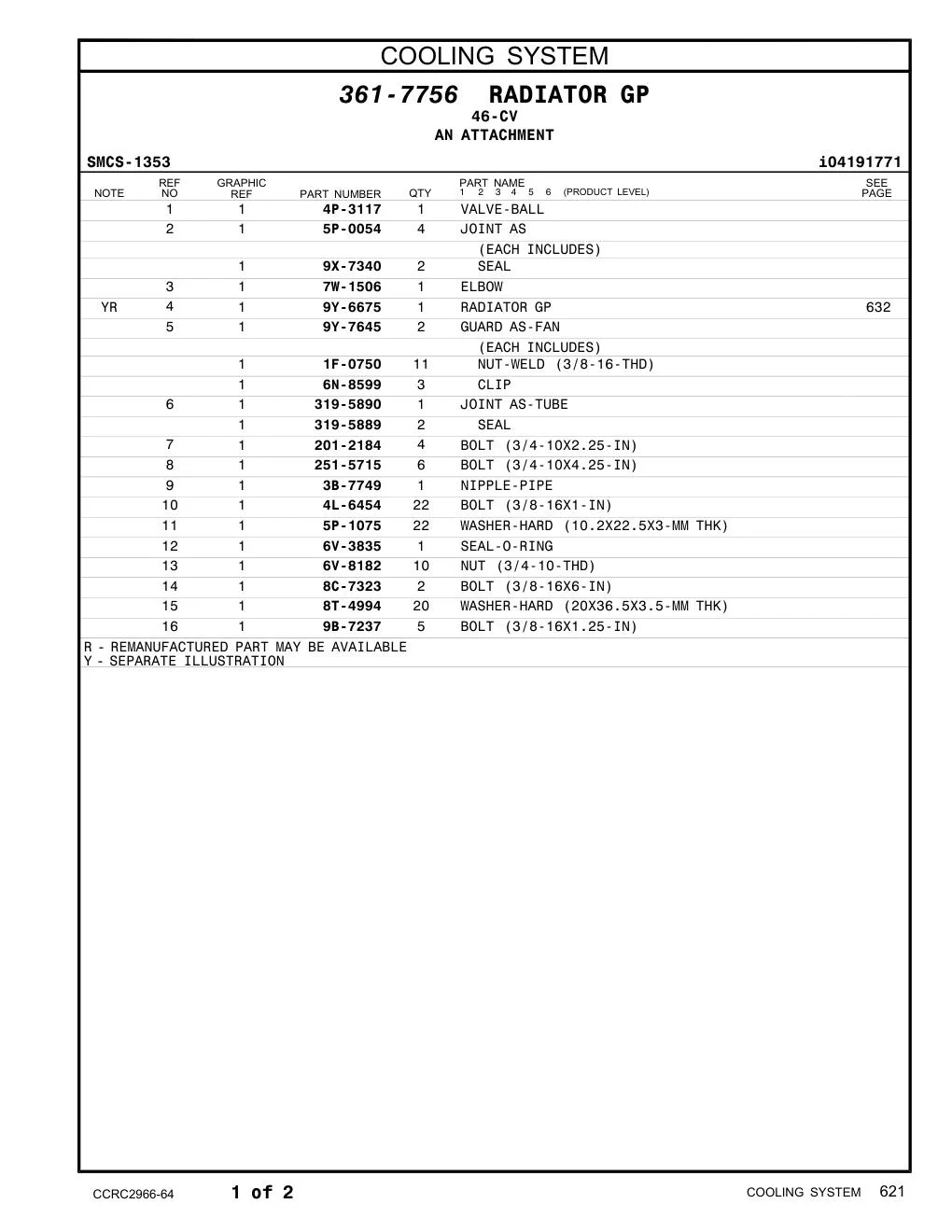

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4P-3117 |
VALVE-BALL
|
1 | 653 |
| 5P-0054 |
JOINT AS (EACH INCLUDES)
|
4 | 653 |
| 9X-7340 |
SEAL
|
2 | 653 |
| 7W-1506 |
ELBOW
|
1 | 653 |
| 9Y-7645 |
GUARD AS-FAN (EACH INCLUDES)
|
2 | 653 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
11 | 653 |
| 6N-8599 |
CLIP
|
3 | 653 |
| 319-5890 |
JOINT AS-TUBE
|
1 | 653 |
| 319-5889 |
SEAL
|
2 | 653 |
| 201-2184 |
BOLT (3/4-10X2.25-IN)
|
4 | 653 |
| 251-5715 |
BOLT (3/4-10X4.25-IN)
|
6 | 653 |
| 3B-7749 |
NIPPLE-PIPE
|
1 | 653 |
| 4L-6454 |
BOLT (3/8-16X1-IN)
|
22 | 653 |
| 5P-1075 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
22 | 653 |
| 6V-3835 |
SEAL-O-RING
|
1 | 653 |
| 6V-8182 |
NUT (3/4-10-THD)
|
10 | 653 |
| 8C-7323 |
BOLT (3/8-16X6-IN)
|
2 | 653 |
| 8T-4994 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
20 | 653 |
| 9B-7237 |
BOLT (3/8-16X1.25-IN)
|
5 | 653 |
| 6L-8617 |
CAP-PRESSURE (7-PSI) (RADIATOR)
|
1 | 655 |
| 8T-6765 |
PLUG-PIPE (1/4-18-THD)
|
5 | 655 |
| 4L-6454 |
BOLT (3/8-16X1-IN)
|
197 | 655 |
| 5P-1075 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
209 | 655 |
| 6V-8801 |
NUT (3/8-16-THD)
|
9 | 655 |
| 8T-6764 |
PLUG-PIPE (1/8-27-THD)
|
1 | 655 |
| 7C-4236 |
TANK AS-TOP
|
1 | 655 |
| 1F-2417 |
BOSS (1/4-28-THD)
|
5 | 655 |
| 3L-5893 |
TUBE-OVERFLOW
|
1 | 655 |
| 6B-9807 |
BOSS
|
1 | 655 |
| 8N-8846 |
NECK-FILLER
|
1 | 655 |
| 7C-4241 |
CHANNEL AS (LH)
|
1 | 655 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
30 | 655 |
| 7W-1986 |
PLATE AS
|
1 | 655 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
25 | 655 |
| 7C-4240 |
CHANNEL AS (RH)
|
1 | 655 |
| 2W-5330 |
BRACKET AS (EACH INCLUDES)
|
7 | 655 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
2 | 655 |
| 2W-5551 |
STRAP AS (EACH INCLUDES)
|
60 | 655 |
| 3E-7430 |
PLUG-PIPE (3/4-14-THD)
|
1 | 655 |
| 0S-1621 |
BOLT (1/2-13X1-IN)
|
2 | 655 |
| 8N-3248 |
GASKET
|
1 | 655 |
| 7W-2285 |
PLATE-EXTENSION
|
1 | 655 |
| 7C-4344 |
ELBOW-OUTLET
|
1 | 655 |
| 9X-8877 |
BOLT (1/2-13X5-IN)
|
2 | 655 |
| 7C-4232 |
TANK AS-BOTTOM
|
1 | 655 |
| 160-6387 |
SEAL-END TANK
|
25 | 655 |
| 160-6386 |
SEAL-END TANK
|
25 | 655 |
| 2W-0181 |
CORE AS-RADIATOR (EACH INCLUDES)
|
25 | 655 |
| 9Y-1766 |
TANK AS
|
1 | 655 |
| 9Y-1767 |
TANK AS
|
1 | 655 |
