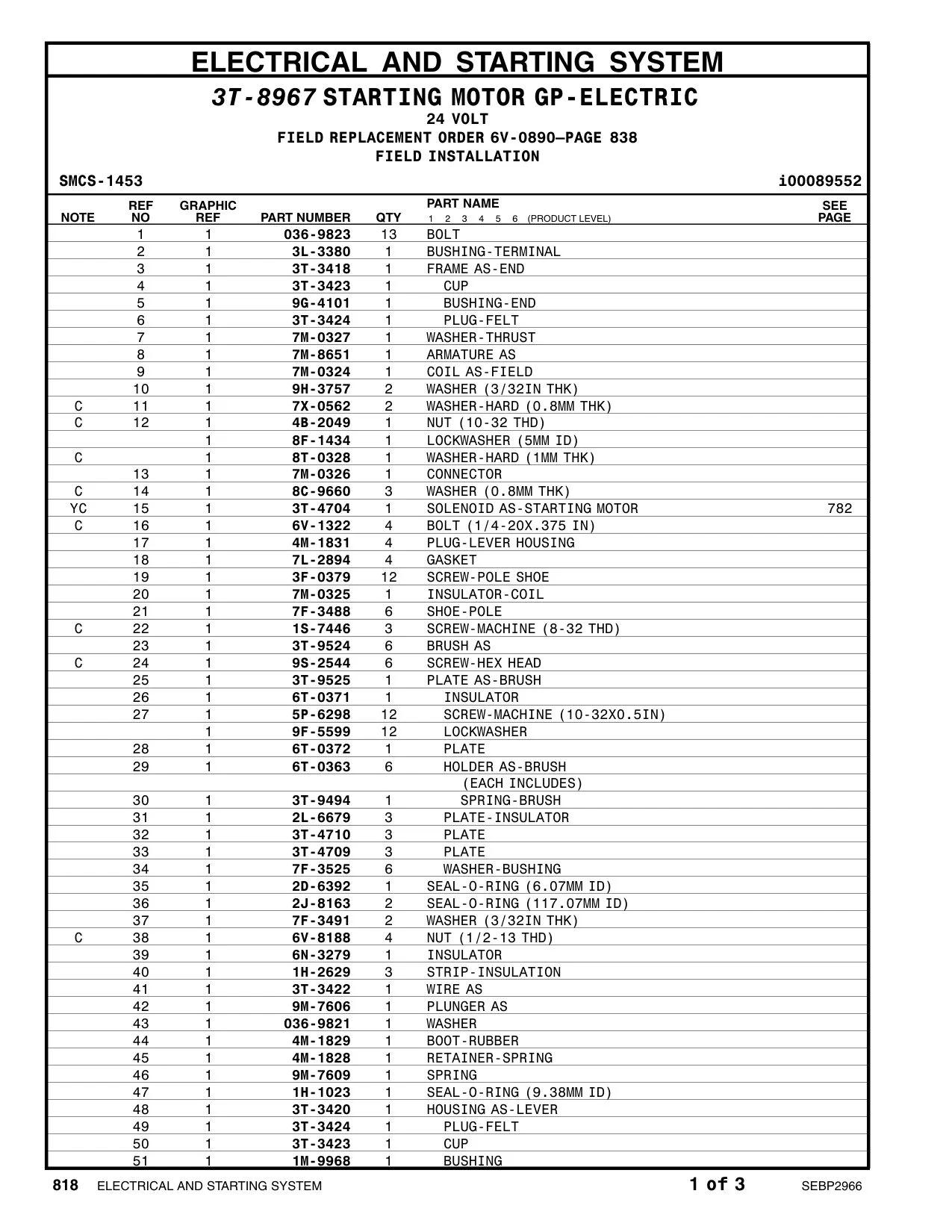

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 036-9823 |
BOLT (1/4-28X1-IN)
螺栓 |
13 | 927 |
| 3L-3380 |
BUSHING-TERMINAL
轴端衬套 |
1 | 927 |
| 3T-3418 |
FRAME AS-END
马达壳端盖组件 |
1 | 927 |
| 3T-3423 |
CUP
杯 |
1 | 927 |
| 3T-3424 |
PLUG-FELT
毡塞 |
1 | 927 |
| 7M-0327 |
WASHER-THRUST (17.4X25.4X1.6-MM THK)
止推垫圈 |
1 | 927 |
| 7M-8651 |
ARMATURE AS
|
1 | 927 |
| 7M-0324 |
COIL AS-FIELD
磁场线圈组件 |
1 | 927 |
| 9H-3757 |
WASHER (0.516X1X0.094-IN THK)
止推垫圈 |
2 | 927 |
| 8F-1434 |
LOCKWASHER
锁紧垫圈 |
1 | 927 |
| 7M-0326 |
CONNECTOR
接头 |
1 | 927 |
| 4M-1831 |
PLUG-LEVER HOUSING
拨 壳螺塞 |
4 | 927 |
| 7L-2894 |
GASKET
密封垫 |
4 | 927 |
| 3F-0379 |
SCREW-POLE SHOE (3/8-24-THD)
|
12 | 927 |
| 7M-0325 |
INSULATOR
绝缘体 |
1 | 927 |
| 7F-3488 |
SHOE-POLE
磁极 |
6 | 927 |
| 3T-9524 |
BRUSH AS
|
6 | 927 |
| 3T-9525 |
PLATE AS-BRUSH
碳刷支架板组件 |
1 | 927 |
| 6T-0371 |
INSULATOR
绝缘体 |
1 | 927 |
| 5P-6298 |
SCREW-MACHINE (10-32X0.5-IN)
机器螺钉 |
12 | 927 |
| 9F-5599 |
LOCKWASHER
锁紧垫圈 |
12 | 927 |
| 6T-0372 |
PLATE
凸轮斜盘 |
1 | 927 |
| 6T-0363 |
HOLDER AS-BRUSH
碳刷座组件 |
6 | 927 |
| 3T-9494 |
SPRING
制动弹簧 |
1 | 927 |
| 2L-6679 |
PLATE-INSULATOR
绝缘板 |
3 | 927 |
| 3T-4710 |
PLATE
凸轮斜盘 |
3 | 927 |
| 3T-4709 |
PLATE
凸轮斜盘 |
3 | 927 |
| 7F-3525 |
WASHER-BUSHING
|
6 | 927 |
| 2D-6392 |
SEAL-O-RING
O 形密封圈 |
1 | 927 |
| 2J-8163 |
SEAL-O-RING
O 形密封圈 |
2 | 927 |
| 7F-3491 |
WASHER (0.516X1X0.094-IN THK)
止推垫圈 |
2 | 927 |
| 6N-3279 |
INSULATOR
绝缘体 |
1 | 927 |
| 1H-2629 |
STRIP-INSULATION
|
3 | 927 |
| 3T-3422 |
WIRE AS
导线组件 |
1 | 927 |
| 9M-7606 |
PLUNGER AS
柱塞组件 |
1 | 927 |
| 036-9821 |
WASHER
卡箍板 |
1 | 927 |
| 4M-1829 |
BOOT-RUBBER
橡胶防尘罩 |
1 | 927 |
| 4M-1828 |
RETAINER-SPRING
弹簧座圈 |
1 | 927 |
| 9M-7609 |
SPRING (SHIFT LEVER)
制动弹簧 |
1 | 927 |
| 1H-1023 |
SEAL-O-RING
O 形密封圈 |
1 | 927 |
| 3T-3420 |
HOUSING AS-LEVER
|
1 | 927 |
| 1M-9968 |
BUSHING
衬套 |
1 | 927 |
