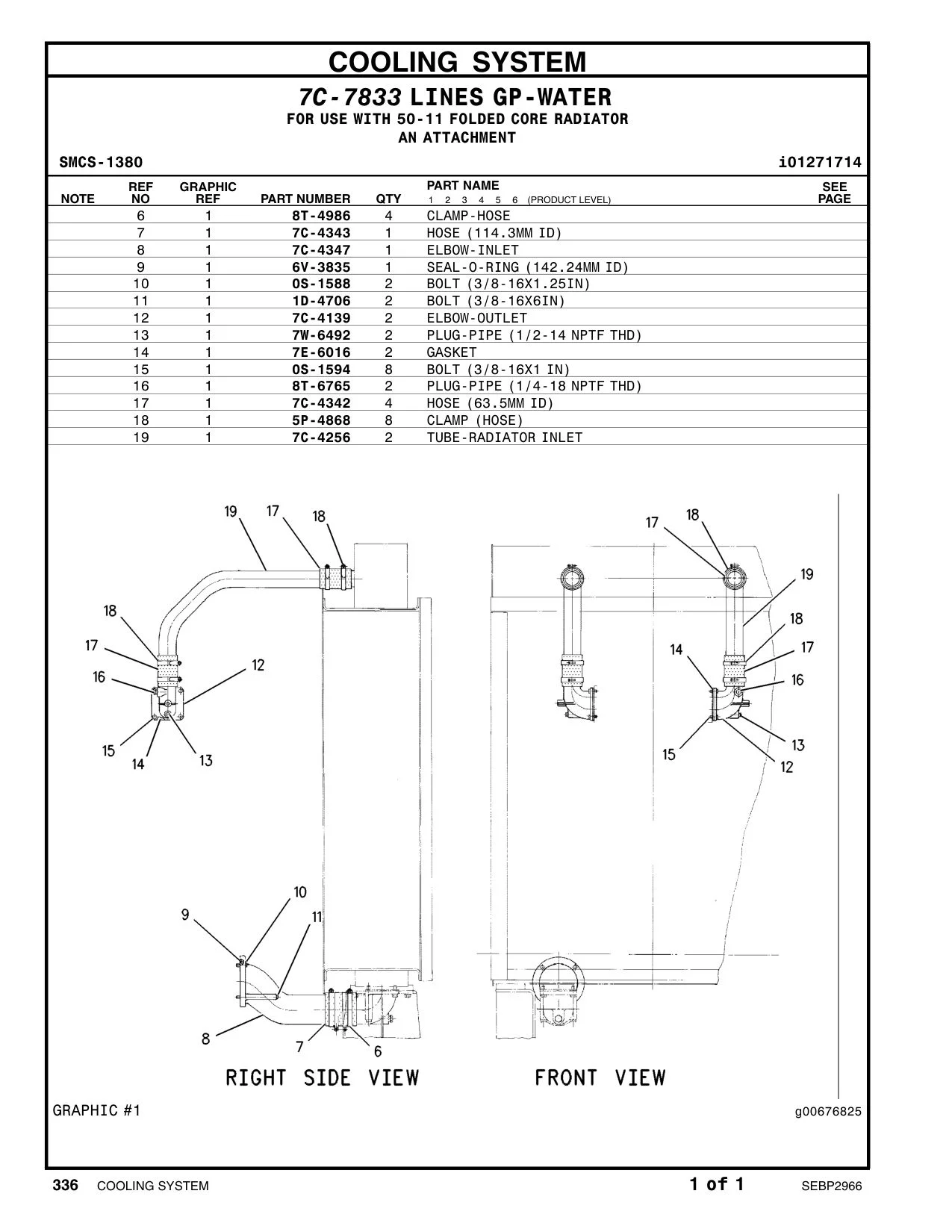

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 8T-4986 |
CLAMP
V 形带箍 |
4 | 445 |
| 7C-4343 |
HOSE (114.3MM ID)
软管 |
1 | 445 |
| 7C-4347 |
ELBOW
弯头 |
1 | 445 |
| 6V-3835 |
SEAL-O-RING
O 形密封圈 |
1 | 445 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
螺栓 |
2 | 445 |
| 1D-4706 |
BOLT (3/8-16X6IN)
螺栓 |
2 | 445 |
| 7C-4139 |
ELBOW-OUTLET
排气弯头 |
2 | 445 |
| 7W-6492 |
PLUG-PIPE
管螺塞 |
2 | 445 |
| 7E-6016 |
GASKET
密封垫 |
2 | 445 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
螺栓 |
8 | 445 |
| 8T-6765 |
PLUG-PIPE
管螺塞 |
2 | 445 |
| 7C-4342 |
HOSE (63.5MM ID)
软管 |
4 | 445 |
| 5P-4868 |
CLAMP-HOSE
软管卡箍 |
8 | 445 |
| 8T-4986 |
CLAMP
V 形带箍 |
4 | 560 |
| 7C-4343 |
HOSE (114.3MM ID)
软管 |
1 | 560 |
| 7C-4347 |
ELBOW
弯头 |
1 | 560 |
| 6V-3835 |
SEAL-O-RING
O 形密封圈 |
1 | 560 |
| 9B-7237 |
BOLT (3/8-16X1.25-IN)
螺栓 |
2 | 560 |
| 8C-7323 |
BOLT (3/8-16X6-IN)
螺栓 |
2 | 560 |
| 7C-4139 |
ELBOW-OUTLET
排气弯头 |
2 | 560 |
| 7W-6492 |
PLUG-PIPE
管螺塞 |
2 | 560 |
| 7E-6016 |
GASKET
密封垫 |
2 | 560 |
| 4L-6454 |
BOLT (3/8-16X1-IN)
螺栓 |
8 | 560 |
| 8T-6765 |
PLUG-PIPE
管螺塞 |
2 | 560 |
| 7C-4342 |
HOSE (63.5MM ID)
软管 |
4 | 560 |
| 5P-4868 |
CLAMP-HOSE
软管卡箍 |
8 | 560 |
