| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

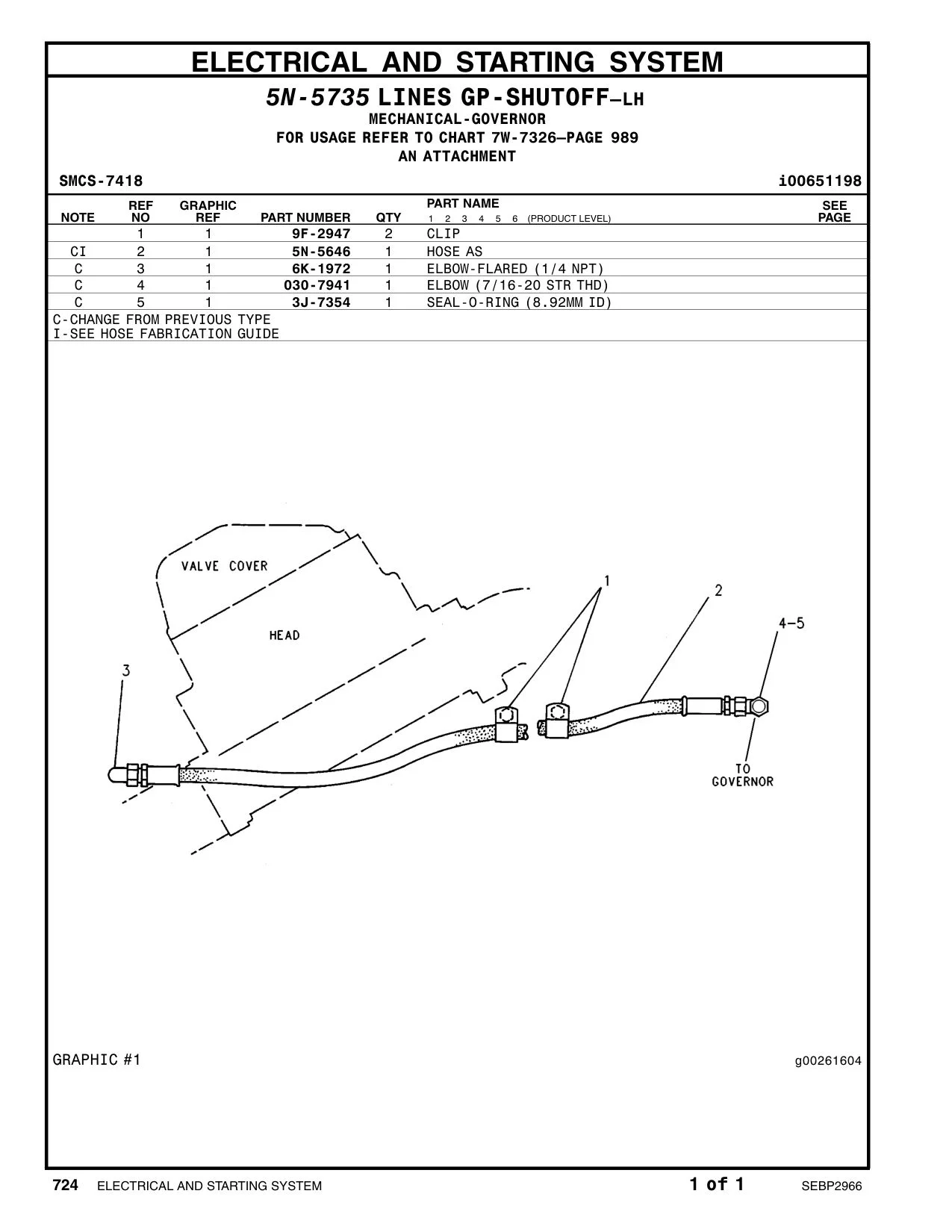

| 9F-2947 |
CLIP
|
2 | 833 |
| 6K-1972 |
ELBOW-FLARED (1/4 NPT)
|
1 | 833 |
| 030-7941 |
ELBOW (7/16-20 STR THD)
|
1 | 833 |
| 3J-7354 |
SEAL-O-RING (8.92MM ID)
|
1 | 833 |
| 7W-0537 |
DOME AS
|
1 | 834 |
| 7W-0524 |
PLUG AS-FILL
|
1 | 834 |
| 7W-0515 |
BOWL AS AVAILABLE REPAIR KIT(S):
|
1 | 834 |
| 7W-0539 |
KIT-SEAL
|
1 | 834 |
| 030-7941 |
ELBOW (7/16-20 STR THD)
|
1 | 1027 |
| 6V-5048 |
SEAL-O-RING (8.92MM ID)
|
2 | 1027 |
| 030-7946 |
ELBOW (7/16-20 STR THD)
|
1 | 1027 |
| 7B-2742 |
BOLT (1/4-20X1.25IN)
|
3 | 1027 |
| 9X-6165 |
WASHER (2.5MM THK)
|
3 | 1027 |
| 4P-7581 |
CLIP (10.5MM ID)
|
1 | 1027 |
| 8N-8471 |
CLAMP-TUBE
|
1 | 1027 |
| 5P-9287 |
WASHER-HARD (2MM THK)
|
3 | 1027 |
| 6N-4379 |
HOSE AS
|
2 | 1027 |
| 7K-9197 |
ELBOW
|
2 | 1027 |
| 5M-2894 |
WASHER (2.5MM THK)
|
1 | 1027 |
| 8M-9024 |
WASHER-HARD (5MM THK)
|
4 | 1027 |
| 0S-1591 |
BOLT (3/8-16X1.5 IN)
|
7 | 1027 |
| 9X-6772 |
STRAP-CABLE
|
6 | 1027 |
| 4P-8134 |
CLIP (10.5MM ID)
|
6 | 1027 |
| 7K-1181 |
STRAP-CABLE (4.00IN DIA)
|
4 | 1027 |
| 7C-9365 |
SWITCH GP-TEMPERATURE (WATER)
|
1 | 1035 |
| 3P-6048 |
HOSE AS
|
1 | 1035 |
| 030-7941 |
ELBOW
|
2 | 1035 |
| 202-2762 |
CLIP (LOOP)
|
2 | 1035 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
2 | 1035 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 1035 |
| 6V-5048 |
SEAL-O-RING
|
2 | 1035 |
| 033-6042 |
SEAL-O-RING
|
1 | 1035 |
| 5P-9617 |
ADAPTER
|
1 | 1035 |
| 6T-6652 |
SWITCH AS-PRESSURE (ENGINE OIL)
|
1 | 1036 |
| 7N-7781 |
HOUSING-RECEPTACLE (14-GA TO 18-GA)
|
1 | 1036 |
| 7N-7779 |
SOCKET-CONNECTOR (14-GA TO 18-GA)
|
1 | 1036 |
| 7N-7780 |
PIN-CONNECTOR (14-GA TO 18-GA)
|
2 | 1036 |
| 6T-6653 |
SWITCH AS-PRESSURE (ENGINE OIL)
|
1 | 1036 |
| 3J-1907 |
SEAL-O-RING
|
2 | 1036 |
| 6L-4207 |
SWITCH AS-TEMPERATURE (INLET MANIFOLD)
|
1 | 1037 |
| 7N-7779 |
SOCKET-CONNECTOR (14-GA TO 18-GA)
|
1 | 1037 |
| 7N-7780 |
PIN-CONNECTOR (14-GA TO 18-GA)
|
2 | 1037 |
| 7N-7781 |
HOUSING-RECEPTACLE (14-GA TO 18-GA)
|
1 | 1037 |
| 9F-2947 |
CLIP
|
2 | 1143 |
| 6K-1972 |
ELBOW-FLARED
|
1 | 1143 |
| 030-7941 |
ELBOW
|
1 | 1143 |
| 3J-7354 |
SEAL-O-RING
|
1 | 1143 |
| 6N-4379 |
HOSE AS
|
2 | 1414 |
| 7K-1181 |
STRAP-CABLE
|
4 | 1414 |
| 8N-8471 |
CLAMP-TUBE
|
1 | 1414 |
