| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

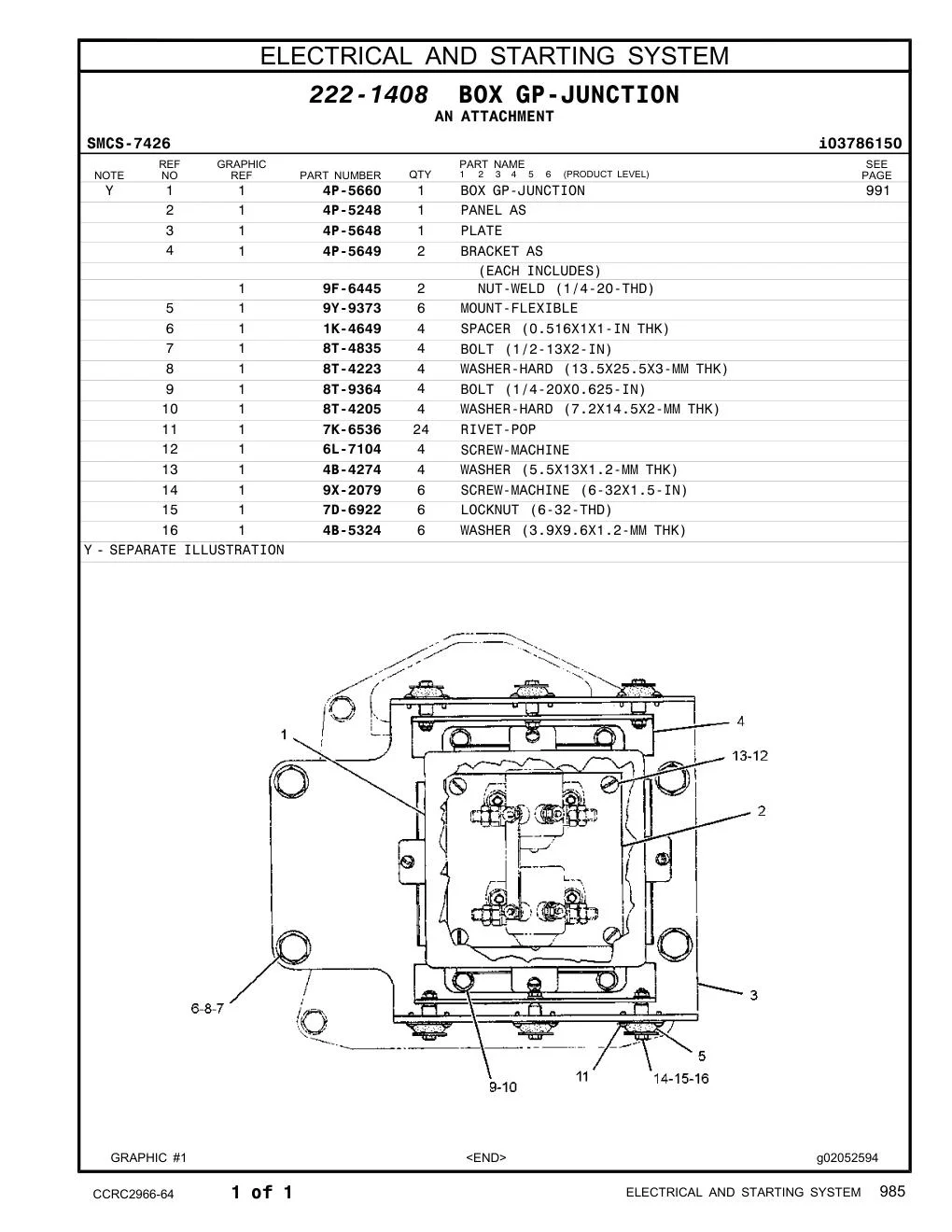

| 4P-5660 |
BOX GP-JUNCTION
|
1 | 1017 |
| 4P-5248 |
PANEL AS
|
1 | 1017 |
| 4P-5649 |
BRACKET AS (EACH INCLUDES)
|
2 | 1017 |
| 9F-6445 |
NUT-WELD (1/4-20-THD)
|
2 | 1017 |
| 9Y-9373 |
MOUNT-FLEXIBLE
|
6 | 1017 |
| 1K-4649 |
SPACER (0.516X1X1-IN THK)
|
4 | 1017 |
| 8T-4835 |
BOLT (1/2-13X2-IN)
|
4 | 1017 |
| 8T-4223 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
4 | 1017 |
| 8T-9364 |
BOLT (1/4-20X0.625-IN)
|
4 | 1017 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 1017 |
| 7K-6536 |
RIVET-POP
|
24 | 1017 |
| 6L-7104 |
SCREW-MACHINE
|
4 | 1017 |
| 4B-4274 |
WASHER (5.5X13X1.2-MM THK)
|
4 | 1017 |
| 9X-2079 |
SCREW-MACHINE (6-32X1.5-IN)
|
6 | 1017 |
| 7D-6922 |
LOCKNUT (6-32-THD)
|
6 | 1017 |
| 4B-5324 |
WASHER (3.9X9.6X1.2-MM THK)
|
6 | 1017 |
| 7E-9932 |
CLIP
|
4 | 1023 |
| 6J-4762 |
SCREW (10-32X0.625-IN)
|
4 | 1023 |
| 7C-2670 |
BOX AS
|
1 | 1024 |
| 8N-9300 |
MOUNT AS (RESILIENT)
|
6 | 1024 |
| 7C-3477 |
CIRCUIT BREAKER AS (10-AMPERE)
|
1 | 1024 |
| 7C-4543 |
CONVERTER-VOLTAGE
|
1 | 1024 |
| 2W-8603 |
MOUNT-FLEXIBLE
|
4 | 1024 |
| 7C-2111 |
SWITCH AS (ELECTRONIC SPEED SWITCH)
|
1 | 1024 |
| 7W-8415 |
RELAY (SLAVE)
|
3 | 1024 |
| 7C-2668 |
DIODE AS
|
2 | 1024 |
| 7C-2671 |
BOARD-TERMINAL
|
2 | 1024 |
| 8S-8158 |
SEAL-WIRE
|
1 | 1024 |
| 5P-6025 |
LOCKWIRE (1-DM)
|
1 | 1024 |
| 2N-2258 |
RIVET-POP
|
16 | 1025 |
| 2W-0394 |
CLAMP
|
1 | 1025 |
| 2W-8602 |
STRIP-TERMINAL
|
2 | 1025 |
| 2W-8603 |
MOUNT-FLEXIBLE
|
4 | 1025 |
| 2W-8684 |
FILM-IDENTIFICATION (TERMINAL MARKER)
|
1 | 1025 |
| 2W-8802 |
STRIP-SEAL
|
4 | 1025 |
| 2W-8803 |
FILM-IDENTIFICATION (TERMINAL MARKER)
|
1 | 1025 |
| 3E-6477 |
RELAY AS (24-VOLT) (SLAVE)
|
1 | 1025 |
| 3L-4566 |
PLUG-BUTTON
|
1 | 1025 |
| 4W-3969 |
BRACKET-RETAINER
|
2 | 1025 |
| 4W-7957 |
PLATE GP-IDENTIFICATION (JUNCTION BOX)
|
1 | 1025 |
| 4W-8471 |
RELAY-TIME DELAY
|
1 | 1025 |
| 5N-4988 |
DIODE AS
|
1 | 1025 |
| 5N-5159 |
JUMPER-STRIP
|
5 | 1025 |
| 5N-9222 |
MANIFOLD-PRESSURE
|
1 | 1025 |
| 6I-0757 |
BOX AS-JUNCTION
|
1 | 1025 |
| 6I-0897 |
PLATE
|
1 | 1025 |
| 6T-3644 |
CIRCUIT BREAKER AS (20-AMPERE)
|
1 | 1025 |
| 6V-8376 |
SCREW-MACHINE (8-32X0.25-IN)
|
2 | 1025 |
| 9B-7233 |
LOCKWASHER
|
2 | 1025 |
| 6T-6651 |
SWITCH AS-PRESSURE (ENGINE OIL)
|
1 | 1025 |
