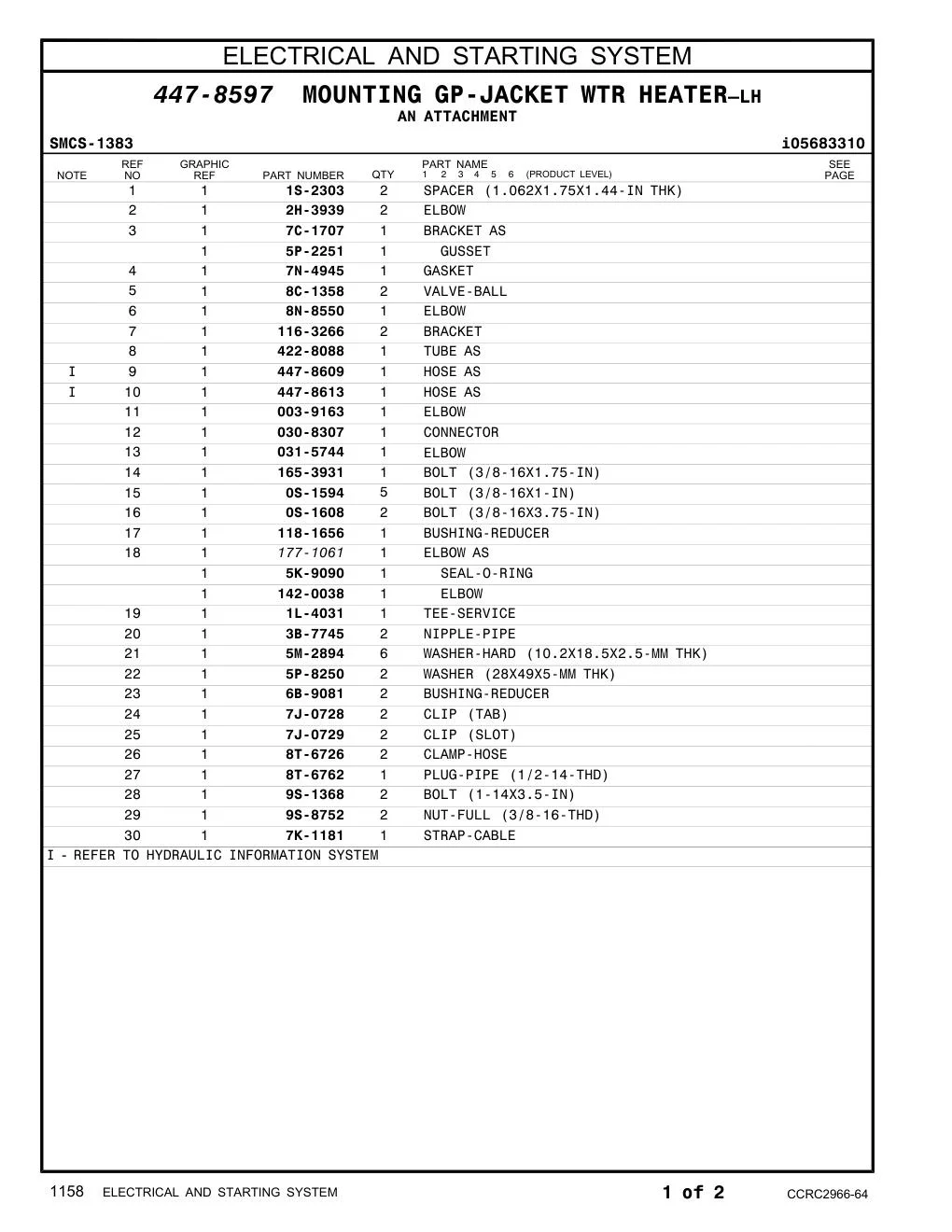

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1S-2303 |
SPACER (1.062X1.75X1.44-IN THK)
|
2 | 1190 |
| 2H-3939 |
ELBOW
|
2 | 1190 |
| 7C-1707 |
BRACKET AS
|
1 | 1190 |
| 5P-2251 |
GUSSET
|
1 | 1190 |
| 7N-4945 |
GASKET
|
1 | 1190 |
| 8C-1358 |
VALVE-BALL
|
2 | 1190 |
| 8N-8550 |
ELBOW
|
1 | 1190 |
| 116-3266 |
BRACKET
|
2 | 1190 |
| 422-8088 |
TUBE AS
|
1 | 1190 |
| 447-8609 |
HOSE AS
|
1 | 1190 |
| 003-9163 |
ELBOW
|
1 | 1190 |
| 030-8307 |
CONNECTOR
|
1 | 1190 |
| 031-5744 |
ELBOW
|
1 | 1190 |
| 165-3931 |
BOLT (3/8-16X1.75-IN)
|
1 | 1190 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
5 | 1190 |
| 0S-1608 |
BOLT (3/8-16X3.75-IN)
|
2 | 1190 |
| 118-1656 |
BUSHING-REDUCER
|
1 | 1190 |
| 177-1061 |
ELBOW AS
|
1 | 1190 |
| 5K-9090 |
SEAL-O-RING
|
1 | 1190 |
| 142-0038 |
ELBOW
|
1 | 1190 |
| 1L-4031 |
TEE-SERVICE
|
1 | 1190 |
| 3B-7745 |
NIPPLE-PIPE
|
2 | 1190 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
6 | 1190 |
| 5P-8250 |
WASHER (28X49X5-MM THK)
|
2 | 1190 |
| 6B-9081 |
BUSHING-REDUCER
|
2 | 1190 |
| 7J-0728 |
CLIP (TAB)
|
2 | 1190 |
| 7J-0729 |
CLIP (SLOT)
|
2 | 1190 |
| 8T-6726 |
CLAMP-HOSE
|
2 | 1190 |
| 8T-6762 |
PLUG-PIPE (1/2-14-THD)
|
1 | 1190 |
| 9S-1368 |
BOLT (1-14X3.5-IN)
|
2 | 1190 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
2 | 1190 |
| 7K-1181 |
STRAP-CABLE
|
1 | 1190 |
