| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 6V-8260 |
SEAL-O-RING (123.42MM ID)
|
1 | 613 |
| 061-9457 |
SEAL-O-RING
|
1 | 613 |
| 8N-9392 |
COUPLING-GOVERNOR DRIVE
|
1 | 613 |
| 4W-0216 |
GEAR-BEVEL (45 TEETH)
|
1 | 613 |
| 4W-0215 |
PINION-GOVERNOR DRIVE
|
1 | 613 |
| 7N-5700 |
ADAPTER
|
1 | 613 |
| 2B-2695 |
BOLT (5/16-18X.875IN)
|
4 | 613 |
| 6J-2244 |
SEAL-O-RING
|
1 | 613 |
| 7N-5694 |
SHIM
|
1 | 613 |
| 1W-3437 |
HOUSING AS-DRIVE
|
1 | 613 |
| 1W-9379 |
BEARING-SLEEVE
|
1 | 613 |
| 1T-0550 |
PIN-SPRING
|
1 | 613 |
| 9F-2247 |
PLUG-PIPE
|
4 | 613 |
| 9S-4182 |
PLUG (7/16-20 THD)
|
1 | 613 |
| 1A-8651 |
BOLT (5/8-11X4.5IN)
|
2 | 613 |
| 0S-1595 |
BOLT (1/2-13X1.25IN)
|
2 | 613 |
| 6V-3348 |
SEAL-O-RING
|
2 | 613 |
| 7N-5696 |
COVER
|
1 | 613 |
| 7N-5695 |
GASKET
|
1 | 613 |
| 0S-1594 |
BOLT
|
5 | 613 |
| 5M-2894 |
WASHER (2.5MM THK)
|
9 | 613 |
| 9M-1974 |
WASHER-HARD (2MM THK)
|
4 | 613 |
| 6L-3401 |
GASKET-GOVERNOR HOUSING
|
1 | 613 |
| 9S-8002 |
PLUG-O-RING (7/16-20 THD)
|
1 | 613 |
| 6V-5048 |
SEAL-O-RING (8.92MM ID)
|
2 | 613 |
| 1A-0168 |
BOLT (1/2-13X7.5IN)
|
2 | 613 |
| 4H-8158 |
RING-RETAINER
|
1 | 613 |
| 0S-1588 |
BOLT
|
4 | 613 |
| 0S-1591 |
BOLT (3/8-16X1.5IN)
|
6 | 613 |
| 8M-5255 |
SEAL-O-RING (120.24MM ID)
|
1 | 613 |
| 4W-3148 |
ADAPTER AS
|
1 | 613 |
| 7N-5244 |
BEARING-SLEEVE
|
1 | 613 |
| 5P-0840 |
SEAL-O-RING (12.29MM ID)
|
1 | 613 |
| 4W-0162 |
PLATE
|
1 | 613 |
| 5P-8247 |
WASHER-HARD (3.5MM THK)
|
2 | 613 |
| 0S-1585 |
BOLT (1/2-13X1.50IN)
|
3 | 613 |
| 5P-8245 |
WASHER (3MM THK)
|
3 | 613 |

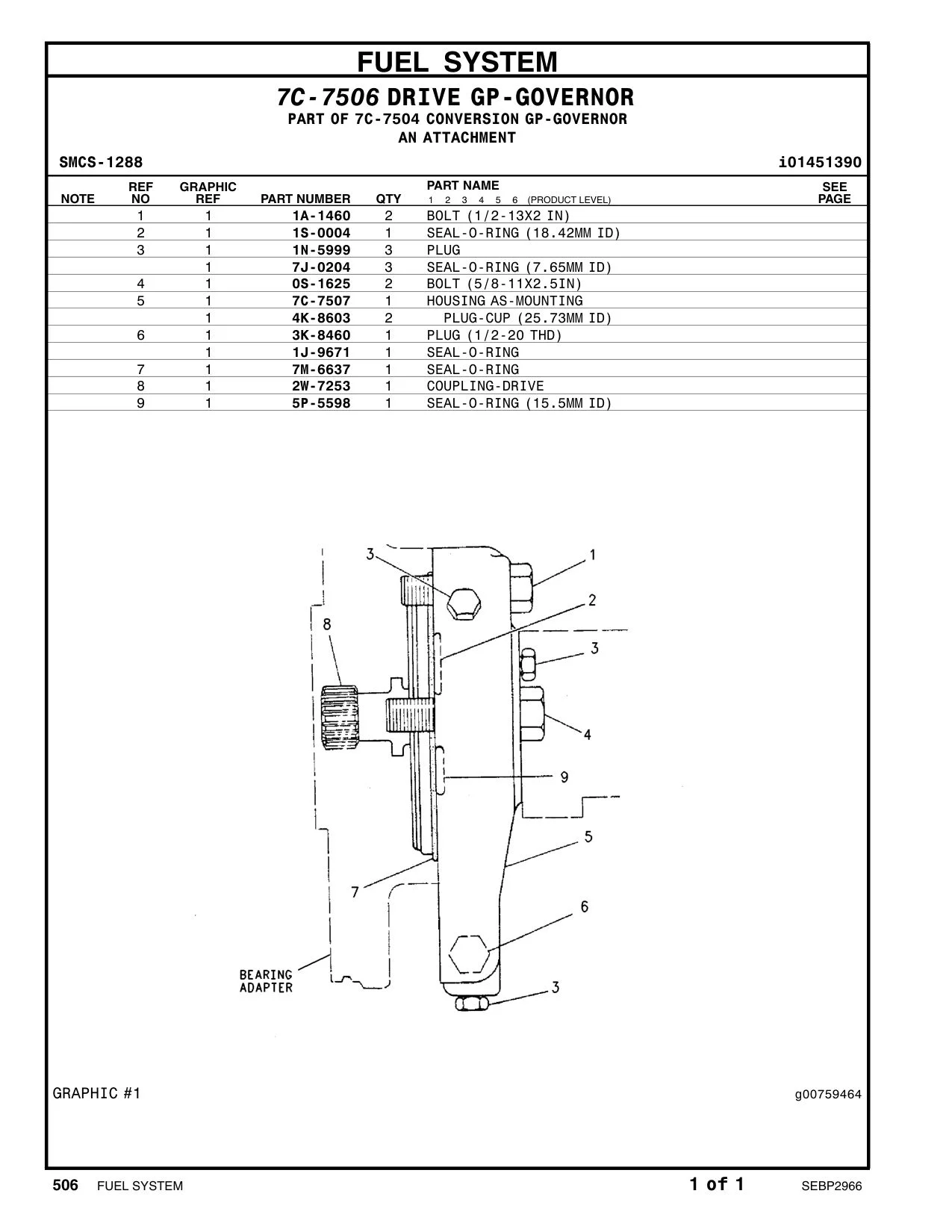

| 1A-1460 |
BOLT (1/2-13X2 IN)
|
2 | 615 |
| 1S-0004 |
SEAL-O-RING (18.42MM ID)
|
1 | 615 |
| 1N-5999 |
PLUG
|
3 | 615 |
| 7J-0204 |
SEAL-O-RING (7.65MM ID)
|
3 | 615 |
| 0S-1625 |
BOLT (5/8-11X2.5IN)
|
2 | 615 |
| 7C-7507 |
HOUSING AS-MOUNTING
|
1 | 615 |
| 4K-8603 |
PLUG-CUP (25.73MM ID)
|
2 | 615 |
| 1J-9671 |
SEAL-O-RING
|
1 | 615 |
| 7M-6637 |
SEAL-O-RING
|
1 | 615 |
| 2W-7253 |
COUPLING-DRIVE
|
1 | 615 |
| 5P-5598 |
SEAL-O-RING (15.5MM ID)
|
1 | 615 |
| 6V-8260 |
SEAL-O-RING
|
1 | 830 |
| 061-9457 |
SEAL-O-RING
|
1 | 830 |
