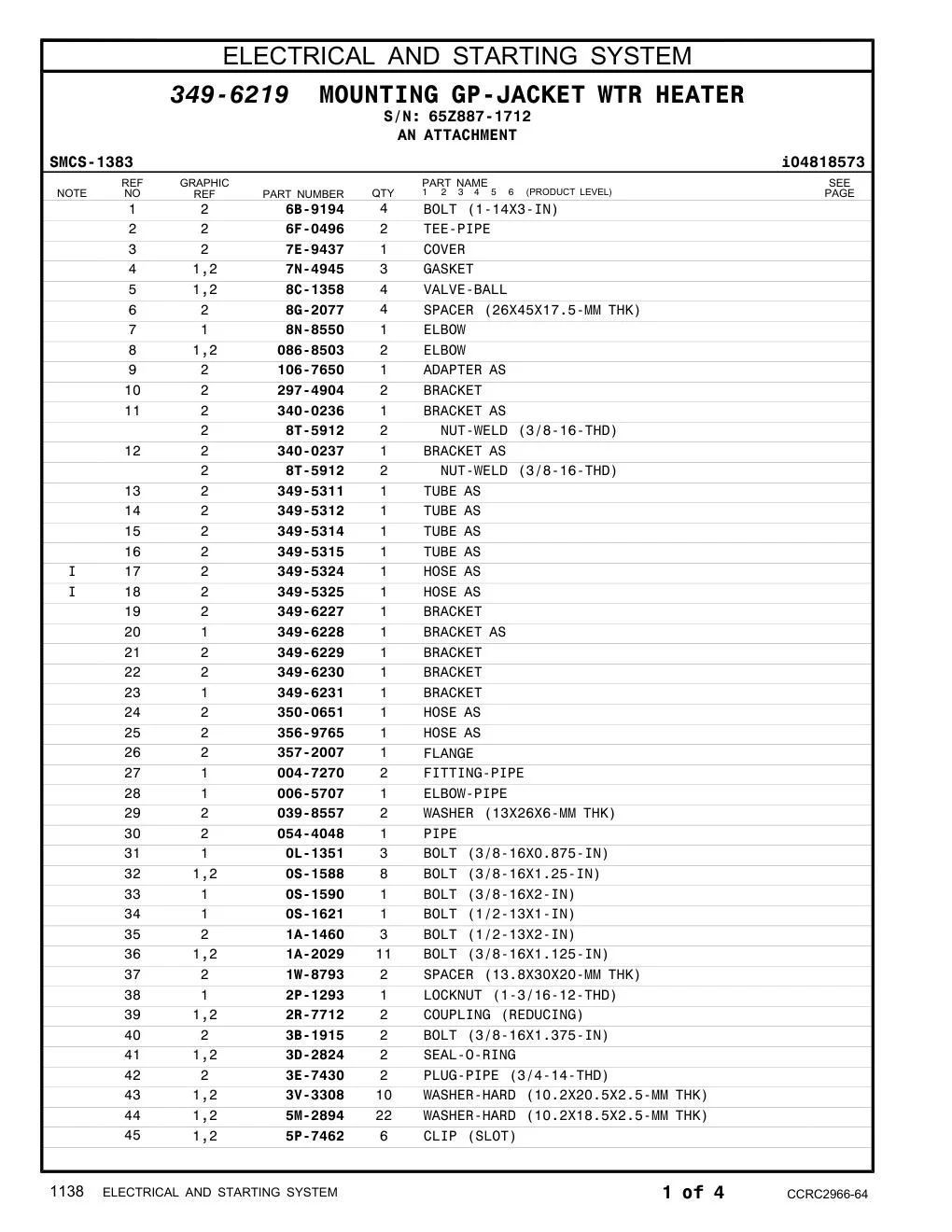

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 6B-9194 |
BOLT (1-14X3-IN)
|
4 | 1170 |
| 6F-0496 |
TEE-PIPE
|
2 | 1170 |
| 7E-9437 |
COVER
|
1 | 1170 |
| 7N-4945 |
GASKET
|
3 | 1170 |
| 8C-1358 |
VALVE-BALL
|
4 | 1170 |
| 8G-2077 |
SPACER (26X45X17.5-MM THK)
|
4 | 1170 |
| 8N-8550 |
ELBOW
|
1 | 1170 |
| 086-8503 |
ELBOW
|
2 | 1170 |
| 106-7650 |
ADAPTER AS
|
1 | 1170 |
| 297-4904 |
BRACKET
|
2 | 1170 |
| 340-0236 |
BRACKET AS
|
1 | 1170 |
| 8T-5912 |
NUT-WELD (3/8-16-THD)
|
2 | 1170 |
| 340-0237 |
BRACKET AS
|
1 | 1170 |
| 349-5311 |
TUBE AS
|
1 | 1170 |
| 349-5312 |
TUBE AS
|
1 | 1170 |
| 349-5314 |
TUBE AS
|
1 | 1170 |
| 349-5315 |
TUBE AS
|
1 | 1170 |
| 349-5325 |
HOSE AS
|
1 | 1170 |
| 349-6227 |
BRACKET
|
1 | 1170 |
| 349-6228 |
BRACKET AS
|
1 | 1170 |
| 349-6229 |
BRACKET
|
1 | 1170 |
| 349-6230 |
BRACKET
|
1 | 1170 |
| 349-6231 |
BRACKET
|
1 | 1170 |
| 350-0651 |
HOSE AS
|
1 | 1170 |
| 356-9765 |
HOSE AS
|
1 | 1170 |
| 357-2007 |
FLANGE
|
1 | 1170 |
| 004-7270 |
FITTING-PIPE
|
2 | 1170 |
| 006-5707 |
ELBOW-PIPE
|
1 | 1170 |
| 039-8557 |
WASHER (13X26X6-MM THK)
|
2 | 1170 |
| 054-4048 |
PIPE
|
1 | 1170 |
| 0L-1351 |
BOLT (3/8-16X0.875-IN)
|
3 | 1170 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
8 | 1170 |
| 0S-1590 |
BOLT (3/8-16X2-IN)
|
1 | 1170 |
| 0S-1621 |
BOLT (1/2-13X1-IN)
|
1 | 1170 |
| 1A-1460 |
BOLT (1/2-13X2-IN)
|
3 | 1170 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
11 | 1170 |
| 1W-8793 |
SPACER (13.8X30X20-MM THK)
|
2 | 1170 |
| 2P-1293 |
LOCKNUT (1-3/16-12-THD)
|
1 | 1170 |
| 2R-7712 |
COUPLING (REDUCING)
|
2 | 1170 |
| 3B-1915 |
BOLT (3/8-16X1.375-IN)
|
2 | 1170 |
| 3D-2824 |
SEAL-O-RING
|
2 | 1170 |
| 3E-7430 |
PLUG-PIPE (3/4-14-THD)
|
2 | 1170 |
| 3V-3308 |
WASHER-HARD (10.2X20.5X2.5-MM THK)
|
10 | 1170 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
22 | 1170 |
| 5P-7462 |
CLIP (SLOT)
|
6 | 1170 |
| 5P-7463 |
CLIP (TAB)
|
6 | 1171 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
2 | 1171 |
| 5P-8250 |
WASHER (28X49X5-MM THK)
|
4 | 1171 |
| 6B-9081 |
BUSHING-REDUCER
|
2 | 1171 |
| 6V-0683 |
GROMMET
|
6 | 1171 |
