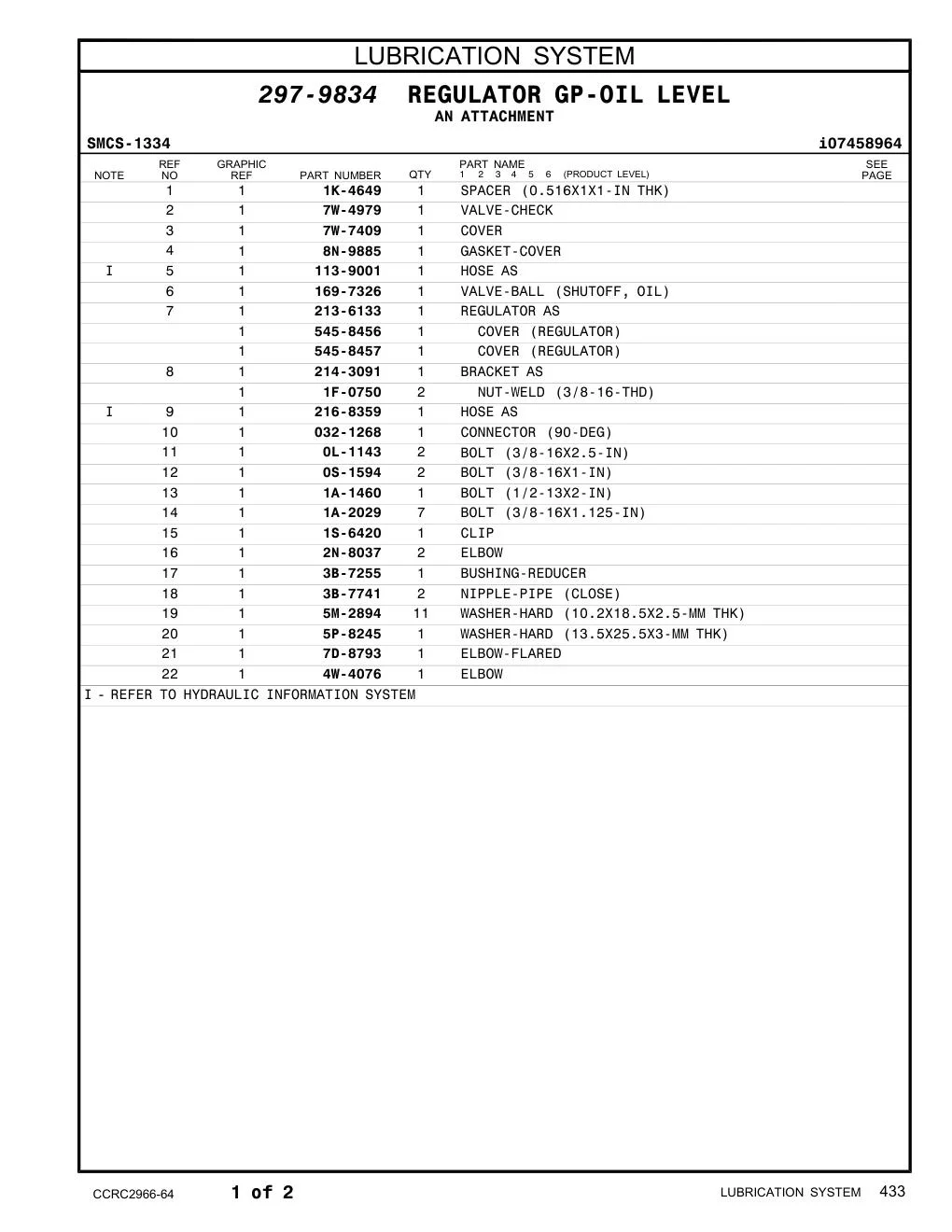

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1K-4649 |
SPACER (0.516X1X1-IN THK)
|
1 | 465 |
| 7W-4979 |
VALVE-CHECK
|
1 | 465 |
| 7W-7409 |
COVER
|
1 | 465 |
| 8N-9885 |
GASKET-COVER
|
1 | 465 |
| 113-9001 |
HOSE AS
|
1 | 465 |
| 169-7326 |
VALVE-BALL (SHUTOFF, OIL)
|
1 | 465 |
| 545-8456 |
COVER (REGULATOR)
|
1 | 465 |
| 545-8457 |
COVER (REGULATOR)
|
1 | 465 |
| 214-3091 |
BRACKET AS
|
1 | 465 |
| 1F-0750 |
NUT-WELD (3/8-16-THD)
|
2 | 465 |
| 216-8359 |
HOSE AS
|
1 | 465 |
| 032-1268 |
CONNECTOR (90-DEG)
|
1 | 465 |
| 0L-1143 |
BOLT (3/8-16X2.5-IN)
|
2 | 465 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
2 | 465 |
| 1A-1460 |
BOLT (1/2-13X2-IN)
|
1 | 465 |
| 1A-2029 |
BOLT (3/8-16X1.125-IN)
|
7 | 465 |
| 1S-6420 |
CLIP
|
1 | 465 |
| 2N-8037 |
ELBOW
|
2 | 465 |
| 3B-7255 |
BUSHING-REDUCER
|
1 | 465 |
| 3B-7741 |
NIPPLE-PIPE (CLOSE)
|
2 | 465 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
11 | 465 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
1 | 465 |
| 7D-8793 |
ELBOW-FLARED
|
1 | 465 |
| 4W-4076 |
ELBOW
|
1 | 465 |
