| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

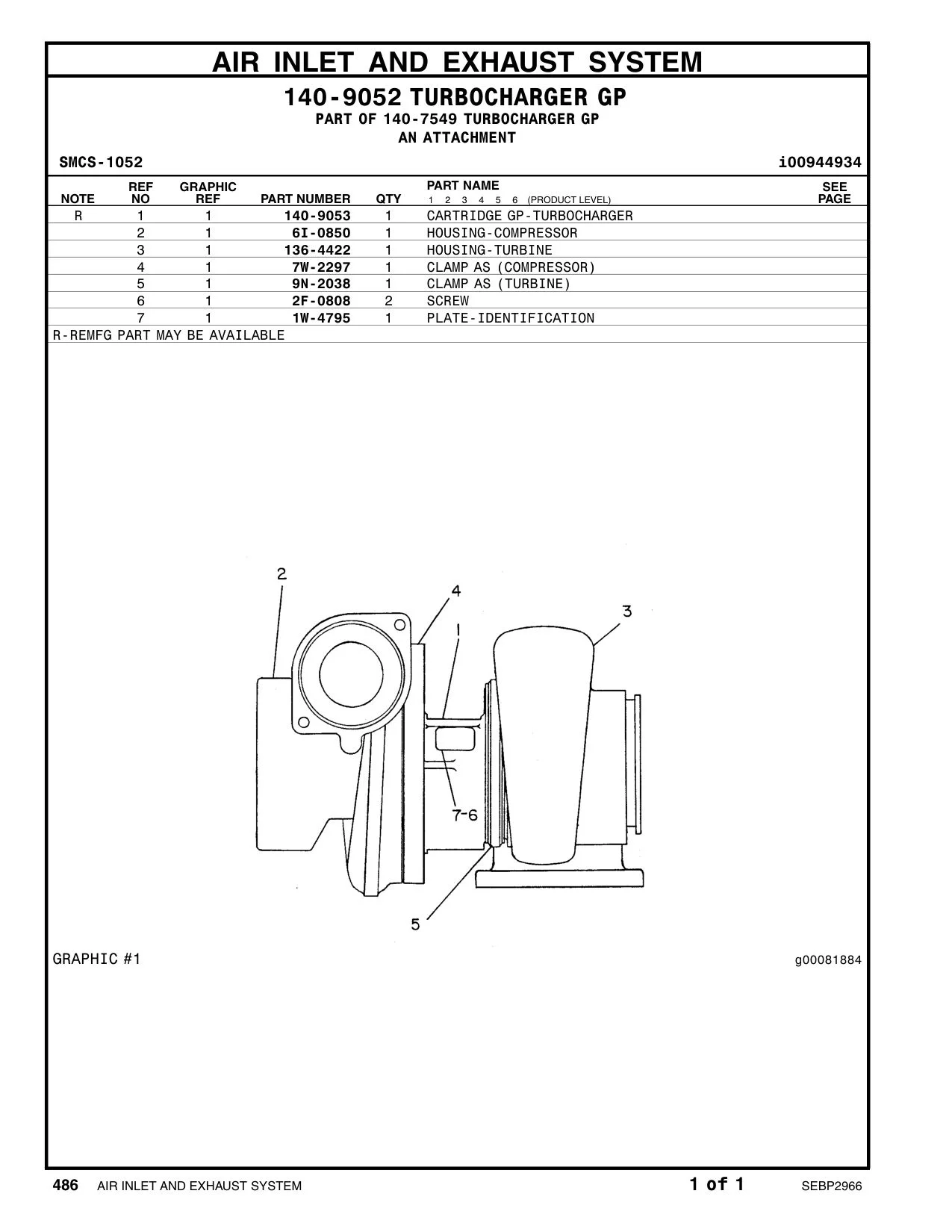

| 140-9052 |
TURBOCHARGER GP
|
2 | 594 |
| 141-9290 |
BELLOWS AS
|
2 | 594 |
| 121-5736 |
GASKET-TURBOCHARGER
|
2 | 594 |
| 2N-2765 |
BOLT-HIGH TEMPERATURE (3/8-16X1.75IN)
|
8 | 594 |
| 168-7800 |
LOCKNUT (HIGH TEMPERATURE)
|
8 | 594 |
| 139-1575 |
GASKET-EXHAUST MANIFOLD
|
4 | 594 |
| 3B-1915 |
BOLT (3/8-16X1.37 IN)
|
16 | 594 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5MM THK)
|
16 | 594 |
| 188-0473 |
FLANGE-HALF
|
4 | 594 |
| 188-0472 |
FLANGE-HALF
|
4 | 594 |
| 6I-0850 |
HOUSING-COMPRESSOR
|
1 | 595 |
| 136-4422 |
HOUSING-TURBINE
|
1 | 595 |
| 7W-2297 |
CLAMP AS (COMPRESSOR)
|
1 | 595 |
| 9N-2038 |
CLAMP AS (TURBINE)
|
1 | 595 |
| 2F-0808 |
SCREW
|
2 | 595 |
| 1W-4795 |
PLATE-IDENTIFICATION
|
1 | 595 |
| 140-9052 |
TURBOCHARGER GP
|
2 | 800 |
| 207-1388 |
BELLOWS AS
|
2 | 800 |
| 121-5736 |
GASKET (TURBOCHARGER)
|
2 | 800 |
| 2N-2765 |
BOLT-HIGH TEMPERATURE (3/8-16X1.75-IN)
|
8 | 800 |
| 2N-2766 |
LOCKNUT (3/8-16-THD) (HIGH TEMPERATURE)
|
8 | 800 |
| 453-7799 |
GASKET (EXHAUST MANIFOLD)
|
4 | 800 |
| 6V-6753 |
BOLT-HIGH TEMPERATURE (3/8-16X1.375-IN)
|
16 | 800 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
16 | 800 |
| 188-0473 |
FLANGE-HALF
|
1 | 800 |
| 188-0472 |
FLANGE-HALF
|
4 | 800 |
| 6I-0850 |
HOUSING-COMPRESSOR
|
1 | 801 |
| 136-4422 |
HOUSING
|
1 | 801 |
| 7W-2297 |
CLAMP AS (COMPRESSOR)
|
1 | 801 |
| 9N-2038 |
CLAMP AS-TURBINE
|
1 | 801 |
| 2F-0808 |
SCREW (6X0.25-IN)
|
2 | 801 |
| 1W-4795 |
PLATE-IDENTIFICATION (TURBOCHARGER CARTRIDGE)
|
1 | 801 |
