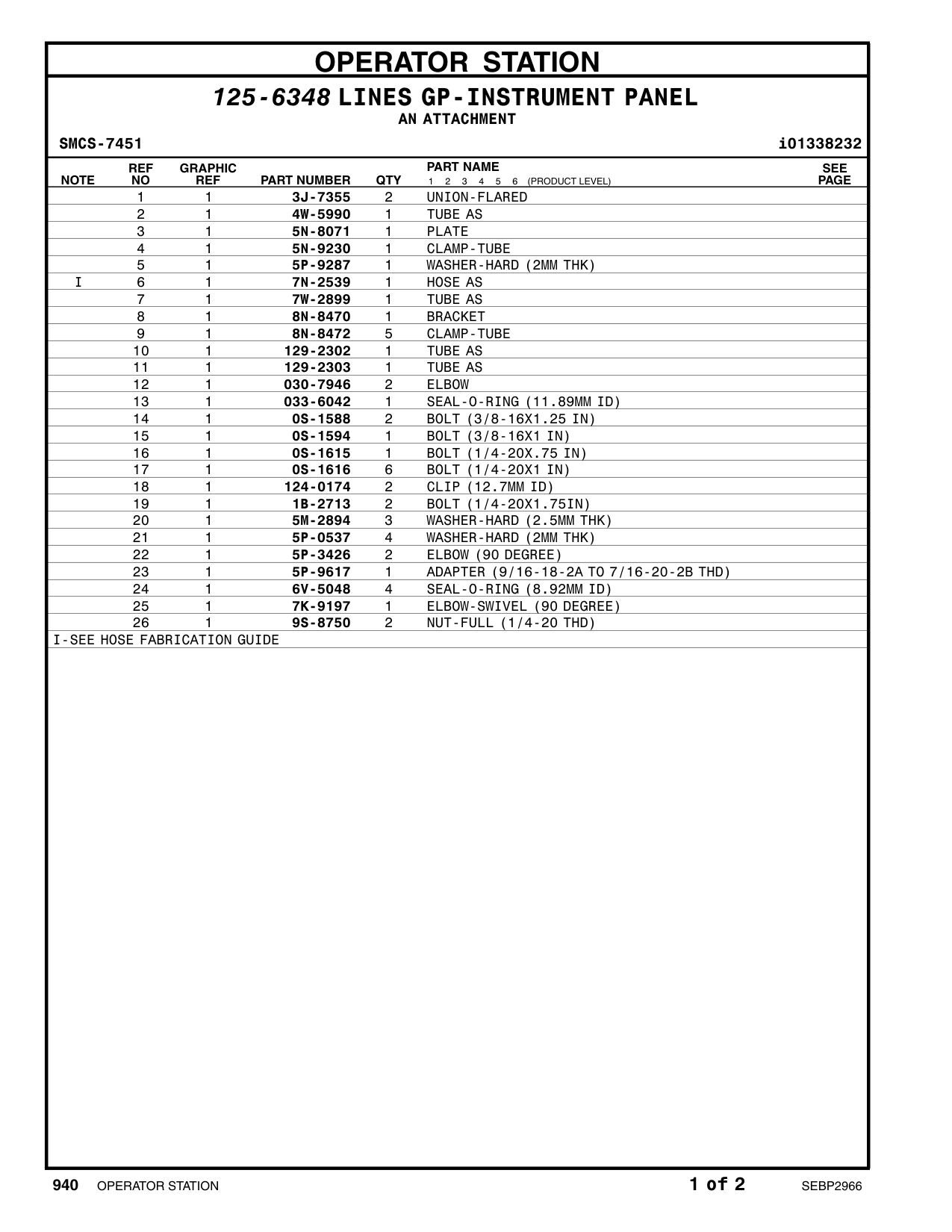

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 3J-7355 |
UNION-FLARED
|
2 | 1049 |
| 4W-5990 |
TUBE AS
|
1 | 1049 |
| 5N-8071 |
PLATE
|
1 | 1049 |
| 5N-9230 |
CLAMP-TUBE
|
1 | 1049 |
| 5P-9287 |
WASHER-HARD (2MM THK)
|
1 | 1049 |
| 7N-2539 |
HOSE AS
|
1 | 1049 |
| 7W-2899 |
TUBE AS
|
1 | 1049 |
| 8N-8470 |
BRACKET
|
1 | 1049 |
| 8N-8472 |
CLAMP-TUBE
|
5 | 1049 |
| 129-2303 |
TUBE AS
|
1 | 1049 |
| 030-7946 |
ELBOW
|
2 | 1049 |
| 033-6042 |
SEAL-O-RING (11.89MM ID)
|
1 | 1049 |
| 0S-1588 |
BOLT (3/8-16X1.25 IN)
|
2 | 1049 |
| 0S-1594 |
BOLT (3/8-16X1 IN)
|
1 | 1049 |
| 0S-1615 |
BOLT (1/4-20X.75 IN)
|
1 | 1049 |
| 0S-1616 |
BOLT (1/4-20X1 IN)
|
6 | 1049 |
| 124-0174 |
CLIP (12.7MM ID)
|
2 | 1049 |
| 1B-2713 |
BOLT (1/4-20X1.75IN)
|
2 | 1049 |
| 5M-2894 |
WASHER-HARD (2.5MM THK)
|
3 | 1049 |
| 5P-0537 |
WASHER-HARD (2MM THK)
|
4 | 1049 |
| 5P-3426 |
ELBOW (90 DEGREE)
|
2 | 1049 |
| 5P-9617 |
ADAPTER (9/16-18-2A TO 7/16-20-2B THD)
|
1 | 1049 |
| 6V-5048 |
SEAL-O-RING (8.92MM ID)
|
4 | 1049 |
| 7K-9197 |
ELBOW-SWIVEL (90 DEGREE)
|
1 | 1049 |
| 9S-8750 |
NUT-FULL (1/4-20 THD)
|
2 | 1049 |
| 3J-7355 |
UNION-FLARED
|
2 | 1404 |
| 4W-5990 |
TUBE AS
|
1 | 1404 |
| 5N-8071 |
PLATE
|
1 | 1404 |
| 5N-9230 |
CLAMP-TUBE
|
1 | 1404 |
| 5P-9287 |
WASHER-HARD (7.2X32X2-MM THK)
|
1 | 1404 |
| 7N-2539 |
HOSE AS
|
1 | 1404 |
| 7W-2899 |
TUBE AS
|
1 | 1404 |
| 8N-8470 |
BRACKET
|
1 | 1404 |
| 8N-8472 |
CLAMP-TUBE
|
5 | 1404 |
| 129-2303 |
TUBE AS
|
1 | 1404 |
| 202-2762 |
CLIP (LOOP)
|
2 | 1404 |
| 030-7946 |
ELBOW
|
2 | 1404 |
| 153-4906 |
SEAL-O-RING
|
1 | 1404 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
2 | 1404 |
| 0S-1594 |
BOLT (3/8-16X1-IN)
|
1 | 1404 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
|
1 | 1404 |
| 0S-1616 |
BOLT (1/4-20X1-IN)
|
6 | 1404 |
| 1B-2713 |
BOLT (1/4-20X1.75-IN)
|
2 | 1404 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
3 | 1404 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 1404 |
| 5P-3426 |
ELBOW
|
2 | 1404 |
| 5P-9617 |
ADAPTER
|
1 | 1404 |
| 6V-5048 |
SEAL-O-RING
|
4 | 1404 |
| 7K-9197 |
ELBOW
|
1 | 1404 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
|
2 | 1404 |
