| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 186-3735 |
PIN-CONNECTOR (16-GA TO 18-GA)
|
7 | 1436 |
| 3E-3389 |
WEDGE-RECEPTACLE LOCK (8-PIN)
|
1 | 1436 |
| 8T-8737 |
PLUG-SEAL
|
1 | 1436 |
| 7U-4891 |
SCREW (10-32X1-IN)
|
4 | 1461 |
| 186-3736 |
SOCKET-CONNECTOR (16-GA TO 18-GA)
|
9 | 1461 |
| 8T-8737 |
PLUG-SEAL
|
1 | 1461 |
| 100-5566 |
BEZEL
|
1 | 1461 |
| 113-5183 |
SOCKET-LAMP
|
2 | 1461 |
| 113-5184 |
TERMINAL-RECEPTACLE (16-GA TO 18-GA)
|
4 | 1461 |
| 118-5075 |
LAMP (12-VOLT)
|
2 | 1461 |
| 155-2259 |
WEDGE-PLUG LOCK (8-PIN)
|
1 | 1461 |
| 155-2265 |
KIT-CONNECTING PLUG (8-PIN) (KIT INCLUDES PLUG AS & WEDGE)
|
1 | 1461 |

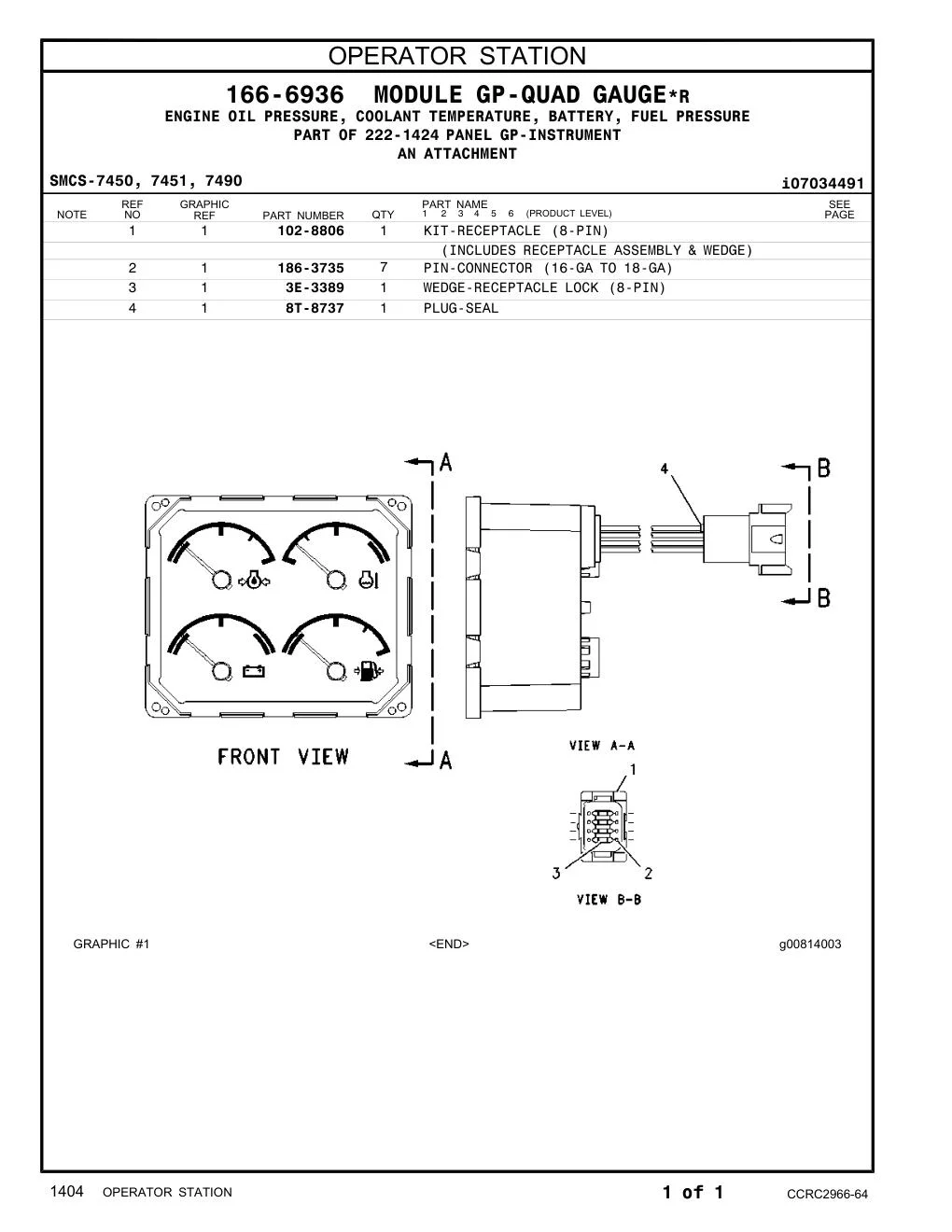

| 166-6936 |
MODULE GP-QUAD GAUGE
|
1 | 1461 |
| 4B-4274 |
WASHER (5.5X13X1.2-MM THK)
|
4 | 1461 |
| 6V-8378 |
NUT (10-32-THD)
|
4 | 1461 |
| 3N-9015 |
BOX GP-INSTRUMENT PANEL
|
1 | 1462 |
| 4W-0506 |
GAUGE GP-PRESSURE (FUEL)
|
1 | 1462 |
| 3N-4427 |
SCREW (10-32X1/2-IN)
|
8 | 1462 |
| 3N-8269 |
STRIP
|
2 | 1462 |
| 3N-5988 |
FILM-IDENTIFICATION (FUEL PRESSURE)
|
1 | 1462 |
| 7W-5221 |
PANEL-INSTRUMENT
|
1 | 1462 |
| 4W-0506 |
GAUGE GP-PRESSURE (ENGINE OIL)
|
1 | 1462 |
| 3N-5986 |
FILM-IDENTIFICATION (ENGINE OIL PRESSURE)
|
1 | 1462 |
| 4W-2683 |
GAUGE GP-TEMPERATURE (JACKET WATER)
|
1 | 1462 |
| 3N-5987 |
FILM-IDENTIFICATION (JACKET WATER TEMPERATURE)
|
1 | 1462 |
| 5N-8291 |
BOX GP-INSTRUMENT PANEL
|
1 | 1463 |
| 4W-2683 |
GAUGE GP-TEMPERATURE (JACKET WATER)
|
1 | 1463 |
| 4B-2049 |
NUT (10-32-THD)
|
2 | 1463 |
| 8F-1434 |
LOCKWASHER
|
2 | 1463 |
| 3N-5987 |
FILM-IDENTIFICATION (JACKET WATER TEMPERATURE)
|
1 | 1463 |
| 4W-2683 |
GAUGE GP-TEMPERATURE (ENGINE OIL)
|
1 | 1463 |
| 4W-0511 |
GAUGE AS-TEMPERATURE (AIR MANIFOLD)
|
1 | 1463 |
| 2W-9215 |
FILM-GAUGE (MANIFOLD AIR TEMPERATURE)
|
1 | 1463 |
| 3N-4416 |
PYROMETER GP (EXHAUST)
|
1 | 1463 |
| 7W-5222 |
PANEL-INSTRUMENT
|
1 | 1463 |
| 4W-0508 |
INDICATOR AS-DIFF PRESSURE (OIL FILTER)
|
1 | 1463 |
| 4W-0506 |
GAUGE GP-PRESSURE (FUEL)
|
1 | 1463 |
| 4W-0508 |
INDICATOR AS-DIFF PRESSURE (FUEL FILTER)
|
1 | 1463 |
| 3N-5988 |
FILM-IDENTIFICATION (FUEL PRESSURE)
|
1 | 1463 |
| 3N-5989 |
FILM-INFORMATION (OIL FILTER PRESSURE DIFF)
|
1 | 1463 |
| 3N-4427 |
SCREW (10-32X1/2-IN)
|
12 | 1463 |
| 2W-9217 |
FILM-IDENTIFICATION (FUEL FILTER PRESSURE DIFF)
|
1 | 1463 |
| 4W-0506 |
GAUGE GP-PRESSURE (ENGINE OIL)
|
1 | 1463 |
| 4W-0507 |
GAUGE GP-VACUUM (AIR PRESSURE RESTRICTION) (EACH INCLUDES)
|
2 | 1463 |
| 7C-4065 |
PLATE-IDENTIFICATION (AIR RESTRICTION RIGHT)
|
1 | 1463 |
| 2W-7811 |
FILM-IDENTIFICATION (ENGINE OIL TEMPERATURE)
|
1 | 1463 |
| 7C-4066 |
PLATE-IDENTIFICATION (AIR RESTRICTION LEFT)
|
1 | 1463 |
| 3N-8269 |
STRIP
|
2 | 1463 |
| 3N-5986 |
FILM-IDENTIFICATION (ENGINE OIL PRESSURE)
|
1 | 1463 |
