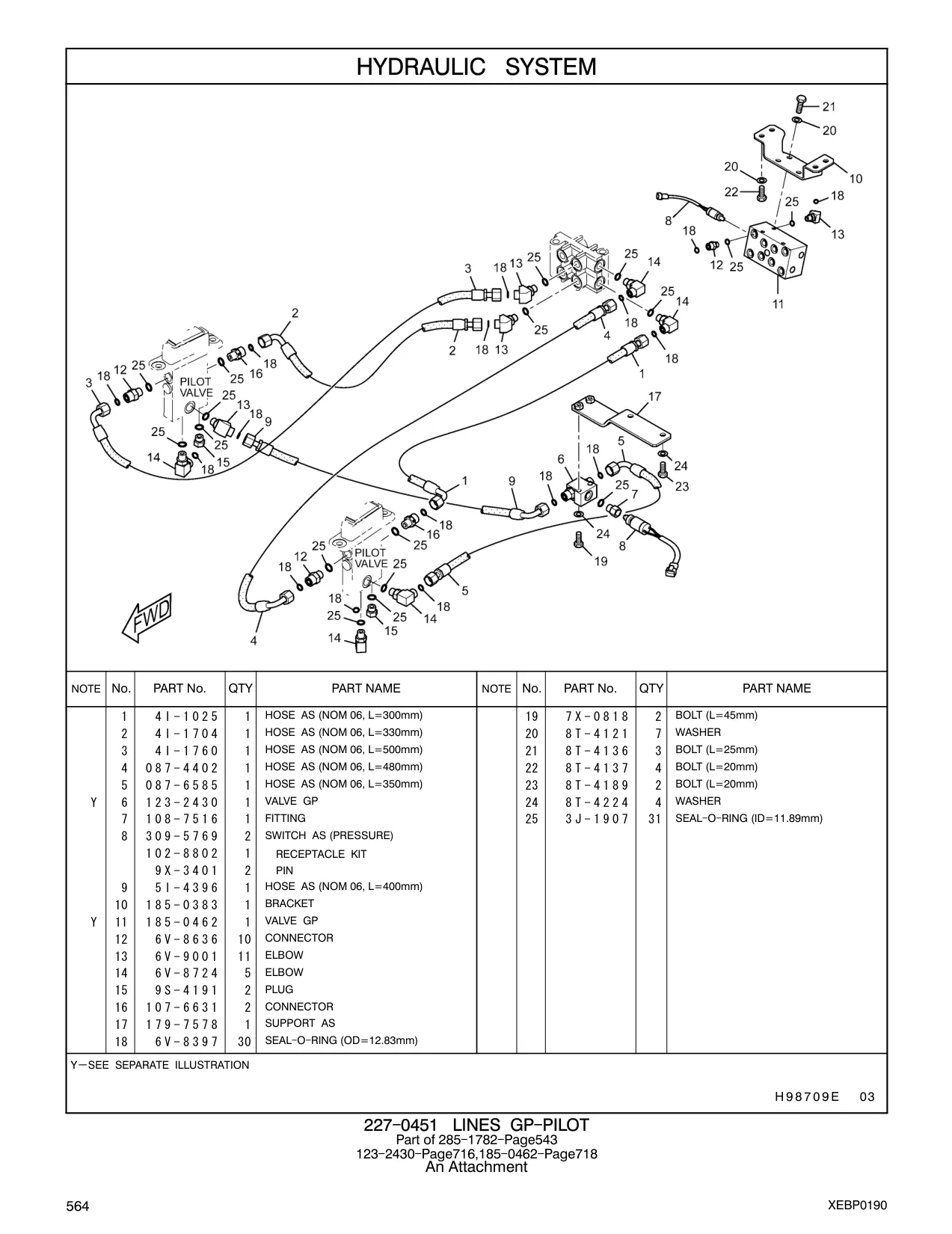

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4I-1025 |
HOSE AS (NOM 06, L=300mm)
|
1 | 573 |
| 7X-0818 |
BOLT (L=45mm)
|
2 | 573 |
| 4I-1704 |
HOSE AS (NOM 06, L=330mm)
|
1 | 573 |
| 8T-4121 |
WASHER
|
7 | 573 |
| 4I-1760 |
HOSE AS (NOM 06, L=500mm)
|
1 | 573 |
| 8T-4136 |
BOLT (L=25mm)
|
3 | 573 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
1 | 573 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 573 |
| 087-6585 |
HOSE AS (NOM 06, L=350mm)
|
1 | 573 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 573 |
| 123-2430 |
VALVE GP
|
1 | 573 |
| 8T-4224 |
WASHER
|
4 | 573 |
| 108-7516 |
FITTING
|
1 | 573 |
| 309-5769 |
SWITCH AS (PRESSURE)
|
2 | 573 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 573 |
| 9X-3401 |
PIN
|
2 | 573 |
| 5I-4396 |
HOSE AS (NOM 06, L=400mm)
|
1 | 573 |
| 185-0383 |
BRACKET
|
1 | 573 |
| 185-0462 |
VALVE GP
|
1 | 573 |
| 6V-8636 |
CONNECTOR
|
10 | 573 |
| 6V-9001 |
ELBOW
|
11 | 573 |
| 6V-8724 |
ELBOW
|
5 | 573 |
| 9S-4191 |
PLUG
|
2 | 573 |
| 107-6631 |
CONNECTOR
|
2 | 573 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
30 | 573 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm) H 9 8 7 0 9 E 03
|
31 | 573 |
