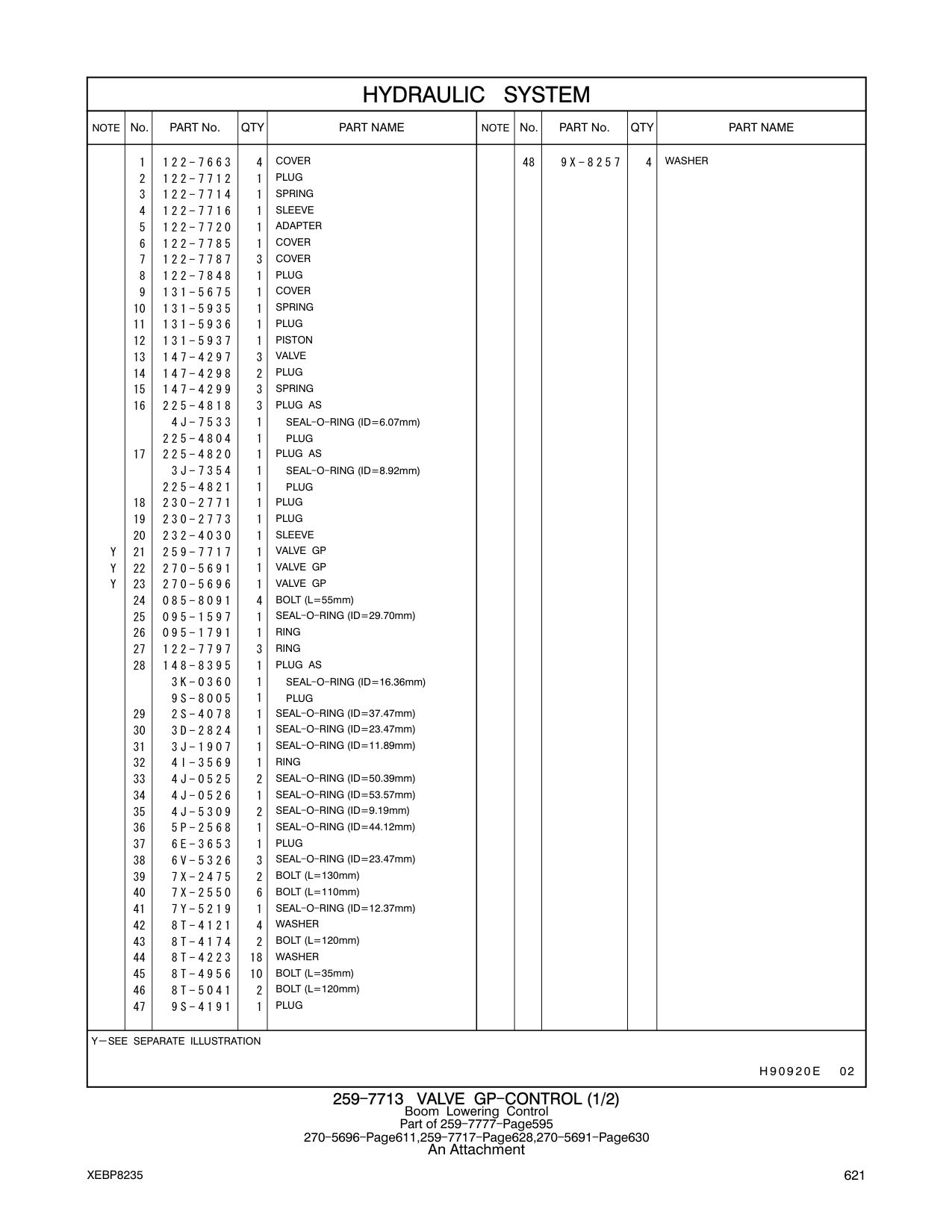

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 259-7777 |
259-7777
|
1 | 639 |
| 270-5696 |
270-5696
|
1 | 639 |
| 122-7663 |
COVER
|
4 | 640 |
| 122-7712 |
PLUG
|
1 | 640 |
| 122-7714 |
SPRING
|
1 | 640 |
| 122-7716 |
SLEEVE
|
1 | 640 |
| 122-7720 |
ADAPTER
|
1 | 640 |
| 122-7785 |
COVER
|
1 | 640 |
| 122-7787 |
COVER
|
3 | 640 |
| 122-7848 |
PLUG
|
1 | 640 |
| 131-5675 |
COVER
|
1 | 640 |
| 131-5935 |
SPRING
|
1 | 640 |
| 131-5936 |
PLUG
|
1 | 640 |
| 131-5937 |
PISTON
|
1 | 640 |
| 147-4297 |
VALVE
|
3 | 640 |
| 147-4298 |
PLUG
|
2 | 640 |
| 147-4299 |
SPRING
|
3 | 640 |
| 225-4818 |
PLUG AS
|
3 | 640 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
1 | 640 |
| 225-4804 |
PLUG
|
1 | 640 |
| 225-4820 |
PLUG AS
|
1 | 640 |
| 3J-7354 |
SEAL - O - RING (ID=8.92mm)
|
1 | 640 |
| 225-4821 |
PLUG
|
1 | 640 |
| 230-2771 |
PLUG
|
1 | 640 |
| 230-2773 |
PLUG
|
1 | 640 |
| 232-4030 |
SLEEVE
|
1 | 640 |
| 259-7717 |
VALVE GP
|
1 | 640 |
| 270-5696 |
VALVE GP
|
1 | 640 |
| 085-8091 |
BOLT (L=55mm)
|
4 | 640 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
1 | 640 |
| 095-1791 |
RING
|
1 | 640 |
| 122-7797 |
RING
|
3 | 640 |
| 148-8395 |
PLUG AS
|
1 | 640 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 640 |
| 9S-8005 |
PLUG
|
1 | 640 |
| 2S-4078 |
SEAL - O - RING (ID=37.47mm)
|
1 | 640 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
1 | 640 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
1 | 640 |
| 4I-3569 |
RING
|
1 | 640 |
| 4J-0525 |
SEAL - O - RING (ID=50.39mm)
|
2 | 640 |
| 4J-0526 |
SEAL - O - RING (ID=53.57mm)
|
1 | 640 |
| 4J-5309 |
SEAL - O - RING (ID=9.19mm)
|
2 | 640 |
| 5P-2568 |
SEAL - O - RING (ID=44.12mm)
|
1 | 640 |
| 6E-3653 |
PLUG
|
1 | 640 |
| 6V-5326 |
SEAL - O - RING (ID=23.47mm)
|
3 | 640 |
| 7X-2475 |
BOLT (L=130mm)
|
2 | 640 |
| 7X-2550 |
BOLT (L=110mm)
|
6 | 640 |
| 7Y-5219 |
SEAL - O - RING (ID=12.37mm)
|
1 | 640 |
| 8T-4121 |
WASHER
|
4 | 640 |
| 8T-4174 |
BOLT (L=120mm)
|
2 | 640 |
