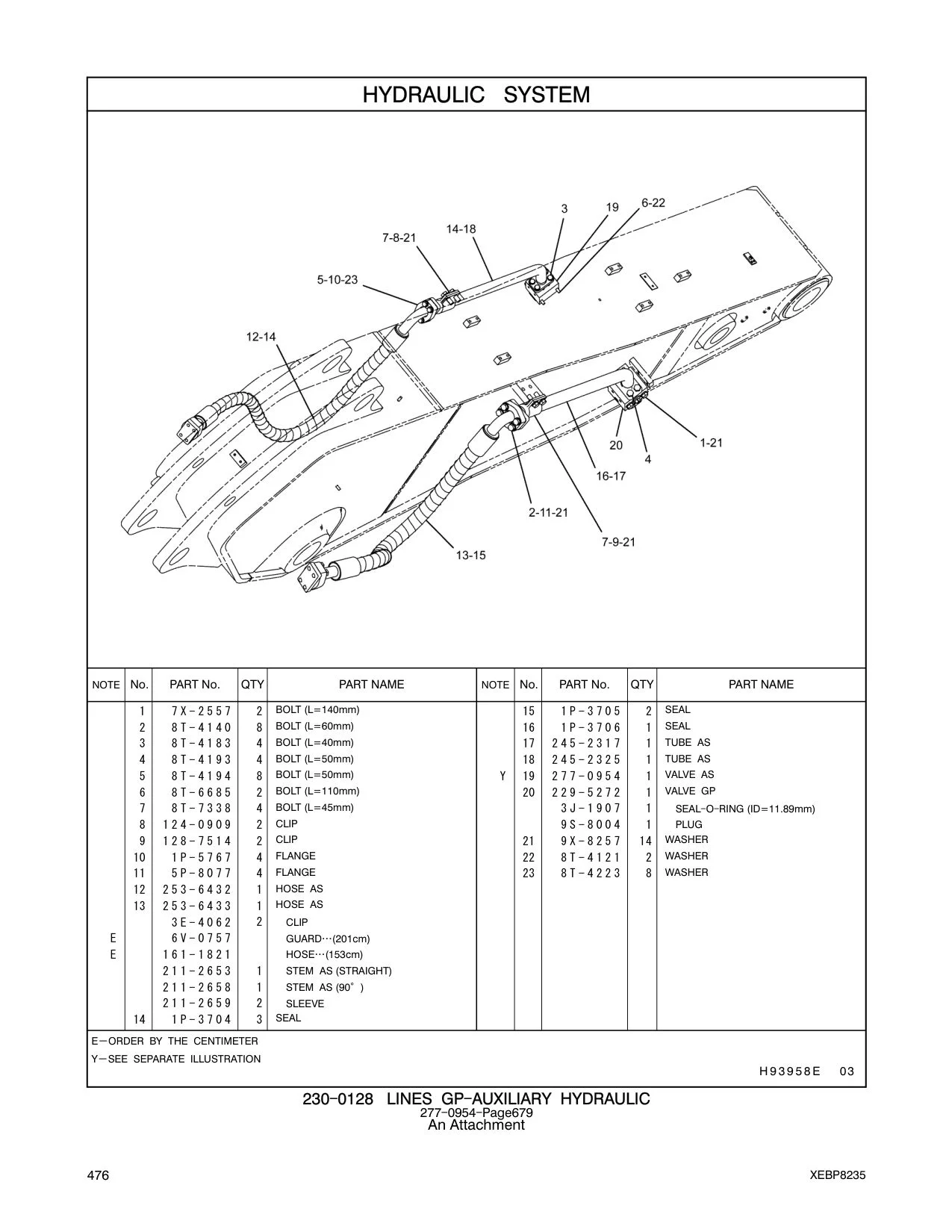

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 7X-2557 |
BOLT (L=140mm)
|
2 | 495 |
| 1P-3705 |
SEAL
|
2 | 495 |
| 8T-4140 |
BOLT (L=60mm)
|
8 | 495 |
| 1P-3706 |
SEAL
|
1 | 495 |
| 8T-4183 |
BOLT (L=40mm)
|
4 | 495 |
| 245-2317 |
TUBE AS
|
1 | 495 |
| 8T-4193 |
BOLT (L=50mm)
|
4 | 495 |
| 8T-4194 |
BOLT (L=50mm)
|
8 | 495 |
| 277-0954 |
VALVE AS
|
1 | 495 |
| 8T-6685 |
BOLT (L=110mm)
|
2 | 495 |
| 229-5272 |
VALVE GP
|
1 | 495 |
| 8T-7338 |
BOLT (L=45mm)
|
4 | 495 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
1 | 495 |
| 124-0909 |
CLIP
|
2 | 495 |
| 9S-8004 |
PLUG
|
1 | 495 |
| 128-7514 |
CLIP
|
2 | 495 |
| 9X-8257 |
WASHER
|
14 | 495 |
| 1P-5767 |
FLANGE
|
4 | 495 |
| 8T-4121 |
WASHER
|
2 | 495 |
| 5P-8077 |
FLANGE
|
4 | 495 |
| 253-6432 |
HOSE AS
|
1 | 495 |
| 253-6433 |
HOSE AS
|
1 | 495 |
| 3E-4062 |
CLIP
|
2 | 495 |
| 6V-0757 |
GUARD (201cm)
|
1 | 495 |
| 161-1821 |
HOSE (153cm)
|
1 | 495 |
| 211-2653 |
STEM AS (STRAIGHT)
|
1 | 495 |
| 211-2658 |
STEM AS (90 )
|
1 | 495 |
| 211-2659 |
SLEEVE
|
2 | 495 |
| 1P-3704 |
SEAL
|
3 | 495 |
| 8T-4223 |
WASHER H 9 3 9 5 8 E 03
|
8 | 495 |
