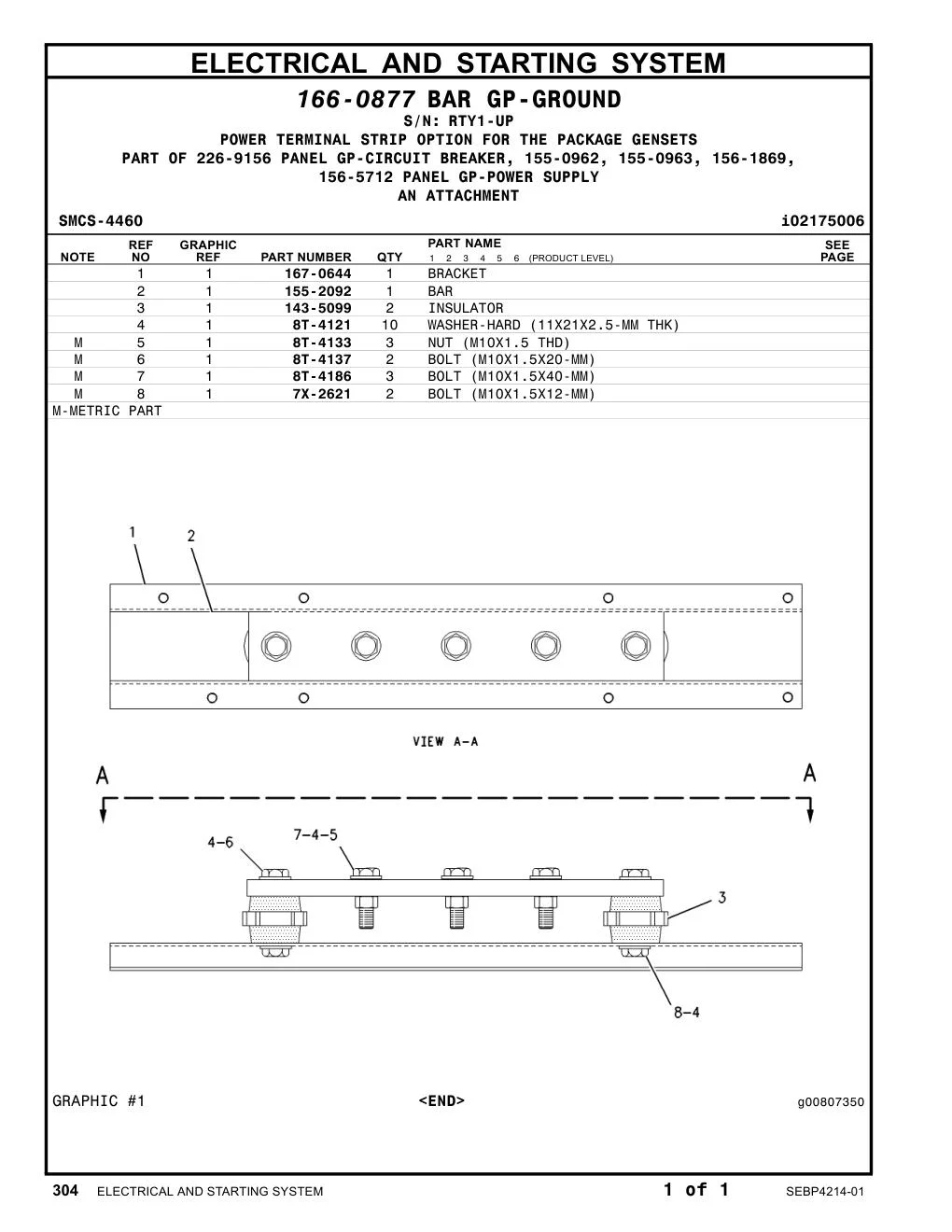

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 167-0644 |
BRACKET
|
1 | 432 |
| 155-2092 |
BAR
|
1 | 432 |
| 143-5099 |
INSULATOR
|
2 | 432 |
| 8T-4121 |
WASHER-HARD (11X21X2.5-MM THK)
|
10 | 432 |
| 8T-4133 |
NUT (M10X1.5 THD)
|
3 | 432 |
| 8T-4137 |
BOLT (M10X1.5X20-MM)
|
2 | 432 |
| 7X-2621 |
BOLT (M10X1.5X12-MM)
|
2 | 432 |
| 154-1734 |
PANEL AS
|
1 | 678 |
| 186-4278 |
INSERT-THREADED
|
2 | 678 |
| 186-4279 |
INSERT-THREADED
|
4 | 678 |
| 245-7384 |
DUCT (WIRING) (260-MM EACH)
|
1 | 678 |
| 145-4114 |
SCREW (NO 8X0.5-IN)
|
7 | 678 |
| 235-0453 |
TERMINAL
|
17 | 678 |
| 234-9423 |
TERMINAL
|
2 | 678 |
| 235-1130 |
COVER-END
|
1 | 678 |
| 143-8789 |
BLOCK-TERMINAL
|
3 | 678 |
| 245-7384 |
DUCT (WIRING) (330-MM)
|
1 | 678 |
| 154-1778 |
PANEL AS
|
1 | 679 |
| 147-1960 |
RAIL
|
1 | 679 |
| 245-7384 |
DUCT (WIRING) (265-MM)
|
1 | 679 |
| 145-4114 |
SCREW (NO 8X0.5-IN)
|
8 | 679 |
| 235-0453 |
TERMINAL
|
22 | 679 |
| 234-9423 |
TERMINAL
|
2 | 679 |
| 235-1130 |
COVER-END
|
2 | 679 |
| 234-9425 |
LINK (TERMINAL)
|
3 | 679 |
| 143-8789 |
BLOCK-TERMINAL
|
3 | 679 |
| 143-4479 |
SOCKET-RELAY
|
1 | 679 |
| 143-4478 |
RELAY (24-VOLT, 11-PIN)
|
1 | 679 |
| 245-7384 |
DUCT (WIRING) (220-MM)
|
1 | 679 |
| 245-7384 |
DUCT (WIRING) (215-MM)
|
1 | 679 |
| 245-7384 |
DUCT (WIRING) (240-MM)
|
1 | 679 |
