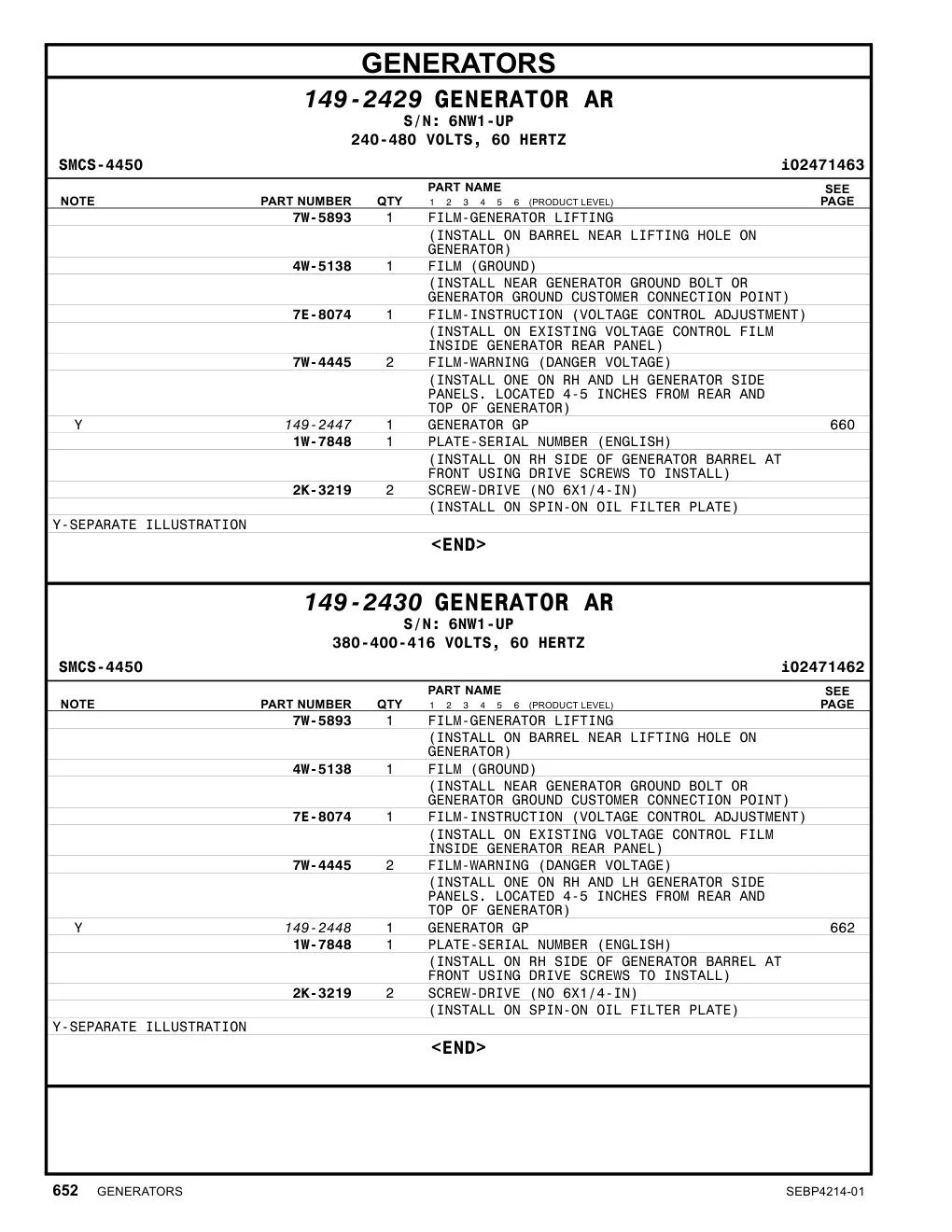

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 7W-5893 |
FILM-GENERATOR LIFTING (INSTALL ON BARREL NEAR LIFTING HOLE ON GENERATOR)
|
1 | 780 |
| 4W-5138 |
FILM (GROUND) (INSTALL NEAR GENERATOR GROUND BOLT OR GENERATOR GROUND CUSTOMER CONNECTION POINT)
|
1 | 780 |
| 7W-4445 |
FILM-WARNING (DANGER VOLTAGE) (INSTALL ONE ON RH AND LH GENERATOR SIDE PANELS. LOCATED 4-5 INCHES FROM REAR AND TOP OF GENERATOR)
|
2 | 780 |
| 149-2447 |
GENERATOR GP
|
1 | 780 |
| 1W-7848 |
PLATE-SERIAL NUMBER (ENGLISH) (INSTALL ON RH SIDE OF GENERATOR BARREL AT FRONT USING DRIVE SCREWS TO INSTALL)
|
1 | 780 |
| 2K-3219 |
SCREW-DRIVE (NO 6X1/4-IN) (INSTALL ON SPIN-ON OIL FILTER PLATE)
|
2 | 780 |
| 153-3169 |
STATOR AS
|
1 | 788 |
| 153-3187 |
ROTOR AS
|
1 | 788 |
| 2N-2030 |
FAN-VENT
|
1 | 788 |
| 4P-1798 |
DEFLECTOR-UPPER
|
1 | 788 |
| 4P-4532 |
DEFLECTOR-LOWER
|
1 | 788 |
| 7E-9592 |
COVER-DRIP
|
1 | 788 |
| 5P-0059 |
BOLT (5/16-18X6IN)
|
4 | 788 |
| 9M-1974 |
WASHER-HARD (8.8X16X2MM THK)
|
17 | 788 |
| 5L-2087 |
SPACER (9.25X13.72X50.8MM THK)
|
4 | 788 |
| 4B-3388 |
BOLT (5/16-18X1.125 IN)
|
5 | 788 |
| 7E-3030 |
SPACER (8.3X11.9X16.1MM THK)
|
1 | 788 |
| 4P-4514 |
ROTOR-EXCITER
|
1 | 788 |
| 108-6949 |
STATOR-EXCITER
|
1 | 788 |
| 4P-1787 |
BRACKET-BEARING
|
1 | 788 |
| 108-7822 |
RETAINER
|
2 | 788 |
| 5P-2955 |
BOLT (5/16-18X2.50 IN)
|
4 | 788 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2MM THK)
|
4 | 788 |
| 1B-2713 |
BOLT (1/4-20X1.75 IN)
|
4 | 788 |
| 4P-3153 |
SPACER (20.6X77X27.8MM THK)
|
1 | 788 |
| 4P-4488 |
HEAT SINK AS
|
1 | 788 |
| 4P-1792 |
COVER AS-EXCITER
|
1 | 788 |
| 4M-5282 |
BOLT (1/4-20X1.50 IN)
|
4 | 788 |
| 108-8265 |
SCREEN AS
|
2 | 788 |
| 1B-9575 |
BOLT (5/16-18X1.75 IN)
|
4 | 788 |
| 5M-6214 |
PLUG-PIPE
|
2 | 788 |
| 108-1468 |
PLATE-COUPLING
|
1 | 788 |
| 7L-5452 |
SHIM (0.8MM THK)
|
2 | 788 |
| 9X-2119 |
BOLT-12 POINT HEAD (7/8-9X2.5IN)
|
8 | 788 |
| 5P-8249 |
WASHER-HARD (24X41.5X4MM THK)
|
8 | 788 |
| 154-7221 |
SPACER
|
4 | 788 |
| 136-1703 |
SLEEVE-SHAFT
|
1 | 788 |
| 136-1702 |
SLEEVE-SHAFT
|
1 | 788 |
