| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

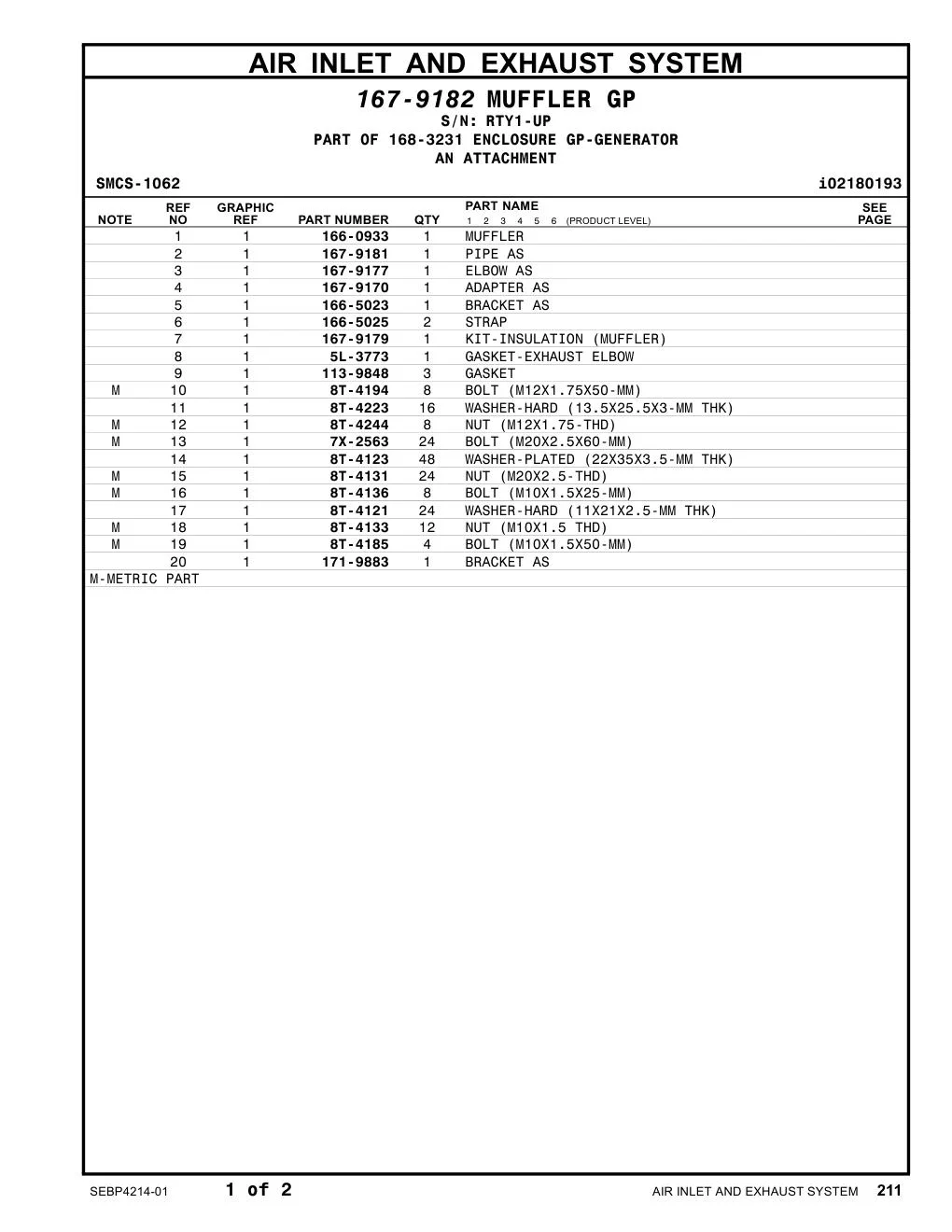

| 166-0933 |
MUFFLER
|
1 | 339 |
| 167-9181 |
PIPE AS
|
1 | 339 |
| 167-9170 |
ADAPTER AS
|
1 | 339 |
| 166-5023 |
BRACKET AS
|
1 | 339 |
| 166-5025 |
STRAP
|
2 | 339 |
| 167-9179 |
KIT-INSULATION (MUFFLER)
|
1 | 339 |
| 5L-3773 |
GASKET-EXHAUST ELBOW
|
1 | 339 |
| 113-9848 |
GASKET
|
3 | 339 |
| 8T-4194 |
BOLT (M12X1.75X50-MM)
|
8 | 339 |
| 8T-4223 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
16 | 339 |
| 8T-4244 |
NUT (M12X1.75-THD)
|
8 | 339 |
| 7X-2563 |
BOLT (M20X2.5X60-MM)
|
24 | 339 |
| 8T-4123 |
WASHER-PLATED (22X35X3.5-MM THK)
|
48 | 339 |
| 8T-4131 |
NUT (M20X2.5-THD)
|
24 | 339 |
| 8T-4136 |
BOLT (M10X1.5X25-MM)
|
8 | 339 |
| 8T-4121 |
WASHER-HARD (11X21X2.5-MM THK)
|
24 | 339 |
| 8T-4133 |
NUT (M10X1.5 THD)
|
12 | 339 |
| 8T-4185 |
BOLT (M10X1.5X50-MM)
|
4 | 339 |
| 171-9883 |
BRACKET AS
|
1 | 339 |
| 168-3218 |
ENCLOSURE GP-GENERATOR
|
1 | 715 |
| 168-3219 |
ENCLOSURE GP-GENERATOR
|
1 | 715 |
| 167-9182 |
MUFFLER GP
|
1 | 715 |
| 166-0895 |
COVER
|
2 | 715 |
| 166-0897 |
COVER
|
1 | 715 |
| 168-3224 |
GUARD
|
2 | 715 |
| 143-5072 |
SEAL-RUBBER
|
1 | 715 |
| 142-8194 |
RIVET (3/16")
|
24 | 715 |
| 8T-6936 |
SEAL (2.3M)
|
1 | 715 |
| 167-9148 |
BRACKET AS
|
6 | 715 |
| 129-3180 |
LOCKNUT (M12X1.75-THD)
|
4 | 715 |
| 8T-4136 |
BOLT (M10X1.5X25-MM)
|
70 | 715 |
| 8T-4121 |
WASHER-HARD (11X21X2.5-MM THK)
|
136 | 715 |
| 8T-4133 |
NUT (M10X1.5 THD)
|
66 | 715 |
| 8T-4189 |
BOLT (M8X1.25X20-MM)
|
10 | 715 |
| 8T-4224 |
WASHER-HARD (8.8X16X2-MM THK)
|
16 | 715 |
| 131-3540 |
LOCKNUT (M8X1.25-THD)
|
6 | 715 |
| 8T-4223 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
4 | 715 |
