| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 114-4427 |
SEAL-O-RING (19.18MM ID)
|
2 | 221 |
| 126-6875 |
TUBE AS
|
1 | 221 |
| 1A-2029 |
BOLT (3/8-16X1.125IN)
|
2 | 221 |
| 5M-2894 |
WASHER (2.5MM THK)
|
2 | 221 |
| 5P-7530 |
SEAL-O-RING (28.24MM ID)
|
1 | 221 |
| 2A-4639 |
BOLT (3/8-16X1.625IN)
|
2 | 221 |
| 6J-2245 |
SEAL-O-RING (17.12MM ID)
|
1 | 221 |
| 130-5371 |
TUBE AS
|
1 | 221 |
| 6M-7476 |
ELBOW
|
1 | 221 |

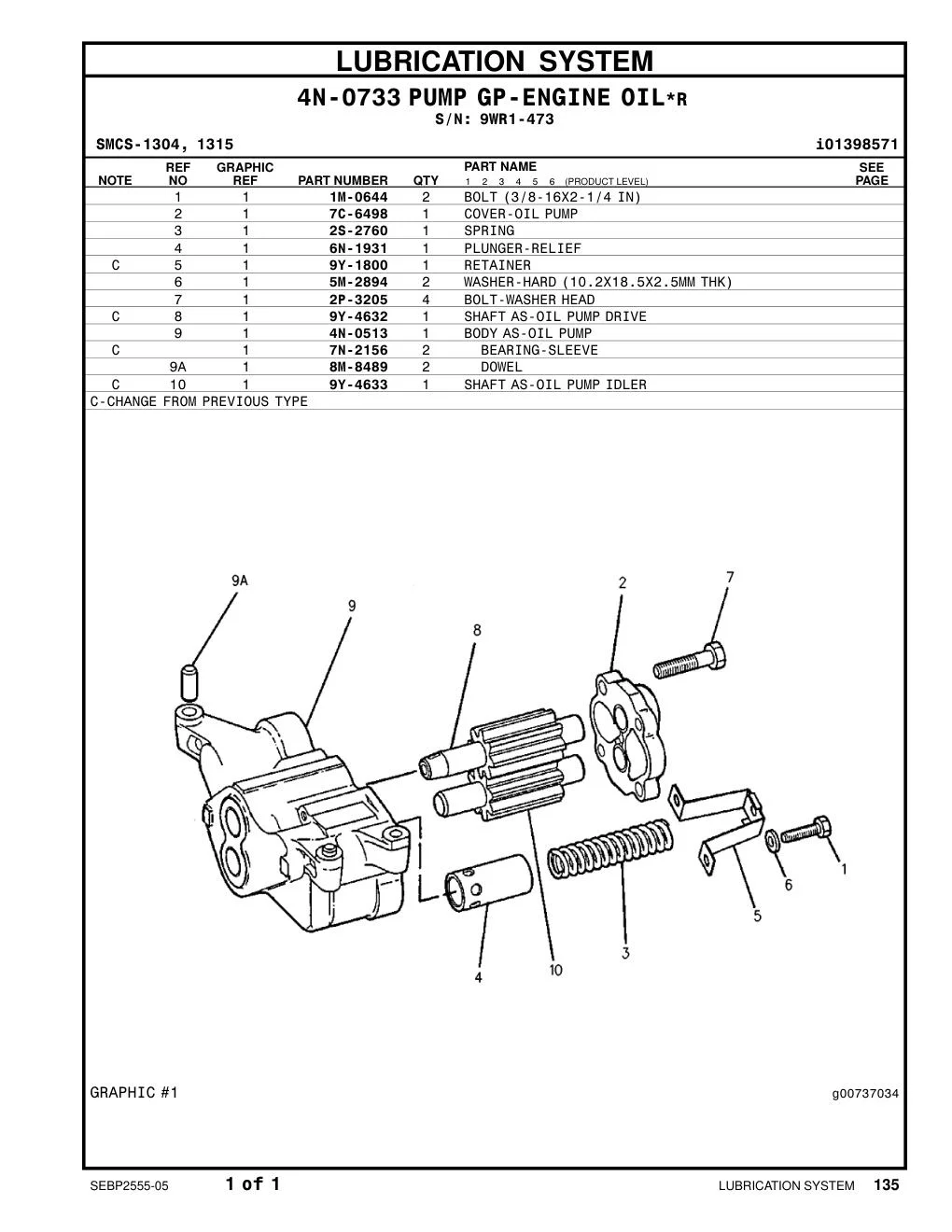

| 1M-0644 |
BOLT (3/8-16X2-1/4 IN)
|
2 | 222 |
| 7C-6498 |
COVER-OIL PUMP
|
1 | 222 |
| 2S-2760 |
SPRING
|
1 | 222 |
| 6N-1931 |
PLUNGER-RELIEF
|
1 | 222 |
| 9Y-1800 |
RETAINER
|
1 | 222 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5MM THK)
|
2 | 222 |
| 2P-3205 |
BOLT-WASHER HEAD
|
4 | 222 |
| 9Y-4632 |
SHAFT AS-OIL PUMP DRIVE
|
1 | 222 |
| 4N-0513 |
BODY AS-OIL PUMP
|
1 | 222 |
| 7N-2156 |
BEARING-SLEEVE
|
2 | 222 |
| 8M-8489 |
DOWEL
|
2 | 222 |
| 1M-0644 |
BOLT (3/8-16X2-1/4 IN)
|
2 | 223 |
| 5M-2894 |
WASHER (2.5MM THK)
|
2 | 223 |
| 9Y-1792 |
RETAINER
|
1 | 223 |
| 2S-2760 |
SPRING
|
1 | 223 |
| 6N-1931 |
PLUNGER-RELIEF
|
1 | 223 |
| 7C-6498 |
COVER-OIL PUMP
|
1 | 223 |
| 4N-0513 |
BODY AS-OIL PUMP
|
1 | 223 |
| 7N-2156 |
BEARING-SLEEVE (27.013MM OD)
|
2 | 223 |
| 8M-8489 |
DOWEL (12.54MM DIA)
|
2 | 223 |
| 2P-3205 |
BOLT-WASHER HEAD
|
4 | 223 |
| 9Y-4632 |
SHAFT AS-OIL PUMP DRIVE
|
1 | 223 |
