| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 8C-3644 |
STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 421 |
| 7T-0794 |
STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 421 |
| 9X-4452 |
STARTING MOTOR GP-ELECTRIC
|
1 | 421 |
| 5S-7349 |
BOLT (1/4-20X0.5IN)
|
4 | 423 |
| 7L-2894 |
GASKET
|
1 | 423 |
| 2H-3429 |
RING-RETAINING
|
1 | 423 |
| 4B-2049 |
NUT (10-32 THD)
|
2 | 423 |
| 8F-1434 |
LOCKWASHER (5MM ID)
|
2 | 423 |
| 7T-3271 |
CONNECTOR
|
1 | 423 |
| 8T-4205 |
WASHER-HARD (2MM THK)
|
4 | 423 |
| 036-9823 |
BOLT
|
5 | 423 |
| 8T-8568 |
COIL AS-FIELD
|
1 | 423 |
| 3F-0379 |
SCREW-POLE SHOE
|
8 | 423 |
| 7T-3275 |
ARMATURE AS
|
1 | 423 |
| 8H-1141 |
SHOE-POLE
|
4 | 423 |
| 7T-3454 |
INSULATOR
|
1 | 423 |
| 7T-3279 |
HOUSING AS
|
1 | 423 |
| 8T-8570 |
HOLDER AS-BRUSH
|
1 | 423 |
| 3T-3422 |
WIRE AS
|
1 | 423 |
| 8T-8566 |
TERMINAL AS
|
1 | 423 |
| 6N-3826 |
DRIVE AS-MOTOR
|
1 | 423 |
| 6V-8188 |
NUT (1/2-13 THD)
|
4 | 423 |
| 7X-0562 |
WASHER-HARD (0.8MM THK)
|
4 | 423 |
| 8T-0328 |
WASHER-HARD (1MM THK)
|
2 | 423 |
| 7T-3451 |
INSULATOR-TERMINAL
|
1 | 423 |
| 8T-8569 |
INSULATOR-TERMINAL
|
1 | 423 |
| 3E-5449 |
SOLENOID AS-STARTING MOTOR (STARTER 24 VOLT)
|
1 | 423 |
| 036-9821 |
WASHER
|
1 | 423 |
| 7T-3269 |
BOOT
|
1 | 423 |
| 7T-3270 |
PLUNGER AS
|
1 | 423 |
| 9M-7609 |
SPRING
|
1 | 423 |
| 4M-1828 |
RETAINER-SPRING
|
1 | 423 |
| 4M-1827 |
RETAINER-SPRING
|
1 | 423 |
| 4M-1831 |
PLUG-LEVER HOUSING
|
1 | 423 |
| 3E-7775 |
HOUSING AS
|
1 | 423 |
| 110-5035 |
HOUSING AS
|
1 | 423 |
| 7X-3373 |
BOLT (5/16-18X.88IN) GASKET(WASHER) HOUSING SPRING BRUSH SCREW SCREW AS SEAL(O-RING) INSULATOR BUSHING LEVER AS LEVER AS NUT SEAL(O-RING) SEAL(O-RING) RETAINER GASKET BUSHING CUP(PLUG) CUP(PLUG) PLUG PLUG PLUG
|
6 | 423 |
| 8T-9885 |
KIT-BRUSH (INCLUDES PARTS MARKED J)
|
1 | 424 |
| 7T-3267 |
KIT-BUSHING (INCLUDES PARTS MARKED P)
|
1 | 424 |
| 7T-3268 |
KIT-LEVER (INCLUDES PARTS MARKED N)
|
1 | 424 |
| 8T-9884 |
KIT-INSULATOR (INCLUDES PARTS MARKED L)
|
1 | 424 |

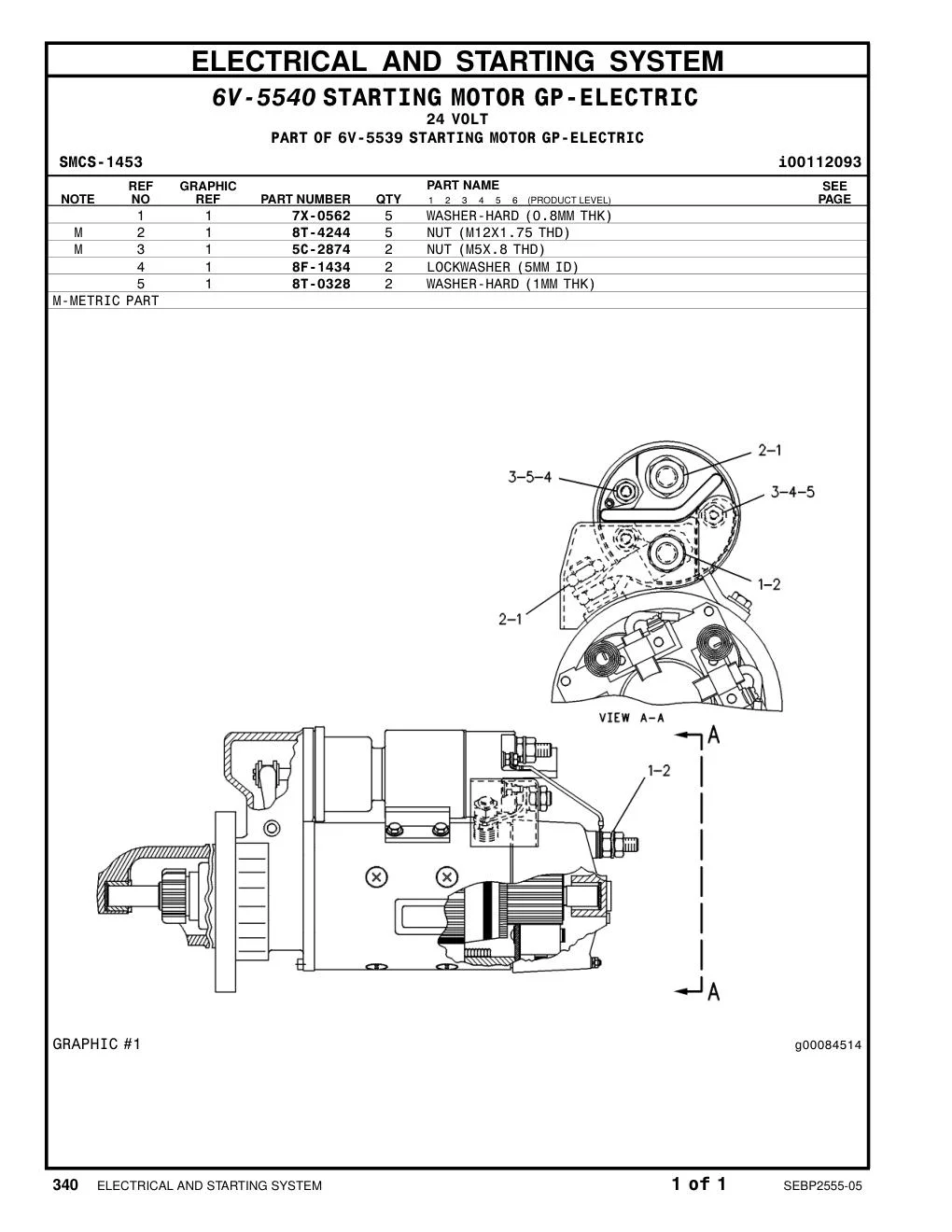

| 6V-5540 |
STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 426 |
| 6V-5582 |
STARTING MOTOR GP-ELECTRIC –OR–
|
1 | 426 |
| 106-8554 |
STARTING MOTOR GP-ELECTRIC
|
1 | 426 |
| 7X-0562 |
WASHER-HARD (0.8MM THK)
|
5 | 427 |
| 5C-2874 |
NUT (M5X.8 THD)
|
2 | 427 |
| 8F-1434 |
LOCKWASHER (5MM ID)
|
2 | 427 |
| 8T-0328 |
WASHER-HARD (1MM THK)
|
2 | 427 |
| 6V-8188 |
NUT (1/2-13 THD)
|
3 | 429 |
| 7X-0562 |
WASHER-HARD (0.8MM THK)
|
3 | 429 |
