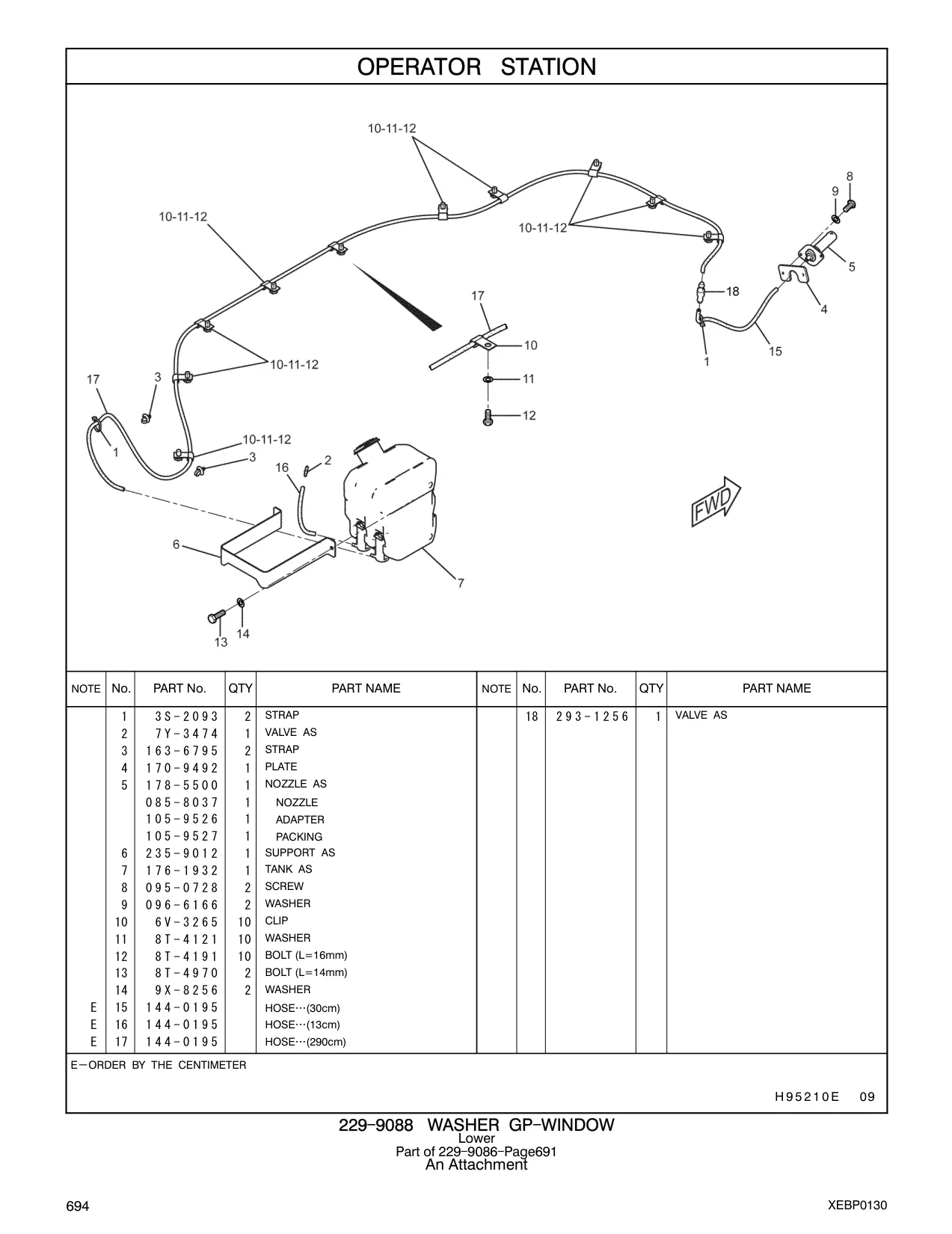

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 3S-2093 |
STRAP
|
2 | 708 |
| 7Y-3474 |
VALVE AS
|
2 | 708 |
| 163-6795 |
STRAP
|
2 | 708 |
| 170-9492 |
PLATE
|
1 | 708 |
| 178-5500 |
NOZZLE AS
|
1 | 708 |
| 085-8037 |
NOZZLE
|
1 | 708 |
| 105-9526 |
ADAPTER
|
1 | 708 |
| 105-9527 |
PACKING
|
1 | 708 |
| 235-9012 |
SUPPORT AS
|
1 | 708 |
| 176-1932 |
TANK AS
|
1 | 708 |
| 095-0728 |
SCREW
|
2 | 708 |
| 096-6166 |
WASHER
|
2 | 708 |
| 6V-3265 |
CLIP
|
10 | 708 |
| 8T-4121 |
WASHER
|
10 | 708 |
| 8T-4191 |
BOLT (L=16mm)
|
10 | 708 |
| 8T-4970 |
BOLT (L=14mm)
|
2 | 708 |
| 9X-8256 |
WASHER
|
2 | 708 |
| 144-0195 |
HOSE (30cm)
|
1 | 708 |
| 144-0195 |
HOSE (70cm)
|
1 | 708 |
| 144-0195 |
HOSE (290cm)
|
1 | 708 |
| 3S-2093 |
STRAP
|
2 | 699 |
| 7Y-3474 |
VALVE AS
|
1 | 699 |
| 163-6795 |
STRAP
|
2 | 699 |
| 170-9492 |
PLATE
|
1 | 699 |
| 178-5500 |
NOZZLE AS
|
1 | 699 |
| 085-8037 |
NOZZLE
|
1 | 699 |
| 105-9526 |
ADAPTER
|
1 | 699 |
| 105-9527 |
PACKING
|
1 | 699 |
| 235-9012 |
SUPPORT AS
|
1 | 699 |
| 176-1932 |
TANK AS
|
1 | 699 |
| 095-0728 |
SCREW
|
2 | 699 |
| 096-6166 |
WASHER
|
2 | 699 |
| 6V-3265 |
CLIP
|
10 | 699 |
| 8T-4121 |
WASHER
|
10 | 699 |
| 8T-4191 |
BOLT (L=16mm)
|
10 | 699 |
| 8T-4970 |
BOLT (L=14mm)
|
2 | 699 |
| 9X-8256 |
WASHER
|
2 | 699 |
| 144-0195 |
HOSE … (30cm)
|
1 | 699 |
| 144-0195 |
HOSE … (13cm)
|
1 | 699 |
| 144-0195 |
HOSE … (290cm)
|
1 | 699 |
