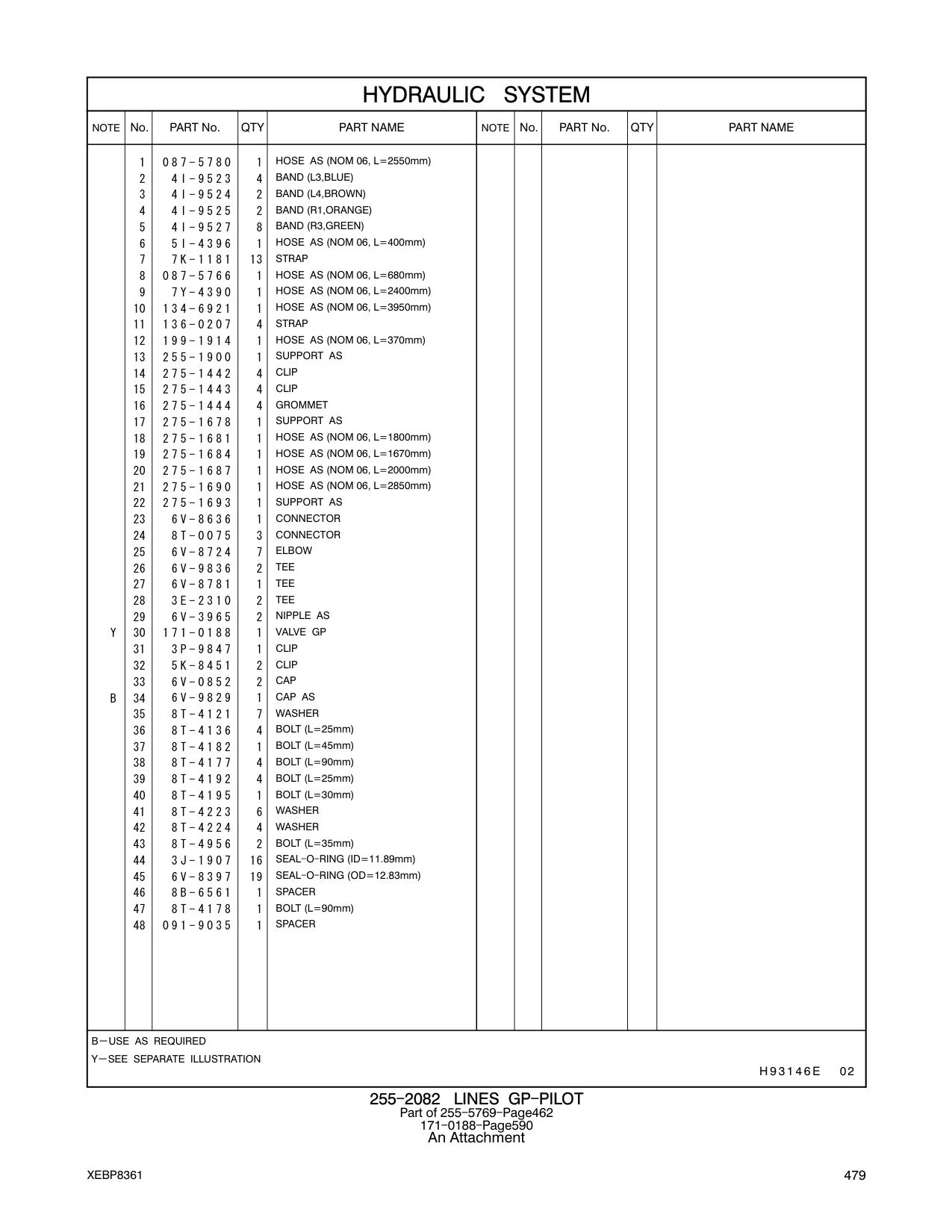

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 087-5780 |
HOSE AS (NOM 06, L=2550mm)
软管组件 |
1 | 533 |
| 4I-9523 |
BAND (L3,BLUE)
灯罩圈 |
4 | 533 |
| 4I-9524 |
BAND (L4,BROWN)
灯罩圈 |
2 | 533 |
| 4I-9525 |
BAND (R1,ORANGE)
灯罩圈 |
2 | 533 |
| 4I-9527 |
BAND (R3,GREEN)
灯罩圈 |
8 | 533 |
| 5I-4396 |
HOSE AS (NOM 06, L=400mm)
软管组件 |
1 | 533 |
| 7K-1181 |
STRAP
接地束带 |
13 | 533 |
| 087-5766 |
HOSE AS (NOM 06, L=680mm)
软管组件 |
1 | 533 |
| 7Y-4390 |
HOSE AS (NOM 06, L=2400mm)
软管组件 |
1 | 533 |
| 134-6921 |
HOSE AS (NOM 06, L=3950mm)
软管组件 |
1 | 533 |
| 136-0207 |
STRAP
接地束带 |
4 | 533 |
| 255-1900 |
SUPPORT AS
支承组件 |
1 | 533 |
| 275-1442 |
CLIP
卡箍 |
4 | 533 |
| 275-1443 |
CLIP
卡箍 |
4 | 533 |
| 275-1444 |
GROMMET
护孔环 |
4 | 533 |
| 275-1678 |
SUPPORT AS
支承组件 |
1 | 533 |
| 275-1681 |
HOSE AS (NOM 06, L=1800mm)
软管组件 |
1 | 533 |
| 275-1684 |
HOSE AS (NOM 06, L=1670mm)
软管组件 |
1 | 533 |
| 275-1687 |
HOSE AS (NOM 06, L=2000mm)
软管组件 |
1 | 533 |
| 275-1690 |
HOSE AS (NOM 06, L=2850mm)
软管组件 |
1 | 533 |
| 275-1693 |
SUPPORT AS
支承组件 |
1 | 533 |
| 6V-8636 |
CONNECTOR
接头 |
1 | 533 |
| 8T-0075 |
CONNECTOR
接头 |
3 | 533 |
| 6V-8724 |
ELBOW
弯头 |
7 | 533 |
| 6V-9836 |
TEE
O 形密封圈端口三通 |
2 | 533 |
| 6V-8781 |
TEE
O 形密封圈端口三通 |
1 | 533 |
| 3E-2310 |
TEE
O 形密封圈端口三通 |
2 | 533 |
| 6V-3965 |
NIPPLE AS
|
2 | 533 |
| 171-0188 |
VALVE GP
阀总成 |
1 | 533 |
| 3P-9847 |
CLIP
卡箍 |
1 | 533 |
| 5K-8451 |
CLIP
卡箍 |
2 | 533 |
| 6V-0852 |
CAP
盖 |
2 | 533 |
| 6V-9829 |
CAP AS
油加注口盖组件 |
1 | 533 |
| 8T-4121 |
WASHER
卡箍板 |
7 | 533 |
| 8T-4136 |
BOLT (L=25mm)
螺栓 |
4 | 533 |
| 8T-4182 |
BOLT (L=45mm)
螺栓 |
1 | 533 |
| 8T-4177 |
BOLT (L=90mm)
螺栓 |
4 | 533 |
| 8T-4192 |
BOLT (L=25mm)
螺栓 |
4 | 533 |
| 8T-4195 |
BOLT (L=30mm)
螺栓 |
1 | 533 |
| 8T-4223 |
WASHER
卡箍板 |
6 | 533 |
| 8T-4224 |
WASHER
卡箍板 |
4 | 533 |
| 8T-4956 |
BOLT (L=35mm)
螺栓 |
2 | 533 |
| 3J-1907 |
SEAL-O-RING (ID=11.89mm)
O 形密封圈 |
16 | 533 |
| 6V-8397 |
SEAL-O-RING (OD=12.83mm)
O 形密封圈 |
19 | 533 |
| 8B-6561 |
SPACER
间隔套 |
1 | 533 |
| 8T-4178 |
BOLT (L=90mm)
螺栓 |
1 | 533 |
| 091-9035 |
SPACER
间隔套 |
1 | 533 |
