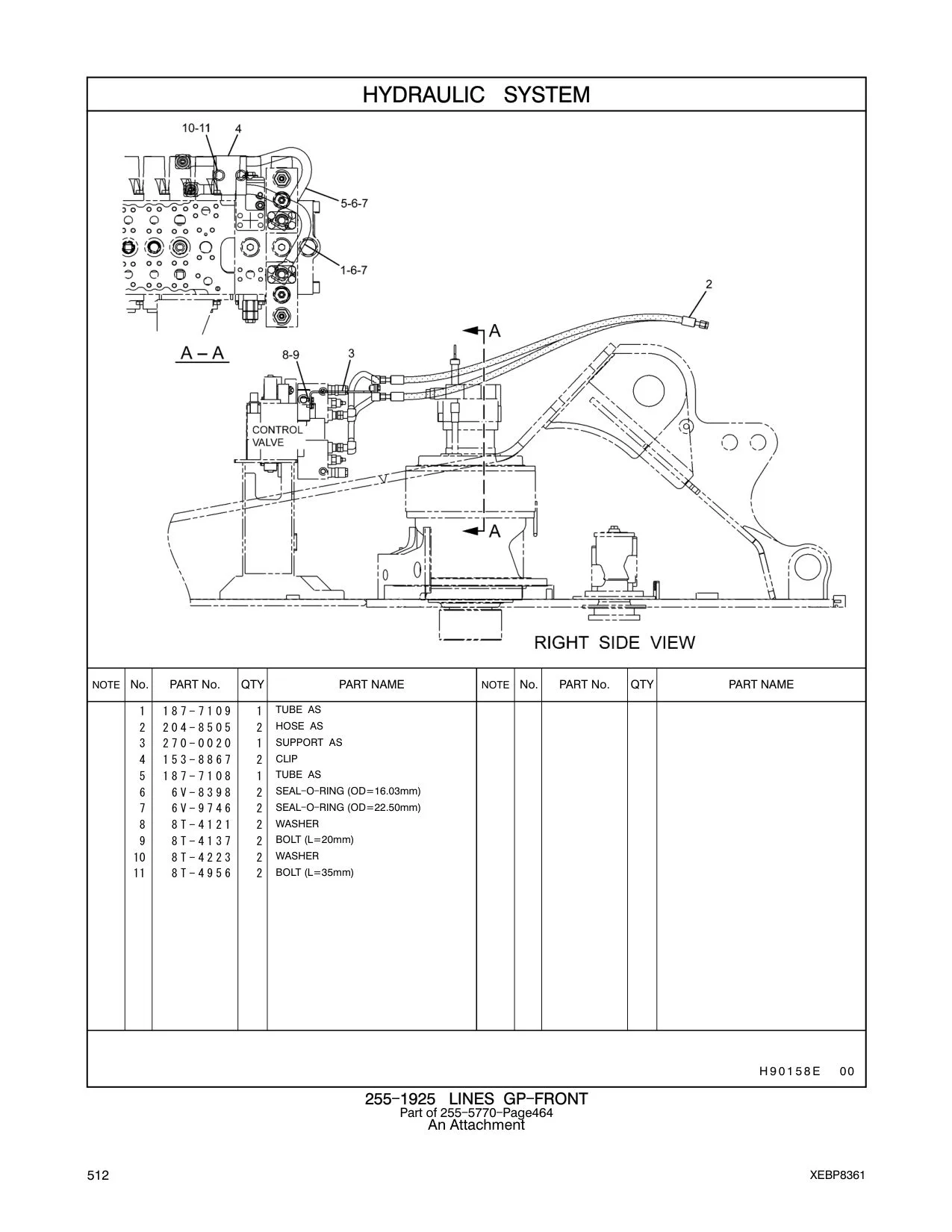

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 187-7109 |
TUBE AS
|
1 | 566 |
| 204-8505 |
HOSE AS
|
2 | 566 |
| 270-0020 |
SUPPORT AS
|
1 | 566 |
| 187-7108 |
TUBE AS
|
1 | 566 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 566 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
2 | 566 |
| 8T-4121 |
WASHER
|
2 | 566 |
| 8T-4137 |
BOLT (L=20mm)
|
2 | 566 |
| 8T-4223 |
WASHER
|
2 | 566 |
| 8T-4956 |
BOLT (L=35mm)
|
2 | 566 |
| 187-7109 |
TUBE AS
|
1 | 555 |
| 204-8505 |
HOSE AS
|
2 | 555 |
| 270-0020 |
SUPPORT AS
|
1 | 555 |
| 187-7108 |
TUBE AS
|
1 | 555 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 555 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
2 | 555 |
| 8T-4121 |
WASHER
|
2 | 555 |
| 8T-4137 |
BOLT (L=20mm)
|
2 | 555 |
| 8T-4223 |
WASHER
|
2 | 555 |
| 8T-4956 |
BOLT (L=35mm)
|
2 | 555 |
