| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 3B-8489 |
FITTING
|
3 | 926 |
| 093-0349 |
WASHER
|
2 | 926 |
| 093-0363 |
SPACER
|
1 | 926 |
| 093-1434 |
SEAL
|
2 | 926 |
| 166-1487 |
SHIM (T=2.00mm)
|
2 | 926 |
| 093-0366 |
SPACER
|
1 | 926 |
| 113-2963 |
PIN AS
|
1 | 926 |
| 166-1495 |
SEAL
|
2 | 926 |
| 166-1498 |
SEAL
|
2 | 926 |
| 8T-4780 |
BOLT (L=30mm)
|
2 | 926 |
| 5I-3299 |
PIN AS
|
1 | 926 |
| 8T-4123 |
WASHER
|
2 | 926 |
| 203-7423 |
STICK AS
|
1 | 926 |
| 7Y-3551 |
BEARING
|
2 | 926 |
| 192-8261 |
BEARING
|
2 | 926 |
| 208-1959 |
BEARING
|
2 | 926 |
| 121-1760 |
PLATE
|
2 | 926 |
| 8T-6757 |
PLUG
|
1 | 926 |

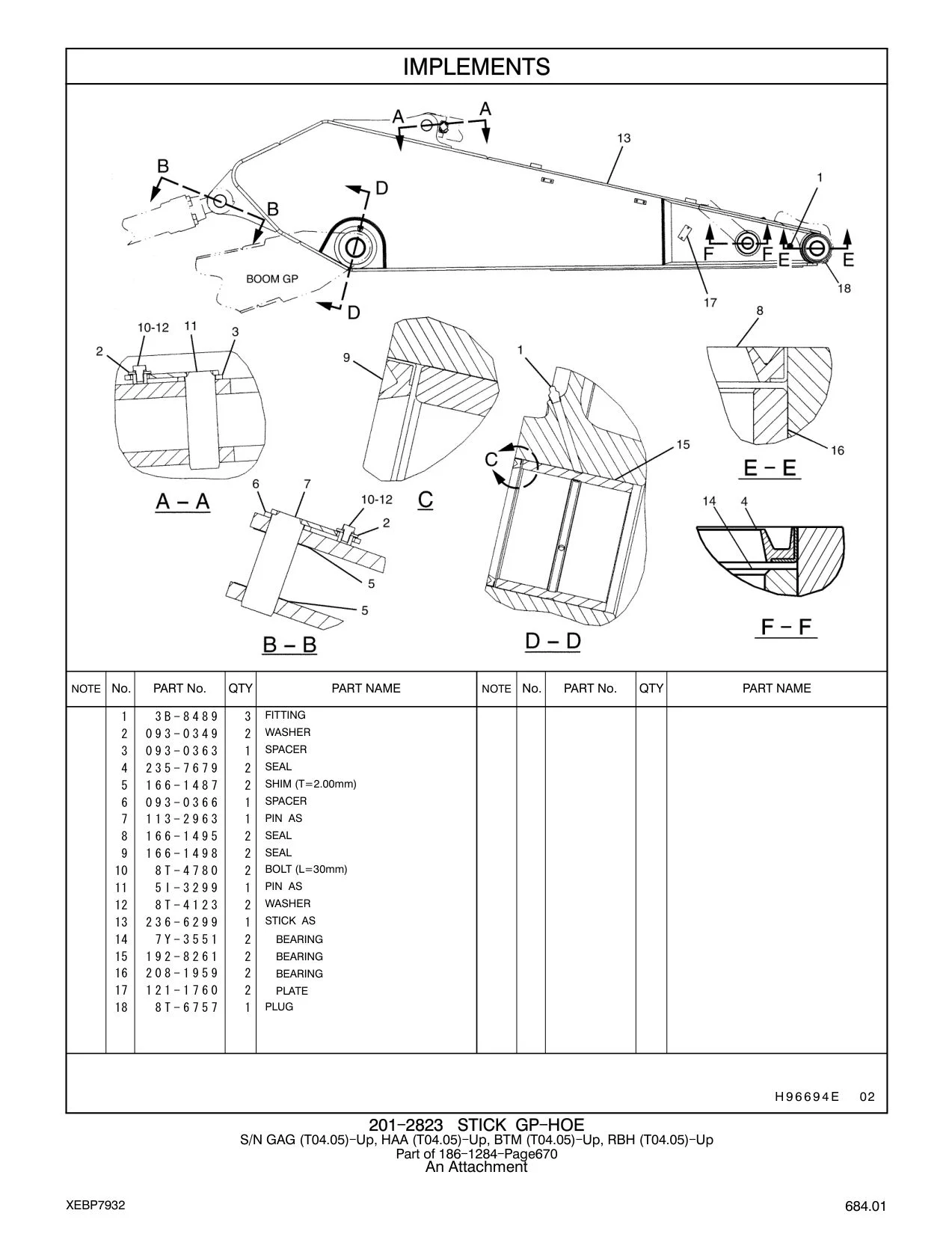

| 3B-8489 |
FITTING
|
3 | 927 |
| 093-0349 |
WASHER
|
2 | 927 |
| 093-0363 |
SPACER
|
1 | 927 |
| 235-7679 |
SEAL
|
2 | 927 |
| 166-1487 |
SHIM (T=2.00mm)
|
2 | 927 |
| 093-0366 |
SPACER
|
1 | 927 |
| 113-2963 |
PIN AS
|
1 | 927 |
| 166-1495 |
SEAL
|
2 | 927 |
| 166-1498 |
SEAL
|
2 | 927 |
| 8T-4780 |
BOLT (L=30mm)
|
2 | 927 |
| 5I-3299 |
PIN AS
|
1 | 927 |
| 8T-4123 |
WASHER
|
2 | 927 |
| 7Y-3551 |
BEARING
|
2 | 927 |
| 192-8261 |
BEARING
|
2 | 927 |
| 208-1959 |
BEARING
|
2 | 927 |
| 121-1760 |
PLATE
|
2 | 927 |
| 8T-6757 |
PLUG
|
1 | 927 |
