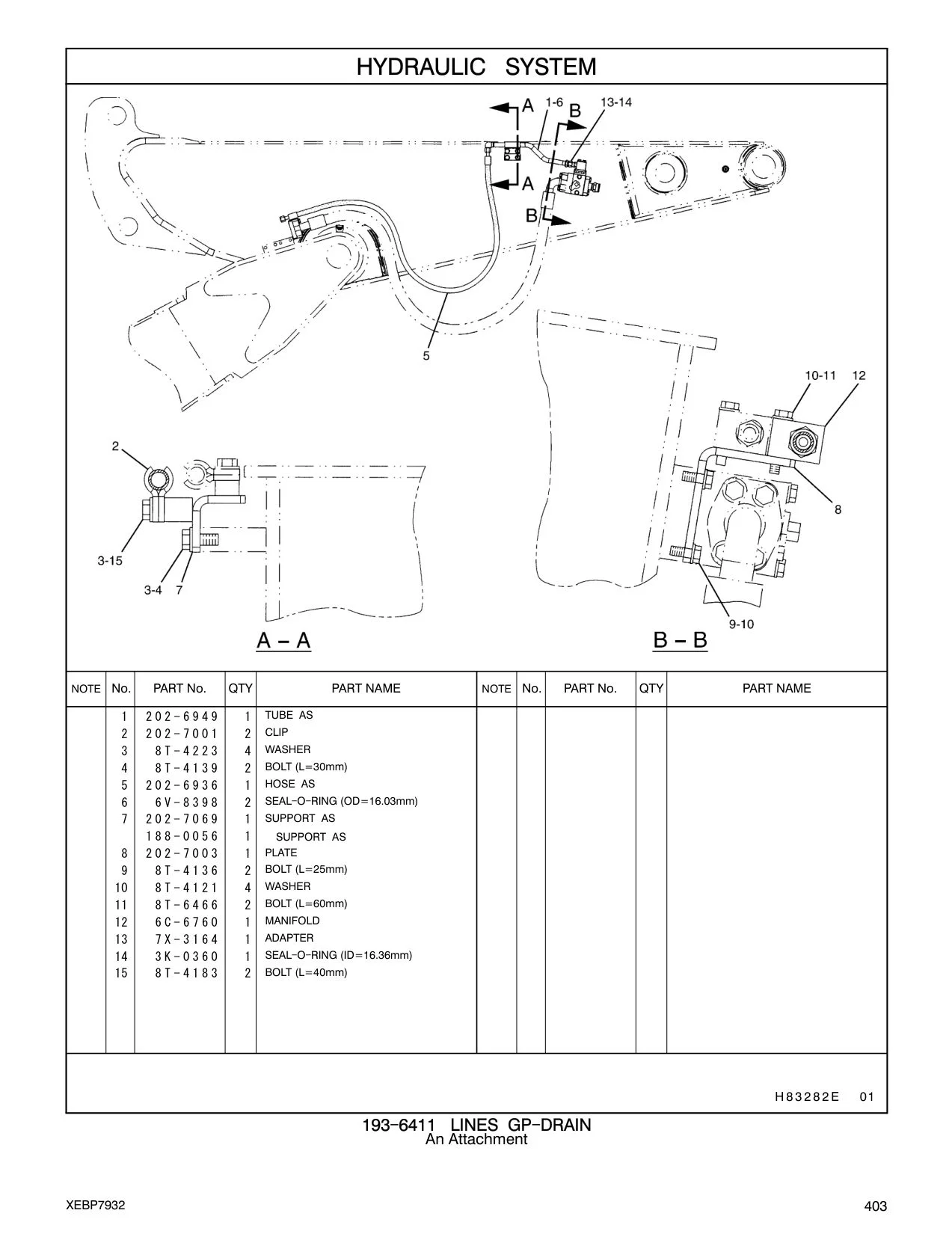

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 202-6949 |
TUBE AS
|
1 | 569 |
| 202-7001 |
CLIP
|
2 | 569 |
| 8T-4223 |
WASHER
|
4 | 569 |
| 8T-4139 |
BOLT (L=30mm)
|
2 | 569 |
| 202-6936 |
HOSE AS
|
1 | 569 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 569 |
| 188-0056 |
SUPPORT AS
|
1 | 569 |
| 202-7003 |
PLATE
|
1 | 569 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 569 |
| 8T-4121 |
WASHER
|
4 | 569 |
| 8T-6466 |
BOLT (L=60mm)
|
2 | 569 |
| 6C-6760 |
MANIFOLD
|
1 | 569 |
| 7X-3164 |
ADAPTER
|
1 | 569 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 569 |
| 8T-4183 |
BOLT (L=40mm)
|
2 | 569 |
